4 Unit Function Settings

4.1 Outdoor Unit

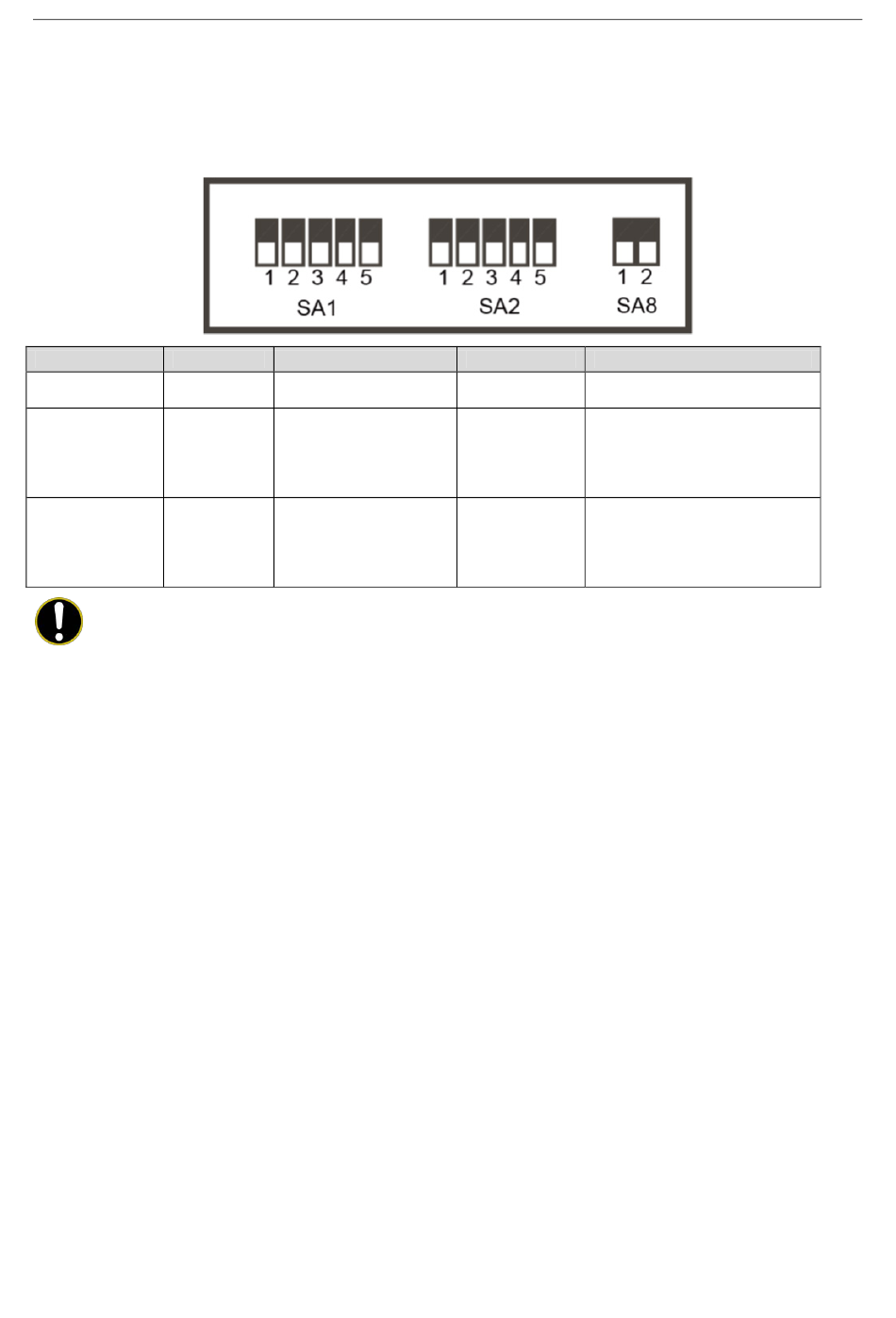

4.1.1 DIP Switch Settings
Code Name
Capacity DIP
SA1_capacity
switch
Address DIP
switch for
SA2_Addr-CC
centralized
control
Master
module
SA8_MASTER-S
setting DIP
switch
NOTES!
①
The function DIP switches must be set when the outdoor unit is powered off. A DIP switch setting
takes effect after the unit is re-powered on.
②
The master module SA8 DIP switch must be reset in the project. SA1 DIP switch cannot be
changed. The default settings of other DIP switches do not need to be changed if there are no
special requirements.
4.1.1.1 Unit Capacity DIP Switch (SA1_capacity)
This DIP switch is set by the factory before shipment, and cannot be changed. Otherwise, the
system will work abnormally and even damage the compressor.
4.1.1.2 Address DIP Switch for Centralized Control (SA2_Addr-CC)
This DIP switch indicates the address for centralized control of different refrigerating systems. It is
set to 0000× by default.
If centralized control is not required between multiple refrigerating systems, keep the default setting
of this DIP switch.
If centralized control is required between multiple refrigerating systems, set as follows:
(1) Be sure to set the DIP switch on the master unit.
(2) Setting this DIP switch on non-master units in a refrigerating system is invalid and unnecessary.
(3) Be sure to set the address DIP switch for centralized control (SA2_Addr-CC) on the master unit of a
refrigerating system to "0000x". Then, this system is the main system.
(4) Set the address DIP switch for centralized control (SA2_Addr-CC) on the master units of other
Capacity DIP switch
Meaning
Defines the rated
capacity of the unit.
Defines and
distinguishes addresses
of different systems for
centralized control of
multiple systems.
Defines the master
module.
GMV6 HR DC Inverter VRF Units Service Manual
Centralized controller
Default Setting
Depending on
the model
00000
00
44
Master/
Slave unit
Remarks
The DIP switch is set by the
factory and cannot be changed.
The code is used only for
centralized control. Otherwise,
keep the default setting. This
address can be set only on the
master unit.
Exactly one module must be
configured as the master
module in a refrigerating
system. The master module
status is set by default.
