4.2.3 Solenoid Valve
Specifications
All the magnet valves of the unit adopt the coil with unified
specification.

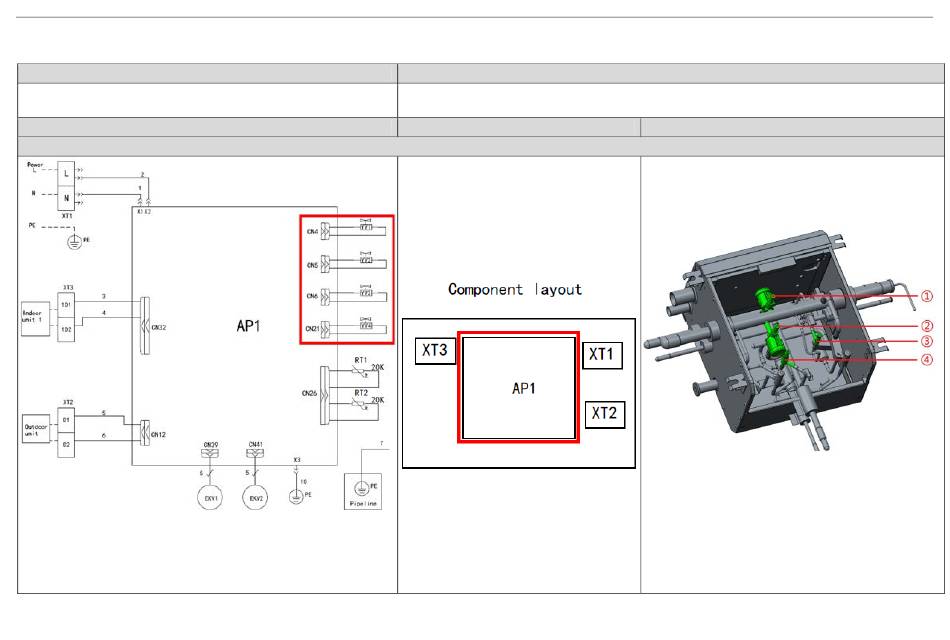

Circuit diagram
The solenoid valve is used to control the on-and-off of the pipeline. The valve of the unit is
solid closed. That is, the valve is closed when it is inactive, open when it is active.
Layout of electrical appliance box
Models: NCHS1D
299
GMV6 HR DC Inverter VRF Units Service Manual
Description
Physical position
①Heating solenoid valve
②Cooling solenoid valve
③Gas bypass valve
④Cooling balance solenoid valve
