4.3.3.1 LCD of Wired Controller

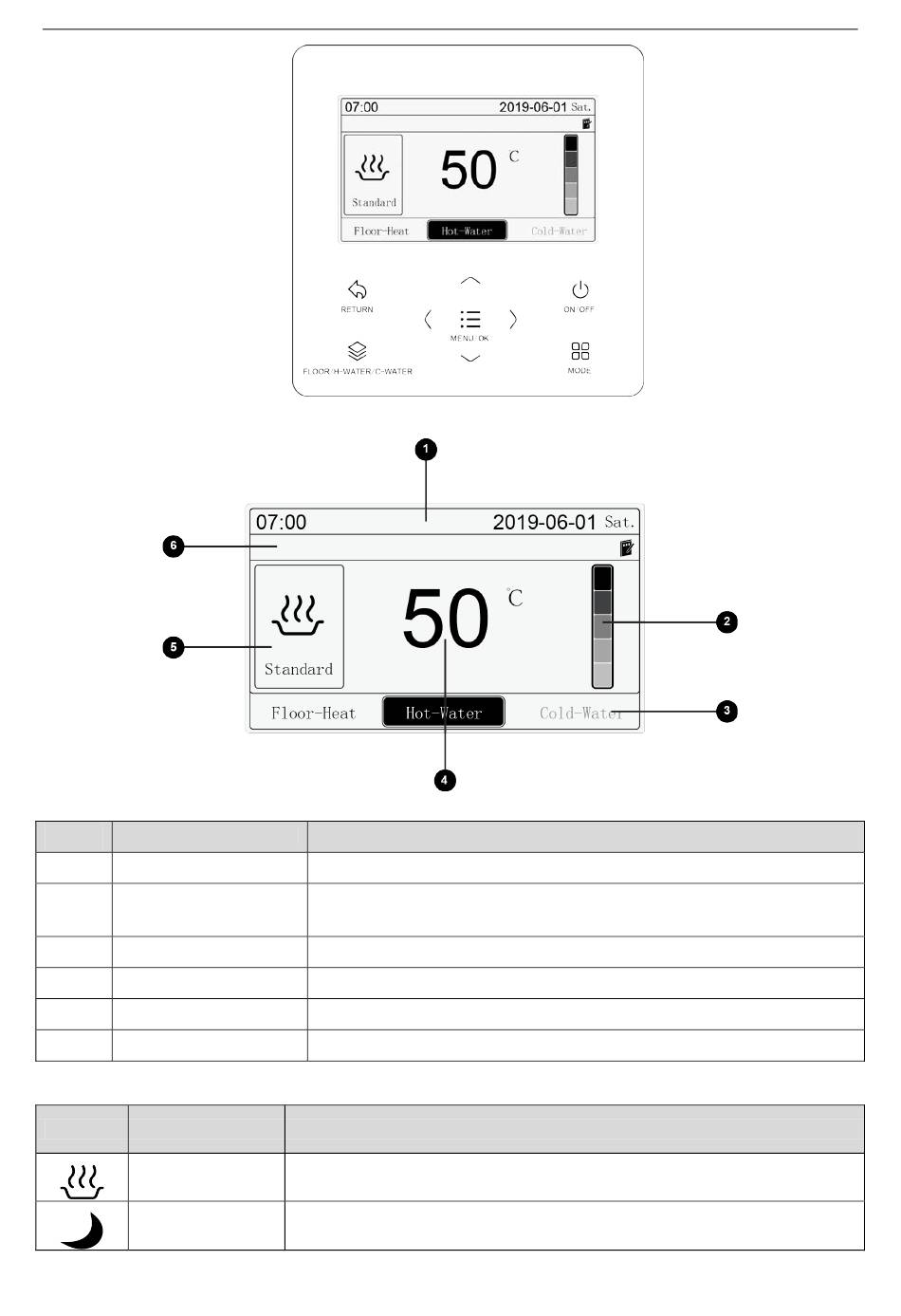

Instruction for LCD of wired controller as follows:
Name
No.
Time column
1
Available hot water
2
Interface mark
3
Temperature area
4
Mode
5
Status
6
Instruction for wired controller icon as follows：
Icon Name
Standard hot water
Night hot water
GMV6 HR DC Inverter VRF Units Service Manual
The proportion of available hot water for the current user is displayed according
to the state in the frame for available hot water; it is displayed only at the
Current interface and startup status of floor heating and hot water
Display water tank temperature, outlet water temperature or set temperature
Display floor heating or hot water mode
Display current status and function of the unit
It means the current mode is the standard hot water mode
It means the current mode is the night hot water mode
75
Instruction
Display date and time
interface for hot water
Instruction
