5.1.6 Removing and Installing Fan
Preparations
(1) Use the power circuit breaker to switch off the power of the GMV6 HR VRF system.
(2) Remove the unit's panel, top cover and upper electrical appliance cover by referring to
5.1.5 Removing and Installing Blades.
Removing procedure
(1) Disconnect the fan connection port.
(2) Remove the blades by referring to the 5.1.5 Removing and Installing Blades.
(3) Remove the bolts as shown in the figure and remove the fan.
Installation procedure
(1) Install a new fan on the motor bracket and fix the fan feet.
(2) Install the blades by referring to the 5.1.5 Removing and Installing Blades.
(3) Connect the fan according to the original wiring.
(4) Install the unit's top cover assembly and panel.
GMV6 HR DC Inverter VRF Units Service Manual

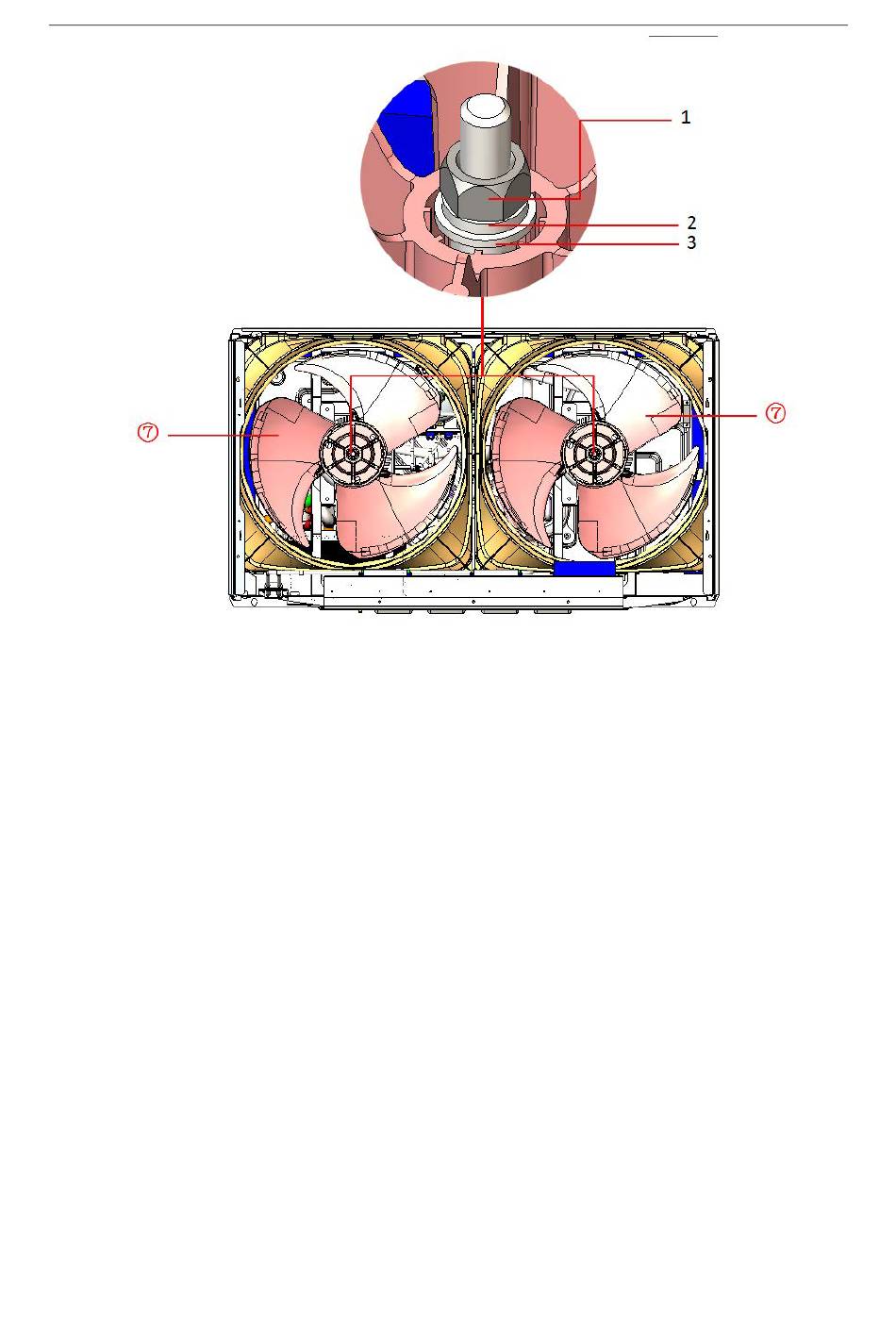

1 - nut; 2 - spring washer; 3 - flat piece; ⑦ - blade.
