4.1.6 Fans
The unit of 8HP-12HP is equipped with one fan, while the unit of 14HP-22HP is equipped with
two fans. The fans are connected to the fan drive board by a group of three power cables.

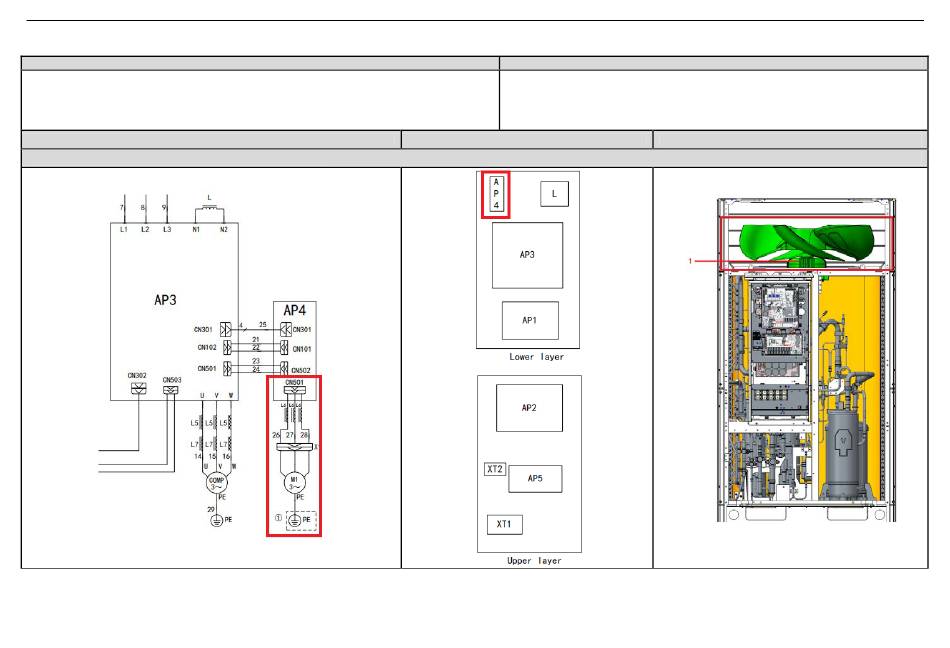

Circuit diagram
Specifications
Models: GMV-VQ224WM/C-X、GMV-VQ280WM/C-X、GMV-VQ335WM/C-X
The fans are powered by a DC inverter motor and can adjust the speed automatically
according to the environmental temperature and load, thus adapting to the demand of
the unit operation.
Layout of electrical appliance box
256
GMV6 HR DC Inverter VRF Units Service Manual
Description
Physical position
1 Fan
