02 Installing VBOX Touch V2 in Your Vehicle

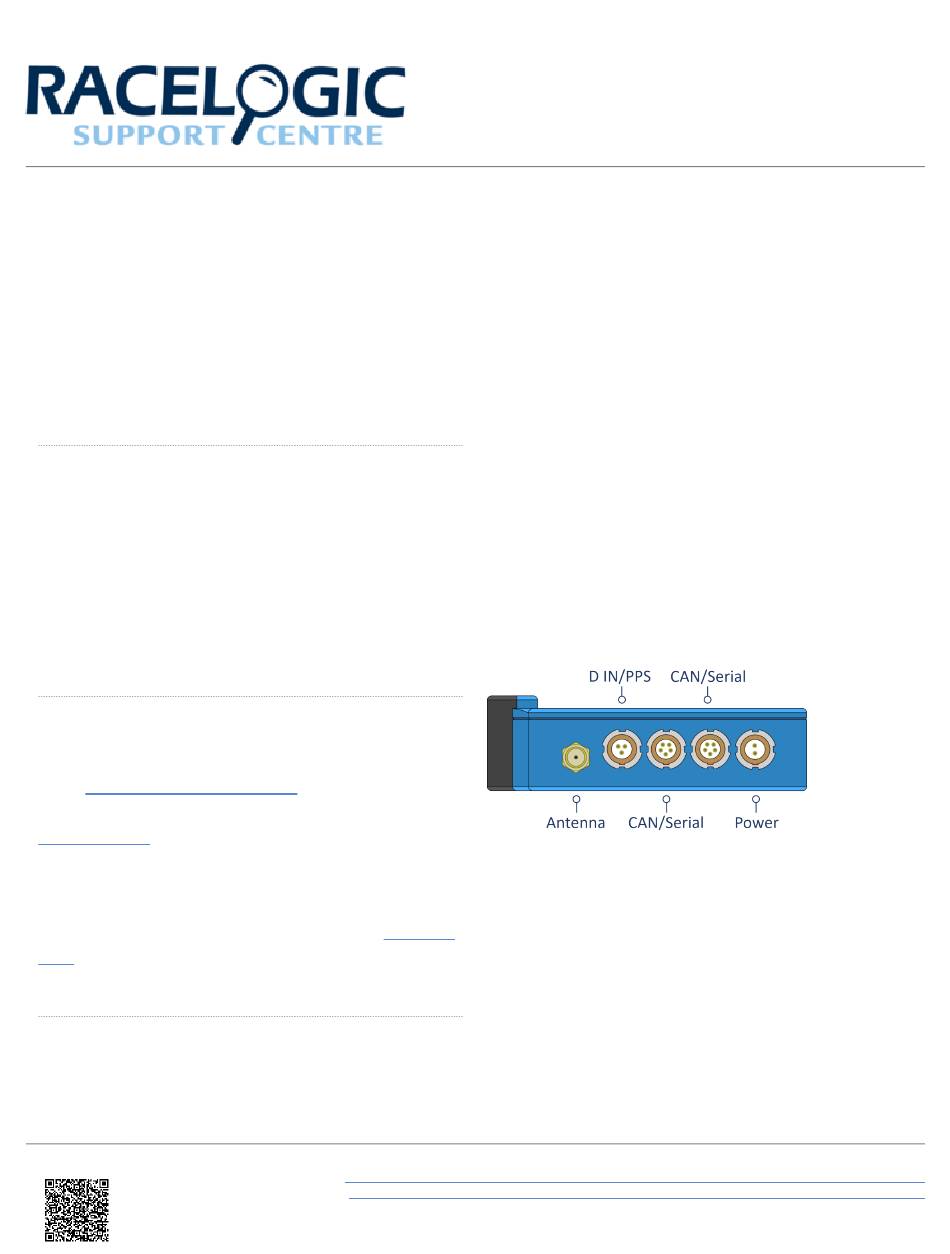

Connectors
Antenna
If you are struggling to maintain a stable satellite lock,
you can connect the supplied external antenna
(RLACS262) to the antenna socket. You should also use
the external antenna when you are doing Brake Trigger
Tests. You can find more information about the external
antenna further down on the page.
D IN/PPS
The Digital In and PPS port can be used for connection
to the
VBOX Brake Pedal Trigger
trigger deceleration tests. More information on this is
available
here.
The port can also be used to connect a Hand Held Start/
Stop Logging Switch (RLVBACS010) to control the
logging of the unit. More information on this is
here.
CAN/Serial
The top CAN/Serial port can be used to output serial
information, allowing you to either connect VBOX Touch
to provide brake
available
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/
User_Guide_%E2%80%93_VBOX_Touch_V2/02_Installing_VBOX_Touch_V2_in_Your_Vehicle
Left Side
