VBOX Touch Lap Timing Mode - Quick Start Guide

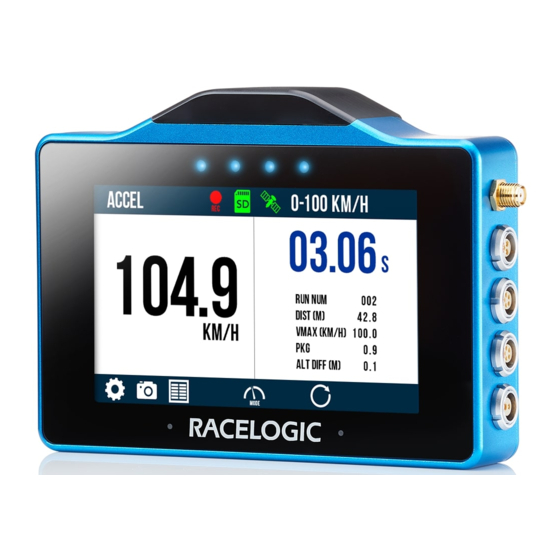

VBOX Touch features a 10 Hz GNSS receiver and a responsive colour touchscreen. The Lap Timing Mode allows you
to view live Lap Timing information in relation to a set Start/Finish line.
Two Lap Timing screens are available; the
live reference lap time comparison (Delta-T), current reference lap time, last lap time, last lap time difference to best,
session time and completed lap count. The
time.
Registration
So that Racelogic can continue to provide you with notification of the latest software releases, firmware upgrades and to
offer technical support, please register your VBOX Touch.
Register your unit here.
What's Included
VBOX Touch (RLVBTOUCH)
Product Code
VBTOUCH-V1
RLCAB010LE / RLCAB014LE
RLACS313
RLACS262
RLACS277
Main
Screen, which contains live reference lap speed comparison (Delta-V),
Basic Screen
contains either just a rolling lap time or a static previous lap
Quantity
1
1
1
1
1
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/Quick_Start_Guides/
Description
VBOX Touch 10 Hz Unit Including
Rubber Cover
Cigar Plug Power Supply
(RLVBTOUCH, 2 m)
or Unterminated Power Supply
(RLVBTOUCH-M, 2 m)
8 GB SD Ultima Pro UHS-1 Memory
Card
GNSS Antenna (3 m)
Swivel Neck Richter Suction Mount
VBOX_Touch_Lap_Timing_Mode_-_Quick_Start_Guide
1
Advertisement
Table of Contents
Related Manuals for Racelogic VBOX Touch
Summary of Contents for Racelogic VBOX Touch
- Page 1 VBOX Touch Lap Timing Mode - Quick Start Guide VBOX Touch features a 10 Hz GNSS receiver and a responsive colour touchscreen. The Lap Timing Mode allows you to view live Lap Timing information in relation to a set Start/Finish line.
- Page 2 Product Code Quantity Description Plastic Carry Case for VBOX Touch RLACS281 (not supplied with RLVBTOUCH- VBOX Touch RTK (RLVBTOUCHR) Product Code Quantity Description VBOX Touch RTK 10 Hz Unit VBTOUCHR-V1 Including Rubber Cover Cigar Plug Power Supply RLCAB010LE (RLVBTOUCH, 2 m)
- Page 3 VBOX_Touch_Lap_Timing_Mode_-_Quick_Start_Guide...
-
Page 4: Hardware Overview
Hardware Overview Left Side SD Card VBOX Touch logs data via an SD card. Dependent on the Logging Strategy selected within the General Settings area, the unit will either log continuously or when movement is detected (default). More information on this is available here. -
Page 5: Right Side
Antenna VBOX Touch has an internal patch antenna, meaning that in many circumstances where the unit has a clear view of the sky without any interference, an additional antenna is not required. However, if you are struggling to maintain a stable satellite lock, the supplied external antenna (RLACS262) can be connected to the antenna socket. -
Page 6: Screen Overview
Logging VBOX Touch logs data via an SD card inserted in to the Left Side of the Unit. The unit is supplied with an 8 GB SDHC card in a FAT32 file format, which is the only file format supported. If you are looking to purchase a new SD card, it is recommended that any card used has a write speed of above 7 MB/s (4 MB/s absolute minimum) and a speed class of 10 (4 absolute minimum). - Page 7 Setup 1. VBOX Touch has an internal patch antenna, meaning that in many circumstances, where the unit has a clear view of the sky without any interference, an additional antenna is not required. However, if required, mount the supplied external GPS antenna in the centre of the roof of the vehicle, away from roof bars and other antennas.
- Page 8 GPS location. If multiple layouts are available, you can press the Select button to scroll through the different options. Ensure that the correct circuit is selected! 8. If you have a VBOX Touch RTK unit and are intending to use RTK corrections, go to RTK Input...
- Page 9 Note: The external antenna should be used If you are receiving RTK corrections with a VBOX Touch RTK unit. 9. If you have a VBOX Touch RTK unit, it is also possible to change the 3rd tracked constellation between Beidou...
- Page 10 Note: Ensure correct hardware connections are made. 11. Press the Exit Button to return to the Lap Timing screen. 12. Take the vehicle outside and wait for the VBOX Touch to gain satellite lock. The Satellite Icon should display as solid green...
- Page 11 14. The unit is now ready to display live Lap Timing values. Main Screen: • Once the start/finish line is crossed, VBOX Touch will automatically begin to create a reference lap. When a reference lap is being created, a 'Creating a Reference Lap' message is displayed within the Delta-T section and the reference lap section will show a rolling lap time.
- Page 12 Basic Screen: • VBOX Touch will display the current live lap time and when a new lap starts, the previous lap time will be displayed for 3 seconds before reverting to displaying the current live lap time. It is possible to just display the previous lap...
-
Page 13: Data Analysis
A recorded session will be saved within the SD card as a .vbo file. This can be later analysed using our next generation of data analysis software VBOX Test Suite, which can be downloaded from the VBOX Automotive Website. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/Quick_Start_Guides/ VBOX_Touch_Lap_Timing_Mode_-_Quick_Start_Guide... - Page 14 Fixes/Unfixes the reference lap Resets the lap timing data, lap time history and Press and hold the Main Lap Timing Screen reference lap Sets a Start/Finish Finish Line at the current Tap the Basic Lap Timing Screen location https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/Quick_Start_Guides/ VBOX_Touch_Lap_Timing_Mode_-_Quick_Start_Guide...
