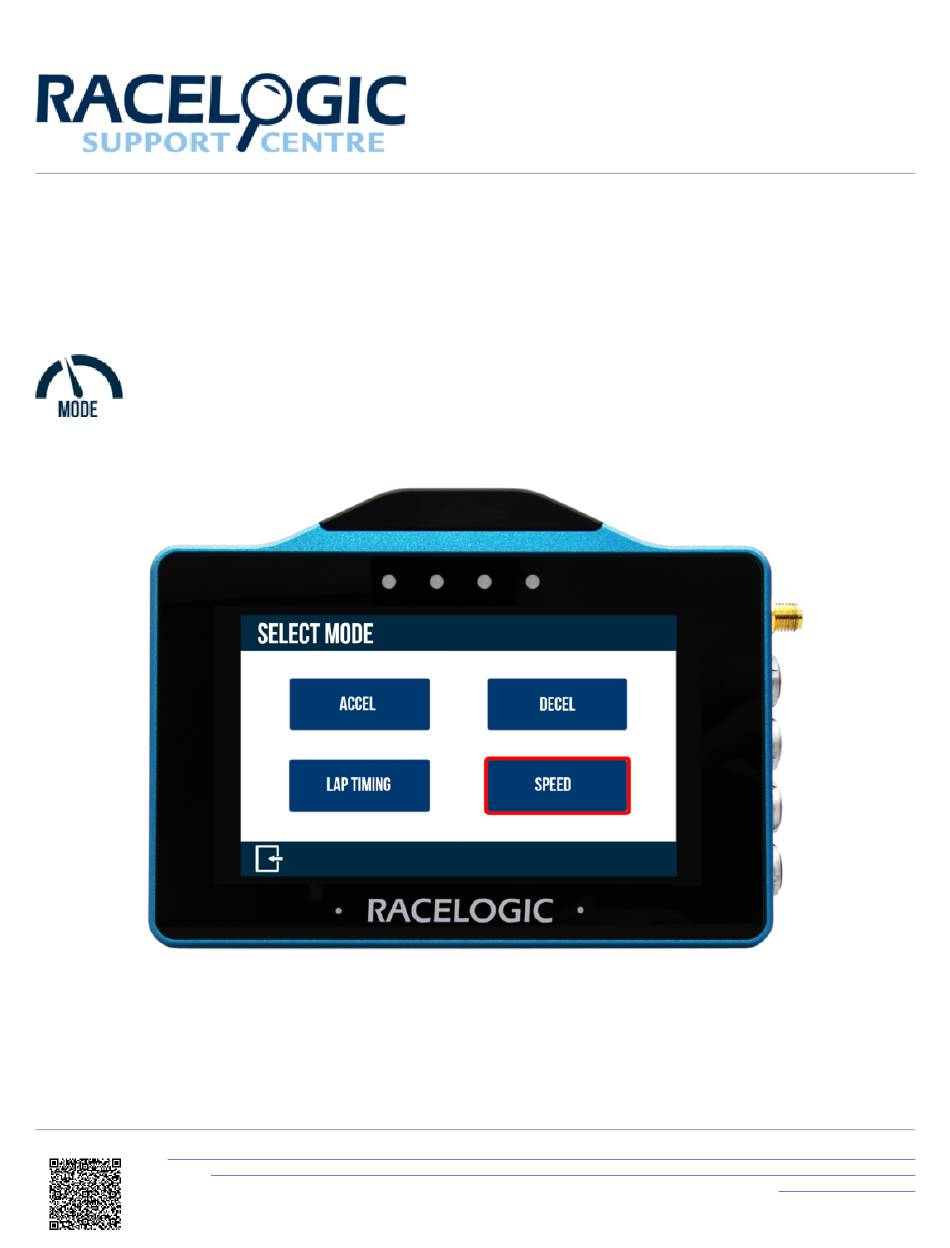

VBOX Touch - Speed Display Mode

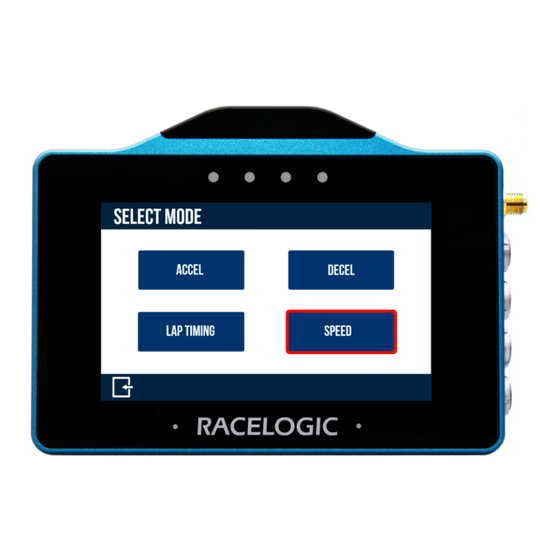

The Speed Display Mode allows you to view live speed data, selectable via 3 screens; Speed, VMAX and Average
Speed. It is accessed by pressing the Mode Button
at the bottom of the screen and selecting Speed.
The last selected Speed Display Mode will be displayed after each power cycle.
https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/
VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_-
_Speed_Display_Mode
1
Advertisement
Table of Contents
Related Manuals for Racelogic VBOX Touch
Summary of Contents for Racelogic VBOX Touch
- Page 1 VBOX Touch - Speed Display Mode The Speed Display Mode allows you to view live speed data, selectable via 3 screens; Speed, VMAX and Average Speed. It is accessed by pressing the Mode Button at the bottom of the screen and selecting Speed.
- Page 2 This screen displays the Absolute Top Speed reached until the Reset Button is pressed at the bottom of the screen. If a Target Speed is selected within the Speed Settings, it will be displayed in grey underneath the VMAX. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
- Page 3 The screen can be reset at any time by pressing the Reset Button at the bottom of the screen. If a Target Speed is selected within the Speed Settings, it will be displayed in grey underneath the Average Speed. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
- Page 4 Speed option. It enables you to choose between speed display options. To return to the main screen, select the Exit Button on the bottom left. Decimal Places https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
- Page 5 • Continuous: Average speed will start to calculate as soon as an SD card is inserted and initialised. • Moving: Average speed will start to calculate as soon as a speed over 0.8 km/h is detected. calculations will stop when speed is less than 0.8 km/h. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
- Page 6 Enabling one, or both of the alerts will set the target speed and also allow you to access the sub menu where you can define the target speed condition by pressing the value box and then using the keypad presented. Target Speed Keypad Example To save the value inputted, press the Confirm Button https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
- Page 7 Note: Speed can be entered up to 1 decimal place. Reset Selecting the Reset Button on the bottom right of the screen will reset all results shown on the current screen. When pressed, the LEDs will briefly flash green twice. https://en.racelogic.support//Product_Info/Performance_Meters/VBOX_Touch/Firmware_Updates_%E2%80%93_VBOX_Touch/ VBOX_Touch_Firmware_Version_1.4/02_Display_Modes_%E2%80%93_VBOX_Touch_Firmware_v1.4/VBOX_Touch_- _Speed_Display_Mode...
