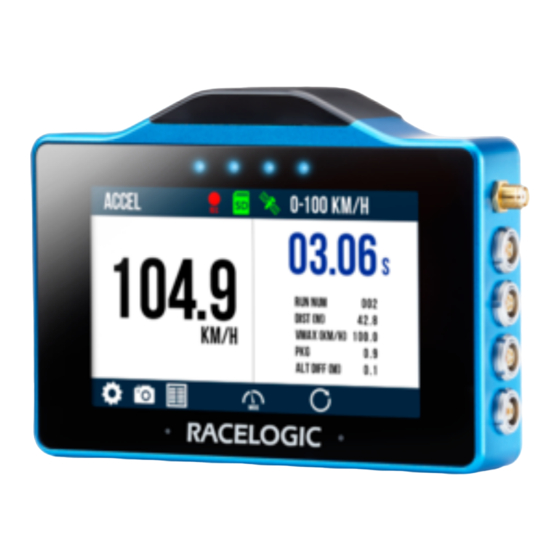

VBOX Touch V2 Accel Mode - Quick Start Guide
VBOX Touch features a 25 Hz GNSS receiver and a responsive colour touchscreen. The Accel Mode allows you to
perform 4 concurrent acceleration tests using specified values.
Getting Started
Registration
Please register your VBOX Touch so that Racelogic can
continue to provide you with notifications about the latest
software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a VBOX Touch V2, you will find the following items when you open the box:
VBOX Touch (RLVBTOUCH)
Product Code
VBTOUCH-V2
Quantity
1
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide
Description
VBOX Touch 25 Hz Unit Including
Rubber Cover
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Racelogic VBOX Touch V2
Summary of Contents for Racelogic VBOX Touch V2
- Page 1 Racelogic product, and offer technical support. Register your device here. What is in the box? When you purchase a VBOX Touch V2, you will find the following items when you open the box: VBOX Touch (RLVBTOUCH) Product Code Quantity...
-
Page 2: Optional Accessories
If you are looking to purchase a new SD card, it is recommended that any card used has a write speed of above 7 MB/s (4 MB/s absolute minimum) and a speed class of 10 (4 absolute minimum). Racelogic recommends SD cards from quality brands such as Transcend, SanDisk, Kingston or Lexar to ensure the best results. - Page 3 The VBOX Touch unit is powered by a power cable with a Cigar Plug adapter for connecting to power within the vehicle. The cable terminates in a 2-way Lemo connector that mates with the Power socket on VBOX Touch. On boot-up, the VBOX Touch will display a splash screen and automatically look for satellites and media. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 4 If you have come to a stop, but the Record Icon is still on, press the SD Card Icon to stop the logging before removing the card. Sometimes, due to poor satellite visibility in a garage or close to a building, VBOX Touch may start recording, even if the car is stationary. Always check the Record Icon before ejecting the card. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 5 GNSS only; 2 = DGNSS. • Event 1 time: This is the digital input oversample timer used to interpolate the trigger event time between captured samples. You can find more information about the VBO file format here. Installing VBOX Touch https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 6 VBOX Test Suite via an RLCAB001 and conduct live testing, or output lap timing parameters. You can find more information about the Serial Output settings here. You can find more detailed connector information on the PIN OUTS page. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
-
Page 7: Satellite Reception
GNSS antenna can unpredictably disturb the signal due to interference from reflections of weak GNSS signals. For the best results, use the antenna in the centre of a metal roof at least 5 cm away from any roof bars or radio https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide... - Page 8 Tall buildings or trees can block GNSS signals, causing a reduction in the number and quality of satellites being tracked, leading to inaccurate position measurements and a noisy velocity signal. GNSS works best in open areas/ Avoid tree-lined roads https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
-
Page 9: Gps Coldstart
‘SEARCHING FOR SATELLITES’ until the satellite lock has been acquired. It will take approximately 25 to 30 seconds for the unit to reacquire the satellite lock. LED Behaviour The 4 LEDs at the top of the unit provide visual feedback dependent on what process is being performed: https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide... - Page 10 LEDs; each lit LED will represent 25% of the process with all LEDs extinguishing when the process is complete. When a Track Layout is changed, the LEDs will briefly flash green twice. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 11 Setup 1. Connect the power via the Power socket. 2. Insert the SD card into the Side of the Unit. The SD Card Icon should display as green as long as the card has free space. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 12 0–60, 0–100, 0–100–0 and 0–¼ mile. 9. If you would like an audible and visual alert when the Primary test is completed or the target speed is met within a 0-Speed-0 test, enable Alert at End/Target within the Settings. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
- Page 13 Output Mode to either VBOX Stream (live testing with VBOX Test Suite) or Lap Timing. Note: Ensure correct hardware connections are made. 15. Press the Exit Button to return to the Accel Test screen. 16. Take the vehicle outside and wait for the VBOX Touch to gain satellite lock. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
-
Page 14: Data Analysis
More information on Accel Mode testing can be found here. Data Analysis A recorded session will be saved within the SD card as a .vbo file. This can be later analysed using our next generation of data analysis software VBOX Test Suite. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V2/ Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide... - Page 15 Quick_Start_Guides_%E2%80%93_VBOX_Touch_V2/VBOX_Touch_V2_Accel_Mode_-_Quick_Start_Guide...
