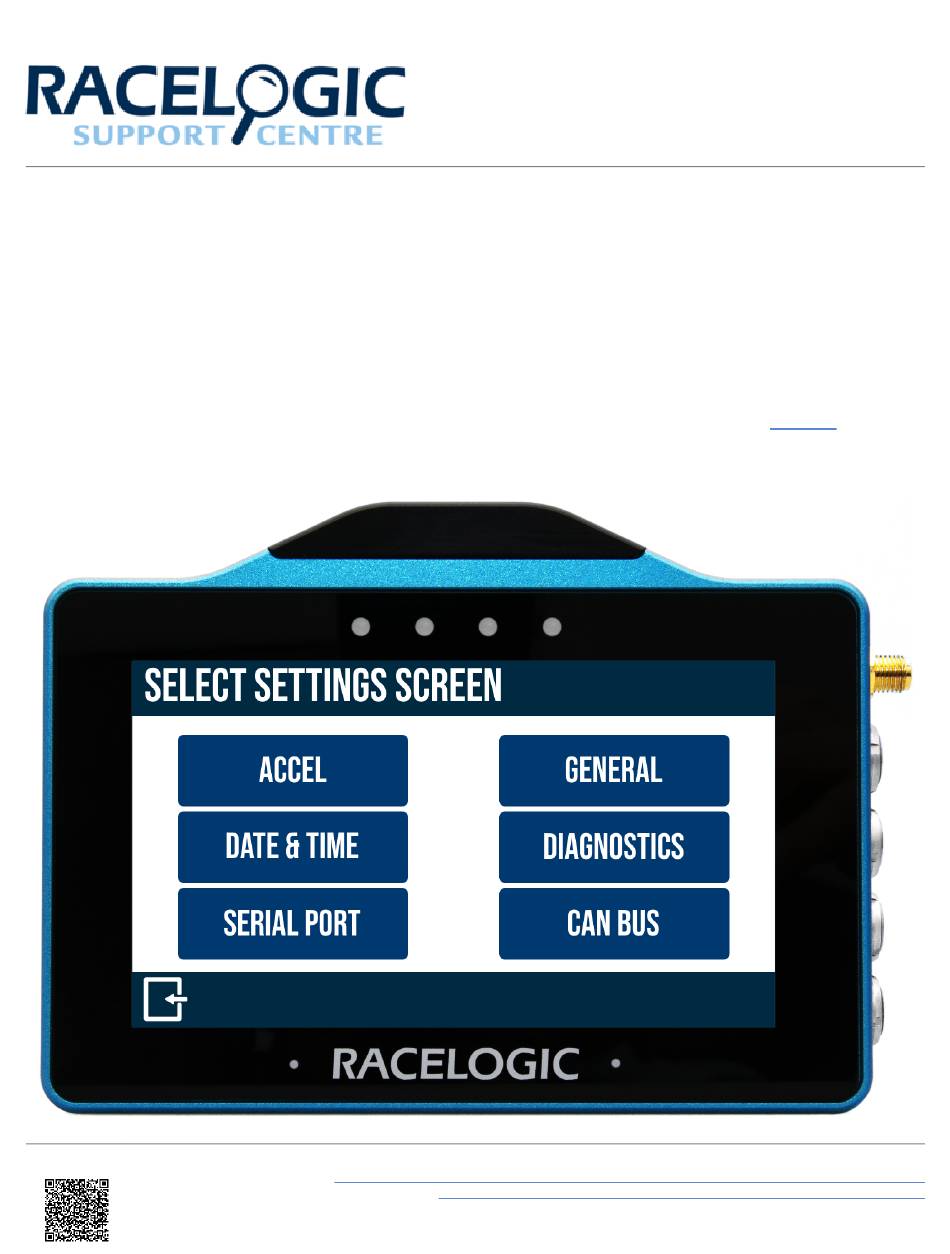

06 Settings – VBOX Touch RTK
This page contains the settings menu information for FW version 1.5 on VBOX Touch.
You find the VBOX Touch Settings menu by selecting the mode you want to use and pressing the
Settings
button at the bottom left of the display mode screen.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/
User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK
1
Advertisement
Table of Contents
Related Manuals for Racelogic VBOX Touch RTK
Summary of Contents for Racelogic VBOX Touch RTK
- Page 1 06 Settings – VBOX Touch RTK This page contains the settings menu information for FW version 1.5 on VBOX Touch. You find the VBOX Touch Settings menu by selecting the mode you want to use and pressing the Settings button at the bottom left of the display mode screen.
-
Page 2: Mode Settings
The first option on the Settings screen depends on which Display Mode you are using. You can find more information on these on the page for each specific Display mode. General Settings This menu contains units, logging mode, save format and brightness options. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK... - Page 3 • A new data file is created every time the VBOX Touch starts/stops logging, data is not appended to an existing data file. • Continuous logging mode should be selected if you are using a handheld Start/Stop Logging Switch https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK...
- Page 4 You can manually adjust the LED brightness between 5 levels, with 1 being the dimmest and 5 being the brightest setting (this is extremely bright!) or turn off the LEDs. Press the button to cycle through the available options, the LEDs will preview the brightness level. Date and Time Settings This menu contains date and time settings. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK...
-
Page 5: Serial Port Settings
Serial Port Settings This menu contains serial output and RTK input settings. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK... -
Page 6: Serial Output
Serial Output Serial output is available on the top CAN/Serial port of the VBOX Touch, as shown in the image on the right-hand side of the Serial Port Settings. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK... - Page 7 CAN/Serial port. If you are intending to receive corrections via an RTK Base Station solution, this option should be Disabled. Note: The external antenna should be used when receiving RTK corrections. DGPS Baud Rate Control the DGNSS serial baud rate by pressing the button to cycle between: https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK...
- Page 8 Module with a Static Base Station, this setting should be either 115200 kbit/s for a Racelogic blue boxed radio or 38400 kbit/s for a Satel grey boxed radio. Tap the button to change the setting. The setting option will be retained after power cycles, coldstarts and firmware upgrades.
-
Page 9: Gps Information
3. The number of satellites will then be displayed as '00' and GPS status will show ‘SEARCHING FOR SATELLITES’ until the satellite lock has been acquired. It will take approximately 25 to 30 seconds for the unit to reacquire the satellite lock. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK... - Page 10 VBOX Touch device. CAN Bus The CAN bus settings are the latest to be added to the VBOX Touch. You can read more about the CAN bus settings here. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/06_Settings_VBOX_Touch_RTK...
