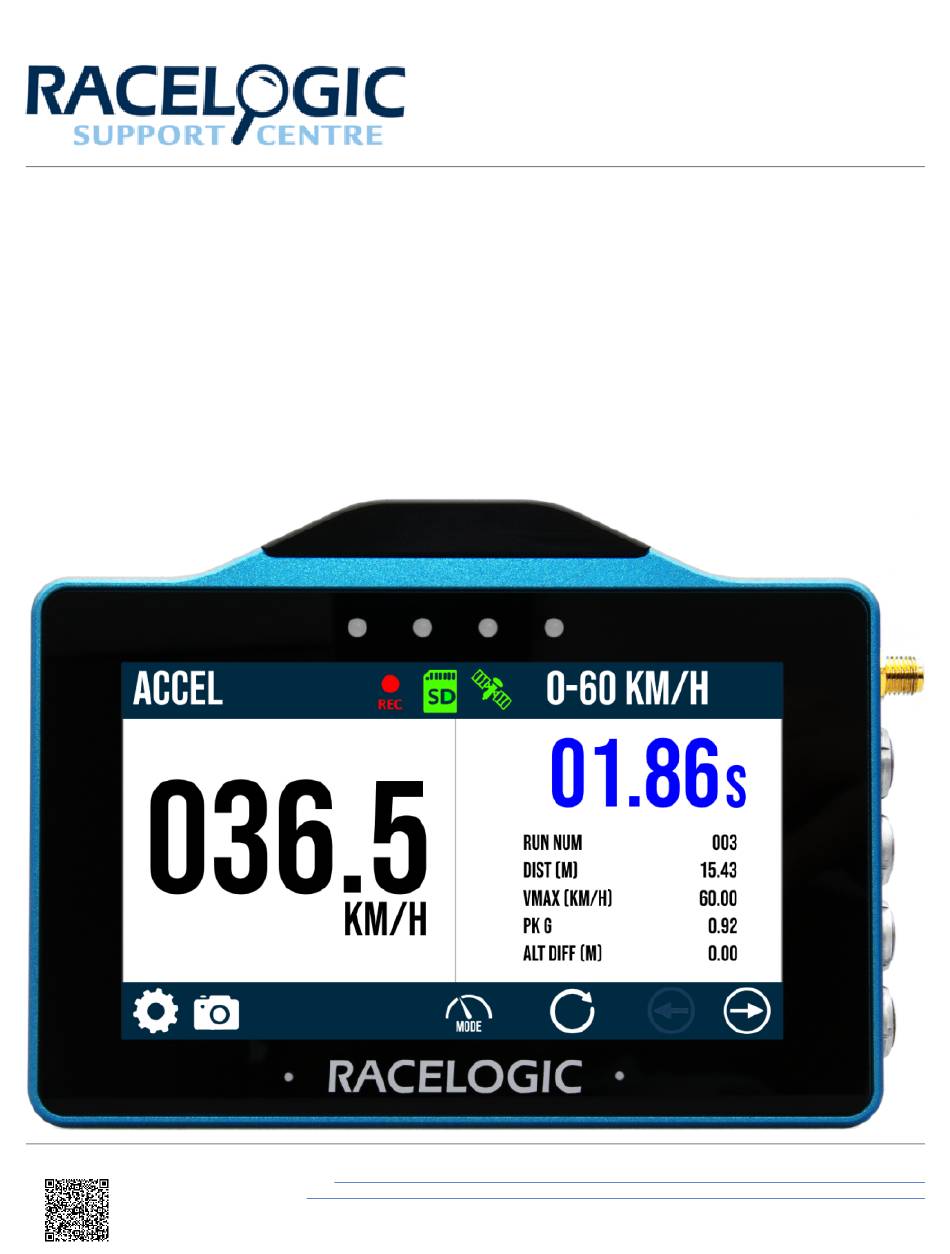

04 Screen Layout – VBOX Touch RTK
As the name suggests, VBOX Touch RTK is controlled by using the capacitive touch screen.
Generally, the different areas of the screen contain the following:
• Top of the screen – indicative status information
• Centre of the screen – mode and settings information (navigate by pressing the forward and back arrows or by
swiping left or right)
• Bottom of the screen – function buttons
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/
User_Guide_%E2%80%93_VBOX_Touch_RTK/04_Screen_Layout_%E2%80%93_VBOX_Touch_RTK
1
Advertisement
Table of Contents
Related Manuals for Racelogic VBOX Touch RTK
Summary of Contents for Racelogic VBOX Touch RTK
- Page 1 04 Screen Layout – VBOX Touch RTK As the name suggests, VBOX Touch RTK is controlled by using the capacitive touch screen. Generally, the different areas of the screen contain the following: • Top of the screen – indicative status information •...
- Page 2 Configured Logging Strategy. If the unit cannot detect an SD card or the media is full or corrupted, the icon will be red. Satellite Status The Satellite Icon illustrates whether the unit has a valid satellite lock. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/04_Screen_Layout_%E2%80%93_VBOX_Touch_RTK...
- Page 3 When a lock is acquired, this icon will be solid green. If there is no satellite lock, the icon will flash red. When VBOX Touch RTK has a GNSS status of RTK Float, this icon will be orange. When VBOX Touch RTK has a GNSS status of RTK Fixed, this icon will be purple.
- Page 4 You can view the test results history by selecting the Results button at the bottom of the current test screen. These test results will be displayed until you choose a new test type or you press the Reset Button. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/04_Screen_Layout_%E2%80%93_VBOX_Touch_RTK...
- Page 5 Display Mode and Settings screens. Alternatively, you can also swipe left or right on the screen when these buttons are visible. Exit Button You can use the Exit button to return to the previous menu or page. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_RTK/ User_Guide_%E2%80%93_VBOX_Touch_RTK/04_Screen_Layout_%E2%80%93_VBOX_Touch_RTK...
