7. Display

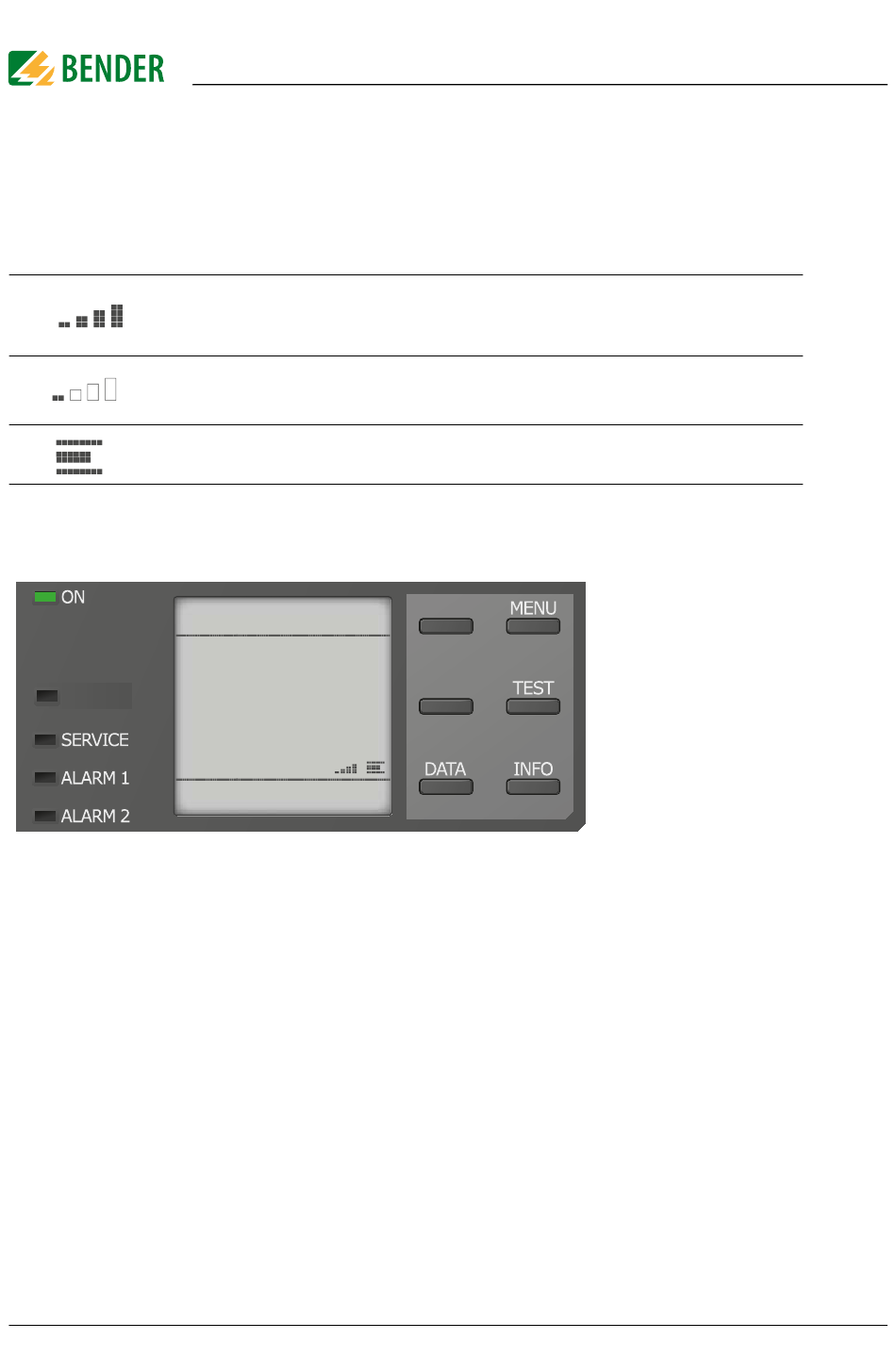

7.1 Standard display

During normal operation, the ISOMETER® displays the message "OK" and below, the currently
measured insulation resistance.
The signal quality of the measurement suits the selected profile.
The better the signal quality, the faster and more exact the device can
measure.
The signal quality of the measurement does not suit the selected
profile. Select a different measurement profile.
Update period between the measuring pulses.
In the bottom line of the display, the set response values for "R(an)" are indicated. In the ex-
ample below, R
an1
PGH ON
36
=40 kΩ und R =10 kΩ.
an2
IT system
OK
230 kΩ
R(an) 40kΩ/10kΩ
