Device overview

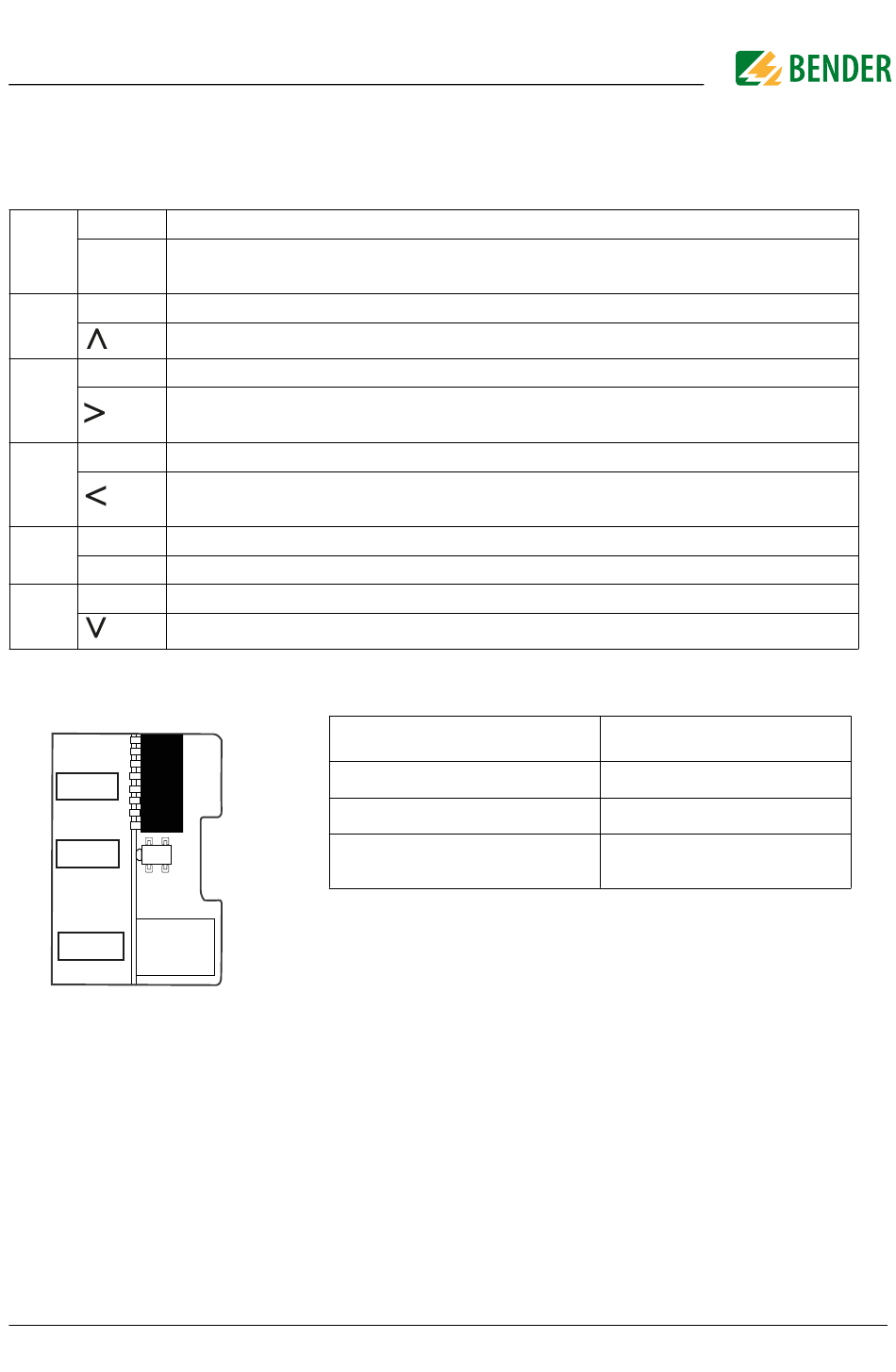

4.3.2 Device buttons
Adjust the device settings in the respective menu using the device buttons. Depending on the
menu entry, one of the options displayed below is assigned to the buttons.
MENU Opens the device menu.
7
Cancels the current process or
ESC
navigates one step back in the device menu.
EDS Opens the EDS menu (isoxx1685DP only)
8
Navigates up in a list or increases a value.
TEST Starts the device self test.
9
Navigates forwards (e.g. to the next setting step) or
selects a parameter.
RESET Resets alarms.
10
Navigates backwards (e.g. to the previous setting step) or
selects a parameter.
INFO Shows information.
11
OK Confirms an action or a selection.
DATA Indicates data and values.
12
Navigates down in a list or reduces a value.
4.3.3 Operating elements in the service lid
1
A4
2 A3
A2
3
A1
4
SS8103
A0
5
6
7
8
ST6101
µSDCard
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022
Operating elements
DIP switch (SS8103)
Button (ST6101)
Memory card (SD card)
Function
no function
Alarm reset
no function
