12.2 Diagrams of the leakage capacitance

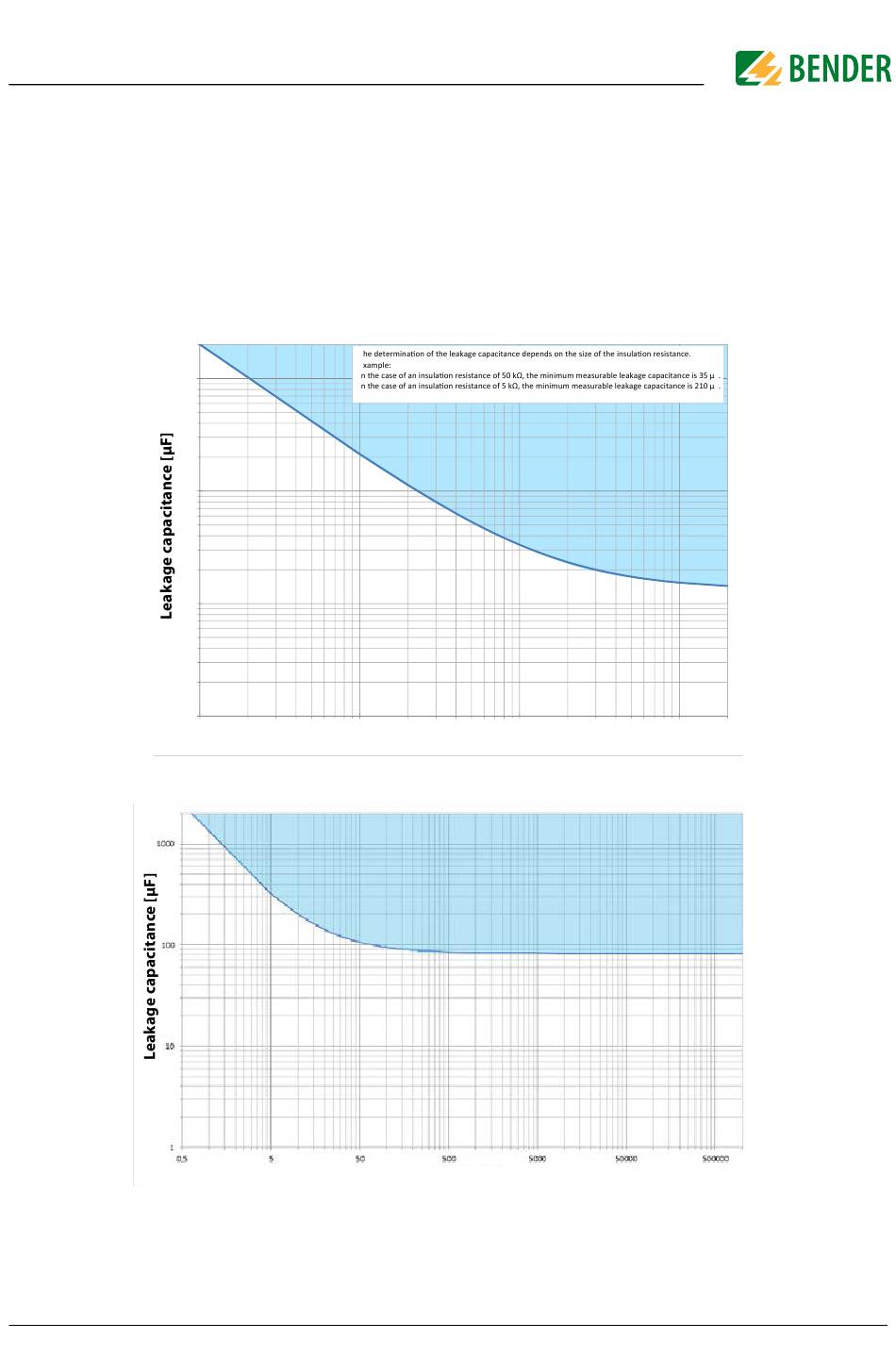

The determination of the leakage capacitance depends on the size of the insulation resistance.
The following diagrams show the relationship.
Example:
Insulation resistance 50 kOhm => min. measurable leakage capacitance 35 μF
Insulation resistance 5 kOhm => min. measurable leakage capacitance 210 μF
Restriction for determining the leakage capacitance (iso1685DP; isoHV1685D)
1000
Restriction for determining the leakage capacitance (isoLR1685DP)
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022
100
10
1
0,5
d

/
/
5
5 0
Fault resistance [kΩ]
