Mounting and connection

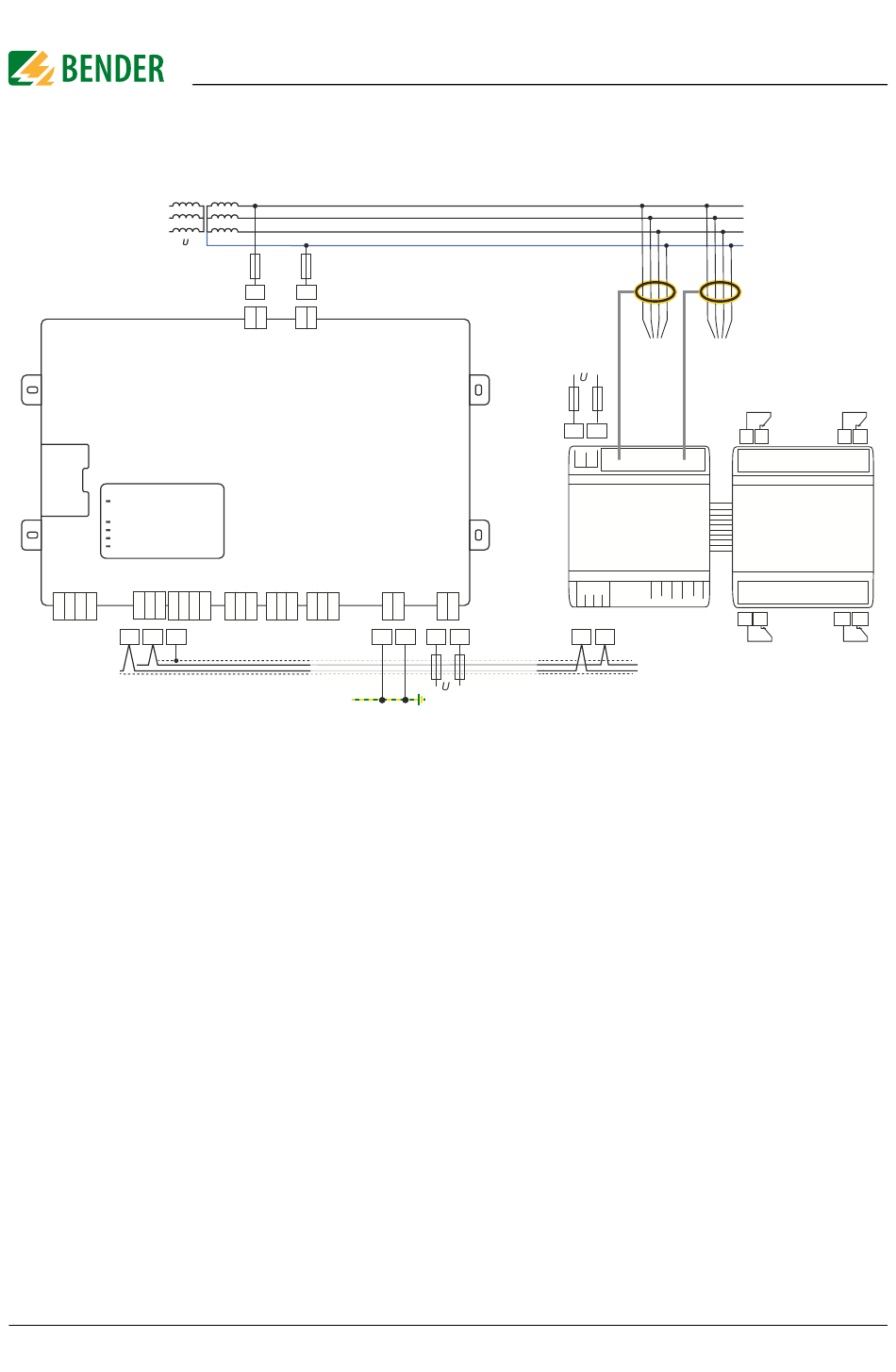

5.3 Connection to a 3AC system with an EDS440 and and IOM441 to a
3NAC system
L1
L2
L3
n
N
L1/+
L2/-
L1/
L1/
L2/- L2/-
+
+
Load
Load
S
...
A1
A2
13 14
63
64
isoxx1685P...
EDS44x...
IOM441
...
A B S
k l kT lT
31 32 34
21 22 24
11 12 14
E KE
A1 A2
I2+ I2- I1+ I1-
73 74
123
124
A
B
S
E
KE
A1
A2
A
B
optional COM465 / CP9xx
S
PE
28
isoxx1685Dx-x25_D00272_07_M_XXEN/09.2022
