Summary of Contents for Bender ISOMETER iso1685FR

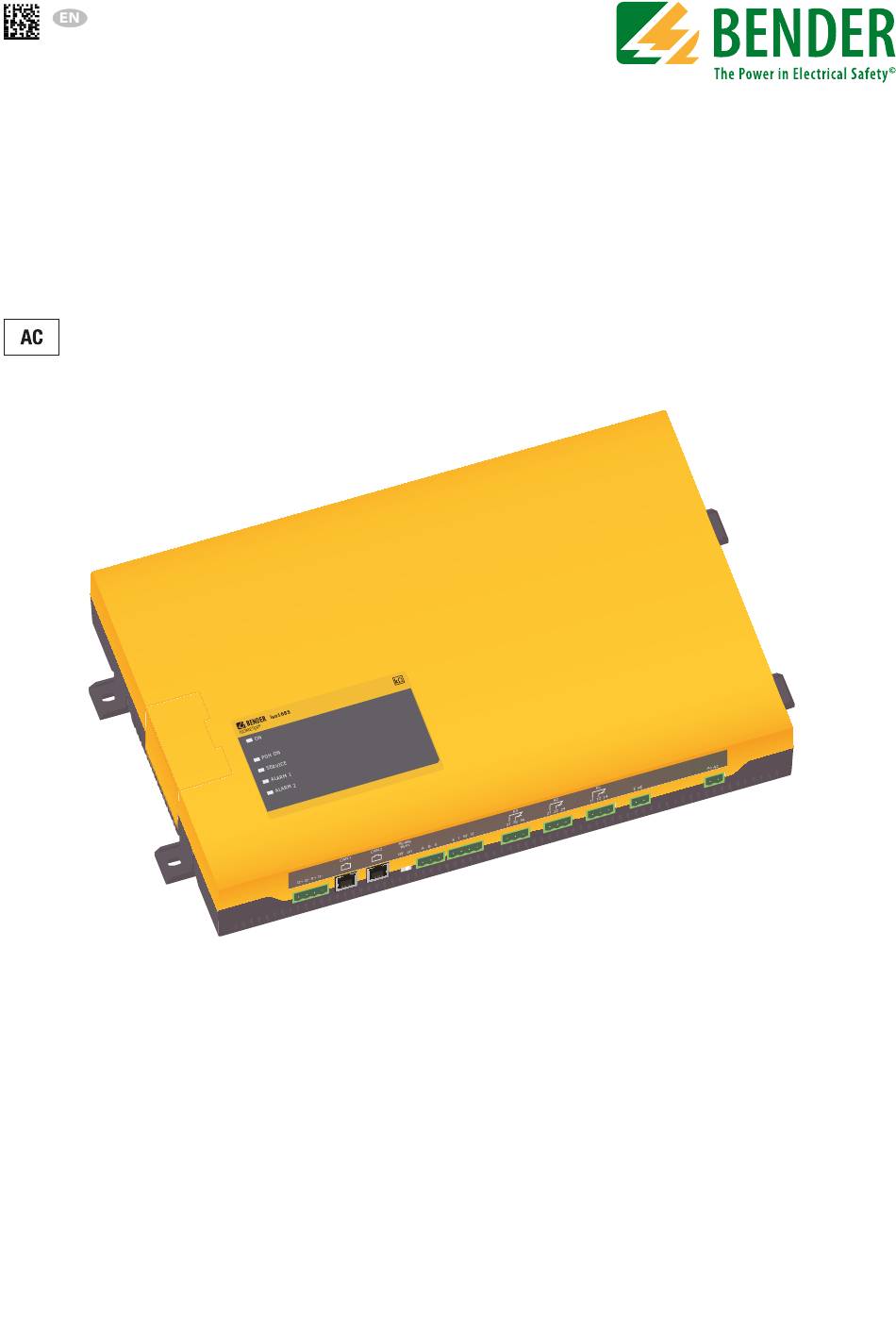

- Page 1 Manual ISOMETER® iso1685FR iso1685FRM Insulation monitoring device for unearthed AC systems (IT systems) up to AC 5 kV iso1685FR: Software version D0407 V1.1x iso1685FRM with analogue output: Software version D0563 V1.0x iso1685FR(M)_D00002_02_M_XXEN/06.2017...
- Page 2 E-Mail: info@bender.de Web: www.bender.de Customer service Service-Hotline: 0700-BenderHelp (Telephone and Fax) Carl-Benz-Straße 8 • 35305 Grünberg • Germany © Bender GmbH & Co. KG All rights reserved. Tel.:+49 6401 807-760 Reprint only with permission Fax:+49 6401 807-629 of the publisher.
-
Page 3: Table Of Contents
Table of contents 1. Important information ........................... 7 How to use this manual ..............................7 Technical support ................................8 1.2.1 First level support ................................8 1.2.2 Repair service ..................................8 1.2.3 Field service ..................................8 Training courses ................................9 Delivery conditions ................................. 9 Storage .................................... - Page 4 Inhaltsverzeichnis 4. Device overview ............................. 19 Dimensions ..................................19 Connections ..................................20 Display and operating elements ..........................21 4.3.1 Operating elements ..............................21 4.3.2 Melde-LEDs auf dem Gehäuseoberteil ........................22 5. Installation, connection and commissioning ................... 23 Installation ..................................23 Connection ..................................
- Page 5 Inhaltsverzeichnis 8. Diagram for the calculation of Ze ....................... 41 9. Information about the measuring method ..................43 10. Technical data ............................45 10.1 Tabular data ..................................45 10.2 Factory settings ................................47 10.3 Standards and certifications ............................48 10.4 Ordering details ................................
-
Page 7: Important Information
1. Important information 1.1 How to use this manual This manual is intended for qualified personnel working in electrical engineering and electronics! Always keep this manual within easy reach for future reference. To make it easier for you to understand and revisit certain sections in this manual, we have used symbols to identify important instructions and information. -
Page 8: Technical Support
• Hardware and software update for Bender device • Delivery of replacement devices in the event of faulty or incorrectly delivered Bender devices • Extended guarantee for Bender devices, which includes an in-house repair service or replacement devices at no extra cost... -
Page 9: Training Courses
(Zentralverband Elektrotechnik- und Elektronikindustrie e.V.) (German Electrical and Electronic Manufacturers' Association) also applies. Amending the “General Conditions for the supply of Products and Services of the Electrical and Electronics Industry” (GL)* Sale and delivery conditions can be obtained from Bender in printed or electronic format. - Page 10 Important information iso1685FR(M)_D00002_02_M_XXEN/06.2017...
-
Page 11: Safety Instructions
2. Safety instructions 2.1 General safety instructions Part of the device documentation in addition to this manual is the enclosed "Safety instructions for Bender products". 2.2 Work activities on electrical installations Only qualified personnel are permitted to carry out the work necessary to install, commis- sion and run a device or system. -
Page 12: Device Specific Safety Information
Safety instructions 2.3 Device specific safety information Danger as a result of excessive locating current or excessive locating voltage! An excessive locating current of the internal locating current injector may damage sensitive loads (e.g. control circuits) or trigger unwanted switching operations. Select a low locating current for these systems. -
Page 13: Address Setting And Termination
Safety instructions Unspecified frequency range! When connecting to an IT system with frequency components below the specified frequency range, the response times and response values may differ from the indicated technical data. However, depending on the application and the selected measurement method, continuous insulation monitoring is also possible in this frequency range. - Page 14 Safety instructions iso1685FR(M)_D00002_02_M_XXEN/06.2017...
-
Page 15: Function
3. Function 3.1 Features • Insulation monitoring of AC and 3(N)AC systems with low leakage capacitance (< 200 nF) • Fast tripping due to the patented SSCP (Synchronous Sine Correlation Principle) measuring method: Notification of an insulation fault or shutdown within 150 ms •... -
Page 16: Functional Description
Function • Commissioning: "chapter 5.3.2 Commissioning of the ISOMETER® iso1685FRM" • Modbus RTU protocol: "chapter 6.2 Device communication with Modbus RTU" 3.3 Functional description Insulation monitoring is carried out using an active measuring signal which is superimposed onto the IT system to earth via the integrated coupling. -
Page 17: Passive Method
Function is triggered. This function can be used to prevent the active process from being continuously interrupted, which in turn means that insulation errors could then be found. 3.3.1.2 Passive method Parallel to the active measuring method, a passive method is integrated for single-phase faults on the respec- tive live conductors (phases), which monitors the voltage between the neutral point of the IT network and earth. -
Page 18: Self Test
Function 3.5 Self test 3.5.1 Self test after connection to the supply voltage Once connected to the supply voltage, all internal measurement functions as well as the process control com- ponents, such as data and parameter memory, are checked. • All internal measuring functions •... -
Page 19: Device Overview
4. Device overview 4.1 Dimensions 5,2 mm iso1685 ® ISOMETER PGH ON SERVICE ALARM 1 ALARM 2 106 mm 39,8 mm 40,75 mm 55,7 mm 51 mm 368 mm 383 mm 401,5 mm iso1685FR(M)_D00002_02_M_XXEN/06.2017... -
Page 20: Connections
Device overview 4.2 Connections A, B, S RS-485 bus 11, 12, 14 31, 32, 34 connection (A,B) A1, A2 Relaiy output Relay output Protocol: Supply voltage DC24V. for Alarm insu- for device er- CAN 1 iso1685FR: BMS Abritrary polarity lation ror ("Service“... -
Page 21: Display And Operating Elements
Device overview 4.3 Display and operating elements 4.3.1 Operating elements The representation below shows the position of the operating elements Operating Function elements SS8103 DIP switch Setting the BMS address (SS8103) ST6101 Button Reset device fault messages (ST6101) Memory card µSDCard Memory for log files and history memory (μSD card);... -
Page 22: Melde-Leds Auf Dem Gehäuseoberteil
Device overview 4.3.2 Melde-LEDs auf dem Gehäuseoberteil iso1685 ® ISOMETER PGH ON SERVICE ALARM 1 ALARM 2 Description Power On indicator: • Flashes with a pulse duty factor of approx. 80 % and 1 Hz. Device error: • Lights continuously, when the device stops functioning (device stopped). (green) Software update: •... -
Page 23: Installation, Connection And Commissioning
5. Installation, connection and commissioning 5.1 Installation Install the device using four M5 screws, refer also to the dimension diagram.Install the device so that it is in a vertical position with the system coupling (L1/+, L2/–) positioned at the top when it is being operated. 5.2 Connection All enclosed plug-in terminals are labelled. - Page 24 Installation, connection and commissioning Prevent measurement errors! When an AC system being monitored contains galvanically coupled DC circuits, take into consideration that: an insulation fault can only be detected correctly when the rectifier valves carry a minimum current of > 10 mA. All terminals are pluggable push-wire terminals.
-
Page 25: Wiring Diagram With Modbus Rtu (Isometer® Iso 1685Fr, Iso1685Frm)
Installation, connection and commissioning 5.2.2 Wiring diagram with Modbus RTU (ISOMETER® iso 1685FR, iso1685FRM) Heating elements L1‘ Thyristor control 300 V CVD reactor L1/+ L2/- k I kT IT 31 32 34 21 22 24 11 12 14 E KE A1 A2 I2+ I2- I1+ I1- A B S... -
Page 26: Anschlussplan Mit Modbus Rtu (Isometer® Iso1685Frm)
Installation, connection and commissioning 5.2.3 Anschlussplan mit Modbus RTU (ISOMETER® iso1685FRM) Heating elements L1‘ Thyristor control DC power supply 1 24 V / 0.5 A 300 V 24 V CVD reactor L1/+ L2/- -7024 k I kT IT 31 32 34 21 22 24 11 12 14 E KE... -
Page 27: Step-By-Step Connection Of The Isometer®Iso1685Fr
Installation, connection and commissioning Terminal, Connections Socket I2+, I2– Digital input - currently has no function I1+, I1– Digital input - currently has no function • Connection to BMS bus, RS-485, S= shielded (internally connected to PE), terminating switch A, B, S "RS-485 Term."... -
Page 28: Step-By-Step Connection Of The Iso1685Frm Isometer
Installation, connection and commissioning 5.2.5 Step-by-step connection of the iso1685FRM ISOMETER® Connect the device with the help of the connection and terminal diagram. Proceed as follows: 1. Connect terminal E and KE to earth (PE) 2. BMS: Connect terminal A and B to the BMS bus Modbus RTUConnect terminal A to terminal (Y)DATA+ and terminal B to terminal (G)DATA- of the Mod- bus analog converter 3. -
Page 29: Commissioning Of The Isometer® Iso1685Fr
Installation, connection and commissioning 5.3.1 Commissioning of the ISOMETER® iso1685FR System = IT System ? iso1685FR not suitable < 400 V ? iso1685FR not suitable < 3 kV, U < 3kV ? N-PE L1‘-PE Deenergize the installation before connecting the device. Device connection Optional device connection E and KE to PE... -
Page 30: Commissioning Of The Isometer® Iso1685Frm
Installation, connection and commissioning 5.3.2 Commissioning of the ISOMETER® iso1685FRM System = IT system ? iso1685FRM is not suitable < 400 V ? iso1685FRM is not suitable < 3 kV, U < 3kV ? N-PE L1‘-PE Deenergize the installation before connecting the device. -
Page 31: Device Communication
The RS-485 interface, galvanically isolated from the device electronics, serves as a physical transmission medi- um for the BMS protocol (Bender measuring device interface). When one device or other bus-capable devices are interconnected via the BMS bus in a network, the BMS bus must be terminated at both ends with a 120 Ω... -
Page 32: Topology Of The Rs-485 Network
≥Shielded cable, core diameter 0.8 (e.g. J-Y(St)Y 2x0.8), shield connected to earth (PE) at one end. Connection to terminals A and B. The number of bus nodes is restricted to 32 devices. If more devices are to be connected, Bender provides a DI- 1DL repeater. -
Page 33: Commissioning Of An Rs-485 Network With Bms Protocol
Device communication General description of a BMS Master A master can query all measured values, alarm and operating messages from a slave. If bus address 1 is assigned to a device, this device automatically represents the master, i.e. all addresses bet- ween 1 and 150 are cyclically scanned via the BMS bus for alarm and operating messages. -
Page 34: Alarm And Operating Messages Via The Bms Bus
Device communication 6.1.6 Alarm and operating messages via the BMS bus Messages are transmitted to a maximum of 12 BMS channels. All alarm and operating messages that may occur are described below. 6.1.6.1 Alarm messages Alarm Channel Meaning Insulation impedance < response value Z Insulation fault alarm Ze/kΩ... -
Page 35: Error Codes
Device communication 6.1.7 Error codes The following list contains all relevant error codes output via the BMS bus. The right-hand column describes the relevant action to be taken in each case. The device error relay K3 (31, 32, 34) switches for all device errors with the sole exception of error 3.10 in order to prevent a system shutdown in the event of an SD card error. -
Page 36: Resetting Error Messages
The firmware can be updated via the BMS bus using the BMS Update Manager which can be obtained from Bender. can be obtained from Bender. 6.2 Device communication with Modbus RTU The ISOMETER® iso1685FRM provides an analogue output by means of the Modbus-analogue converter.Com- munication takes place via Modbus RTU. -
Page 37: Parameterization Via The Bms Bus
7. Parameterization via the BMS bus 7.1 Parameter 7.1.1 Tabel overview Channel comman Description Setting range Response value for insulation measurment Ze/kO 10…1000 (Default: 25, Step size: 1) (active method) Ce-instal- Ce value [nF] (Fixed), 1…200 lation (System leakage capacitance) (Default: 1, Step size: 1) value [kΩ] (Fixed) Re-instal-... - Page 38 Parameterization via the BMS bus in Abhängigkeit der System-Ableitkapazität /kΩ an-max 1.000 Beispiel: Bei einer System-Ableitkapazität C von 50nF, darf der e-Anlage Ansprechwert Z maximal auf 100kΩ eingestellt werden. (Annahme: System-Isolationsfehler R > 100MΩ) e-Anlage e-Anlage >100M 300k 200k 100k e-Anlage •...
-
Page 39: Parameterization Of The Installation Parameter Re-Anlage And Ce-Anlage
7.2.2 Parameterization with the iso1685FR-Set tool The ISOMETER® can be parameterized with the iso1685FR-Set tool. • You can download the software at: http://www.bender-de.com/en/service-support/download/software.html The iso1685FR-Set tool can only be used if there is no master in the BMS system. iso1685FR(M)_D00002_02_M_XXEN/06.2017... -
Page 40: Error Handling
Bender provides this software free of charge and without any warranty. By using this software you agree that you are using the software at your own risk. Bender does not assume any re- sponsibility for possible software errors or defects and does not guarantee that the software works error-free and reliably. -
Page 41: Diagram For The Calculation Of Ze
8. Diagram for the calculation of Z iso1685FRM: M-7024 [kΩ] The following formula for calculating the insulation value measured by ISOMETER® is applicable for ≤ 200 kΩ. [mA] - 4) * 200) [kΩ] = iso1685FR(M)_D00002_02_M_XXEN/06.2017... - Page 42 Diagram for the calculation of Ze iso1685FR(M)_D00002_02_M_XXEN/06.2017...
-
Page 43: Information About The Measuring Method
9. Information about the measuring method The device can report an insulation fault or a permanent interference via the following methods: • Active method parameter:Response value Z , Measured data buffer size cannot be switched off • Passive method parameter:Response value U can be switched off by setting U to 0 •... - Page 44 Information about the measuring method iso1685FR(M)_D00002_02_M_XXEN/06.2017...
-
Page 45: Technical Data
10. Technical data 10.1 Tabular data Insulation coordination acc. to IEC 60664-1 / IEC 60664-3 Insulation coordination according to IEC 60664-1 Rated insulation voltage (terminals L1/L2 to E/KE) ....................................5 kV Overvoltage category ..............................................II Pollution degree ................................................2 Voltage ranges Nominal system voltage U L1+/L2-.................................... - Page 46 Technical data Serial interfaces Interface/protocol iso1685FR.......................................RS-485 / BMS (slave) Interface/protocol iso1685FRM ............................RS-485 / BMS (Slave), Modbus RTU (switchable) Connection............................................bus: Terminals A/B ................................................Shield: Terminal S Cable length ..............................................≤ 1200 m Shielded cable (shield to PE on one side)............................2-core, Ø 0.6 mm , e.g.
-
Page 47: Factory Settings
Technical data Other Operating mode .......................................... continuous operation Position of normal use....................................vertical, system coupling on top Degreee of protection, internal components......................................IP30 Degree of protection, terminals ..........................................IP30 Software version ............................................D407 V1.13 Weight ................................................... 650 g ( )* =..............................................Factory settings ** = The specification refers only to the differential voltage between the coupling terminals, not to earth. -
Page 48: Standards And Certifications
Technical data 10.3 Standards and certifications The ISOMETER® has been developed in compliance with the following standards: • DIN EN 61557-8 (VDE 0413-8) • IEC 61557-8 • IEC 61326-2-4 • DIN EN 60664-1 (VDE 0110-1) • EN 50178:1998-04 10.4 Ordering details Nominal Type Response value range... - Page 49 INDEX Adresseinstellung 13 Fehlermeldungen zurücksetzen 36 RS-485 interface 31 Alarm messages 34 Firmware update 36 RS-485 network - Correct arrangement 32 Alarm relays K1, K2, K3 17 Functional description 16 - Terminated network 31 Anschluss RS485-Netzwerk - Anschlussbedingungen 23 - Falsche Verlegung 32 - Anschlussplan 26 Gerätemerkmale 15 - Verdrahtung 32...
- Page 50 INDEX iso1685FR(M)_D00002_02_M_XXEN/06.2017...
- Page 51 INDEX iso1685FR(M)_D00002_02_M_XXEN/06.2017...
- Page 52 Bender GmbH & Co. KG Postfach 1161 • 35301 Grünberg • Germany Londorfer Straße 65 • 35305 Grünberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-Mail: info@bender.de • www.bender.de Fotos: Bender archiv.
