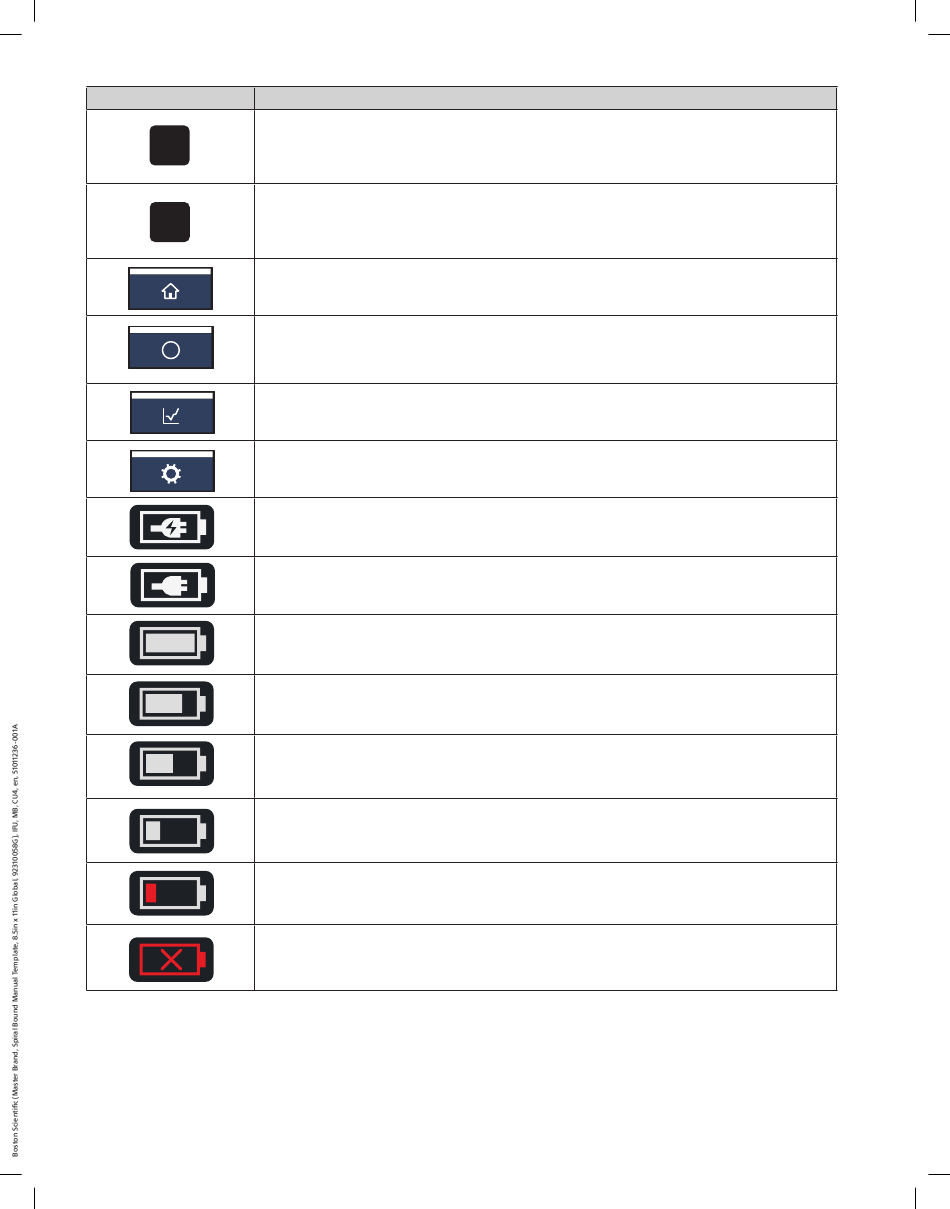

Symbol
A
B
i
Black (K) ∆E ≤5.0
Channel A:
Channel icon may be green, yellow, red, or black on the display/touchscreen� The label for the hard
buttons is always gray�
Channel B:
Channel icon may be green, yellow, red, or black on the display/touchscreen� The label for the hard
buttons is always gray�
Home Tab:
Displays cable connection, system instructions, and ultrasound runtime information for each channel�
Information Tab:
Displays Control Unit model number and software version, Connector Interface Cable and device
information and the EKOS help line phone number�
Graph Tab:
Displays a line graph that shows the percentage of the maximum average power delivered for
each channel�
Settings Tab:
Displays a configuration menu for setting audible alert volume, screen brightness and language�
Connected to AC power and battery is charging�
Connected to AC power and battery is fully charged�
Battery charge remaining (76 % - 100 %)�
Battery charge remaining (51 % - 75 %)�
Battery charge remaining (26 % - 50 %)�
Battery charge remaining (16 %-25 %)�
Battery charge remaining (0 % - 15 %)�
Defective battery� Please call the phone number listed in the For Support section�
