Front View

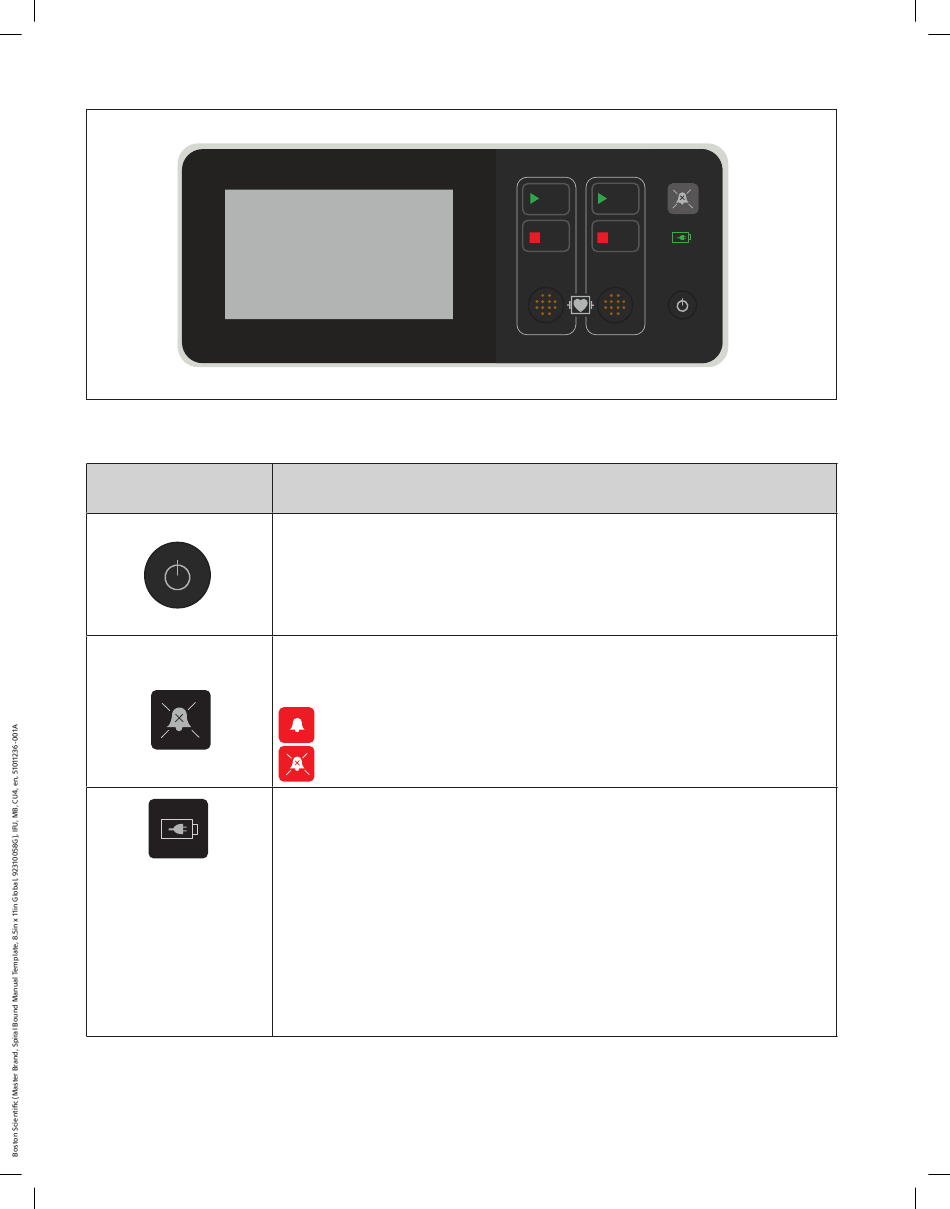

Figure 2. Front View of Control Unit
Table 2.
Control/Indicator/Connector
Black (K) ∆E ≤5.0
Display/Touch Screen
Power Button:
Turns the Control Unit ON and OFF� When the Control Unit is ON, a green LED illuminates� Press and
hold the button for 3 seconds to turn the Control Unit OFF� Press and hold the button for 10 or more
seconds to put the Control Unit into low power/battery-saving mode�
Audio Pause Button:
Silences the audio alert tone for 5 minutes when pressed� Pressing the button when audio is silenced
turns ON the audio alert tone�
Note:
When audio alert tone is ON, the alert icon displays on the screen�
When the audio alert tone is silenced, the alert icon is crossed-out indicating audio silenced�
AC Power/Battery Charging Indicator:
Illuminates when the Control Unit is OFF, indicating battery charge status� (Note: this icon is not visible
when the Control Unit is ON�)
When the Control Unit is connected to AC power�
• Steady green indicates battery is fully charged�
• Steady yellow indicates battery is charging�
• Blinking red (once per second) indicates battery error
When the Control Unit is not connected to AC power:
• Blinking red (once every 10 seconds) reminds to plug into AC power� (Charge is greater
than 30 %)
• No light indicates the battery has reached a critically low state causing the Control Unit to
enter a battery saving mode� (Charge less than 20 %�) Plug into AC power immediately� If the
battery does not start charging, a battery error may have occurred, call EKOS Help Line�
Hard Controls
Start Start
Stop Stop
A B
Channel A Channel B
Description
