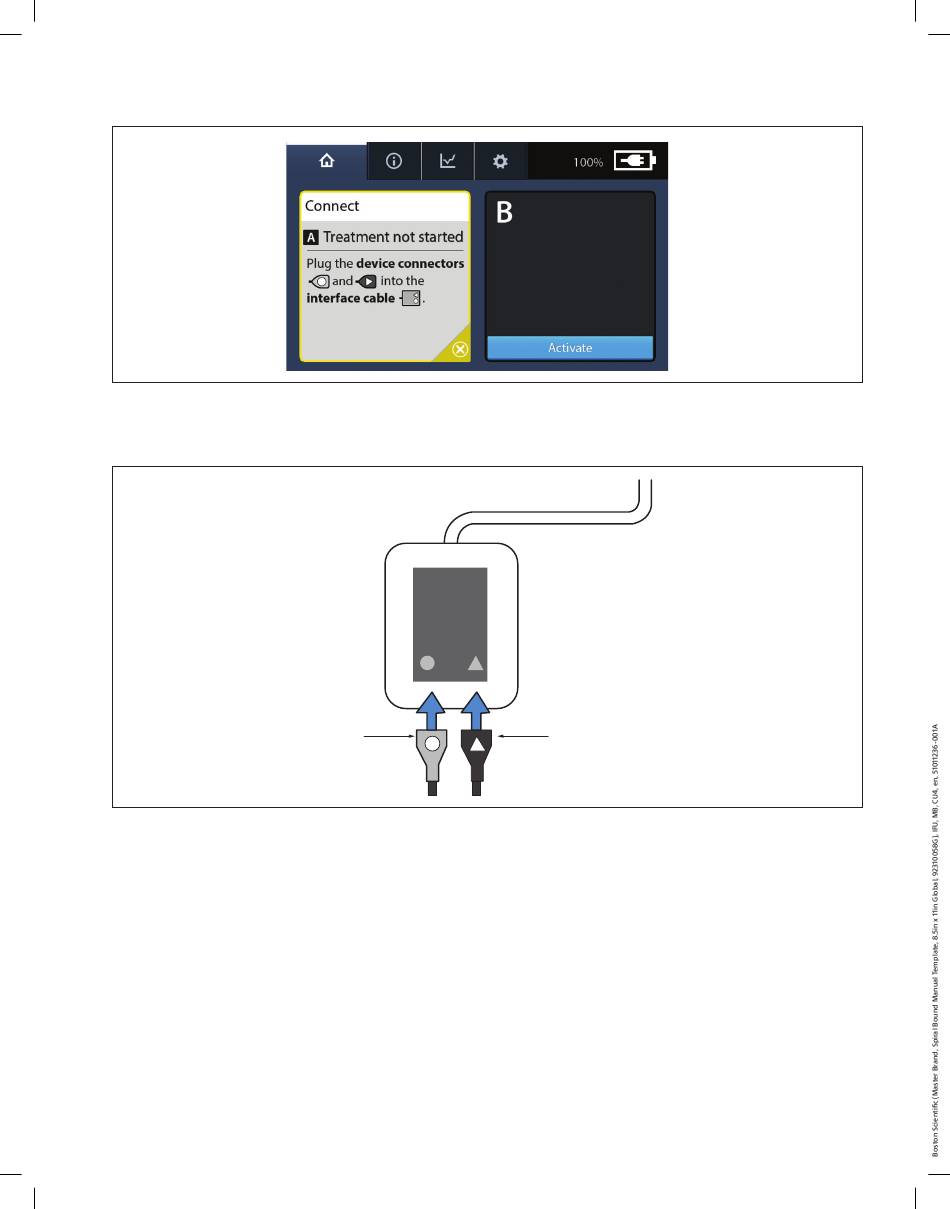

After the Connector Interface Cable is connected to the Control Unit, a connect message displays indicating to connect the device connectors
to the Connector Interface Cable (see Figure 20)�
Figure 20. Connect Device Cables Screen
3� Connect the Ultrasonic Core to the Connector Interface Cable (see Figure 21)�
4� Connect the Infusion Catheter to the Connector Interface Cable (see Figure 21)�
Infusion Catheter
Figure 21. Connect Device Cables Diagram
If the device is not properly connected, a connect message displays indicating the specific device cable that needs to be connected (Infusion
Catheter or the Ultrasonic Core) (see Figure 22 and Figure 23)�
/CMYK
A B
Ultrasonic Core
