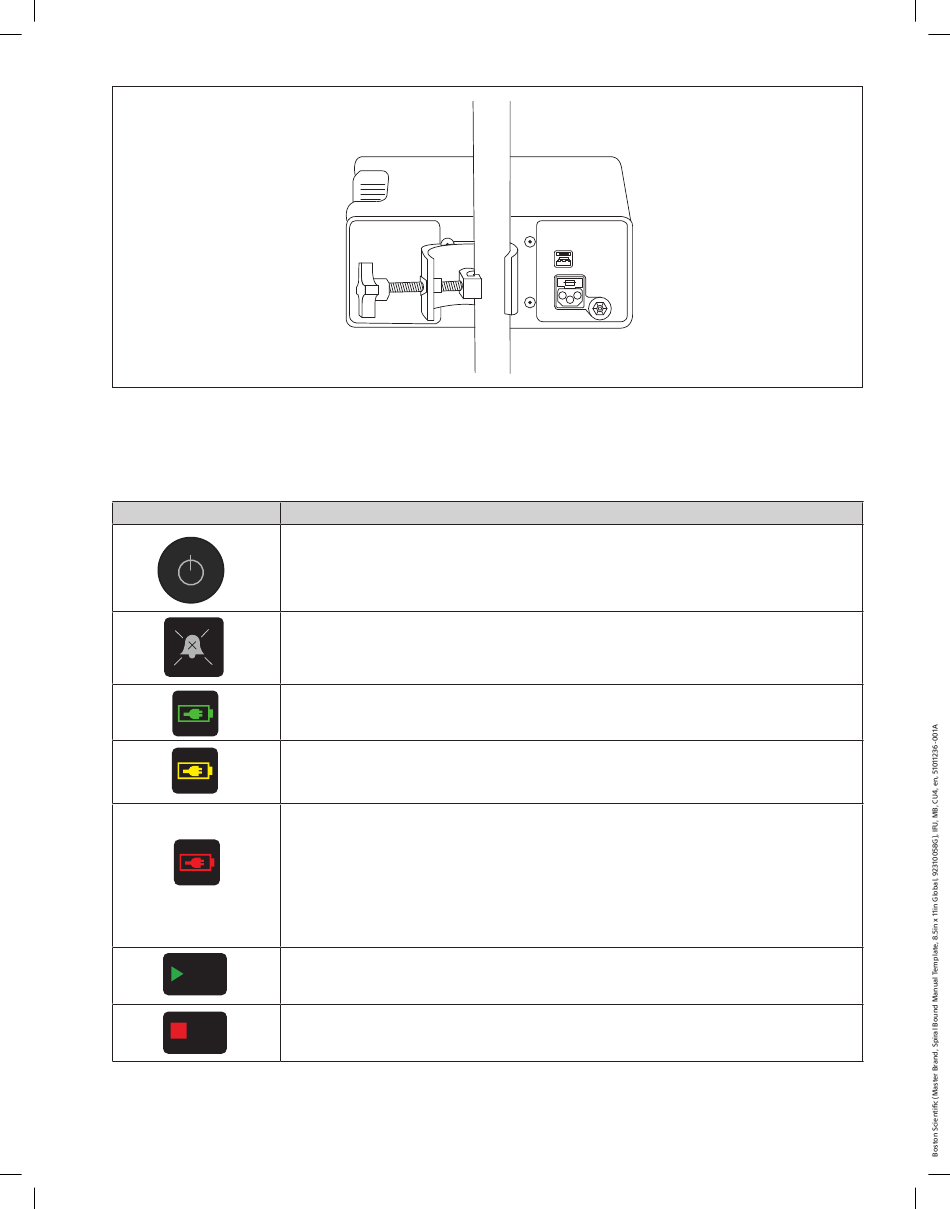

Figure 48. Secure

SYMBOLS AND INDICATORS

The following symbols and indicators appear in these instructions, on the Control Unit, or on its components (e�g�, Connector Interface Cable)�
Table 22.
Symbol
Power Button:
Turns the Control Unit ON and OFF� When the Control Unit is ON, a green LED illuminates� Press and hold
the button for 3 seconds to turn the Control Unit OFF� Press and hold the button for 10 or more seconds to
put the Control Unit into low power/battery-saving mode�
Audio Pause Button:
Silences the audio alert tone for 5 minutes when pressed� Pressing the button when audio is silenced
turns on the audio alert tone�
Steady green indicates Control Unit is connected to AC power and battery is fully charged�
Steady yellow indicates Control Unit is connected to AC power and battery is charging�
Blinking red (once per second) indicates Control Unit is connected to AC power and has a battery error�
Blinking red (once every 10 seconds) indicates Control Unit is not connected to AC and reminds to plug
into AC power� (Charge is greater than 30 %�)
(Blinking)
Blinking red (once every 10 seconds) and an audible alert indicates Control Unit is not connected to AC
and the battery has reached a low charge state and reminds to plug into AC power immediately� (Charge
is between 20 % and 30 %�)
Ultrasound Start Button:
Start
Starts energy transmission for a specific channel when pressed�
Ultrasound Stop Button:
Stop
Stops energy transmission for a specific channel when pressed�
