Channel Messages

A channel message is specific to a particular channel and indicates a task needs to be completed for the Control Unit to provide ultrasound
therapy to that channel� The message may also ask the operator to confirm a particular action that was initiated by the operator� It does not
indicate that an error or failure has occurred� The channel that does not have a channel message will not be interrupted or affected by the
message� Messages occur when a cable needs to be connected, when ultrasound therapy needs to be started or when a confirmation is
needed� Channel messages can occur for both channels at the same time� When a channel message occurs, read the message and follow the
instructions for troubleshooting steps to take�

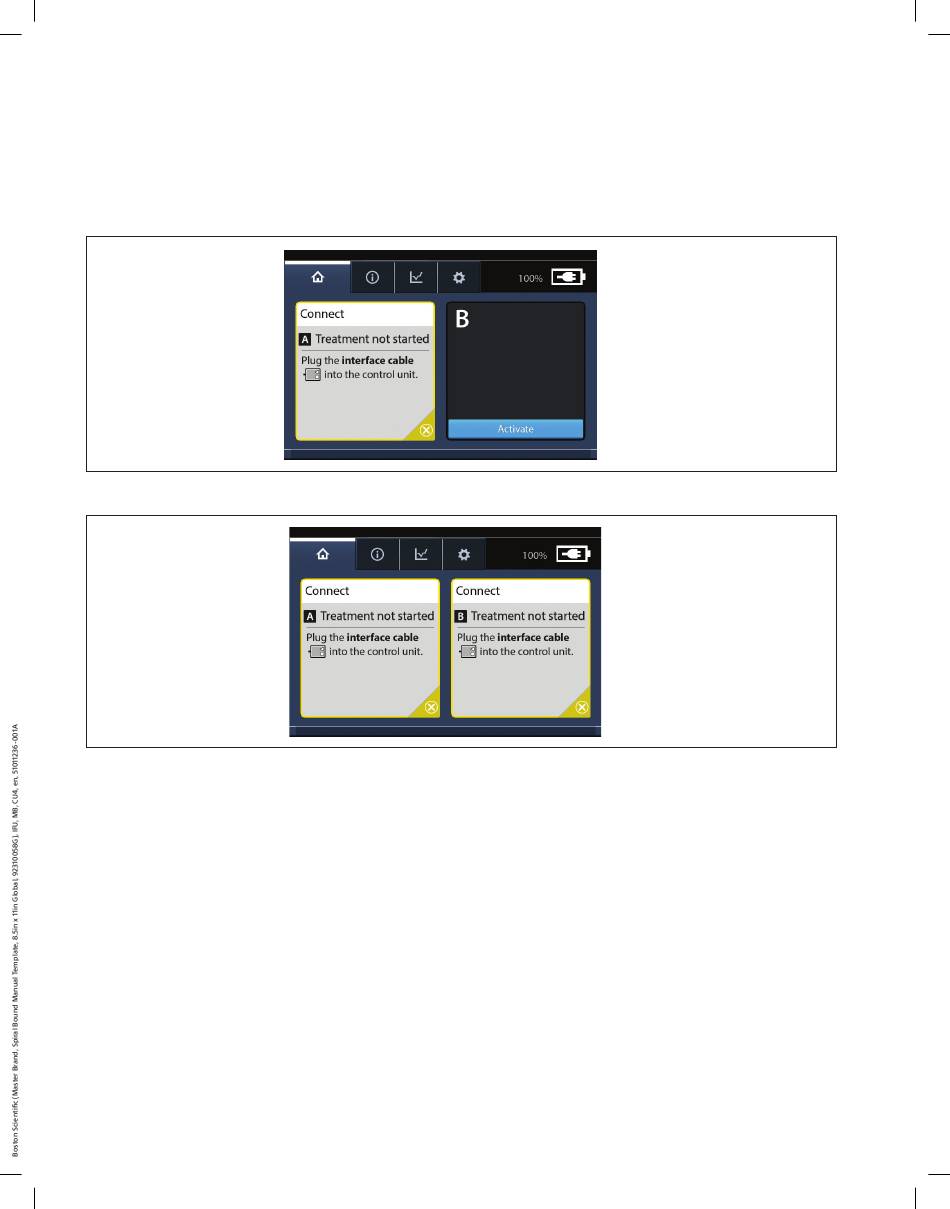

See Figure 44 and Figure 45 below for examples of a channel message:
Figure 44. Channel A Message
Figure 45. Channel A and B Messages
Descriptions of some of the channel messages are:
• Press Start to begin ultrasound�
• Plug the interface cable into the Control Unit�
• Plug the device connectors into the interface cable�
• Plug the ultrasound connector into the interface cable�
• Plug the catheter connector into the interface cable�
• Press Apply to accept the new language and automatically restart Control Unit, or press Cancel to keep the current language�
