Table 3.
Connector

Side View

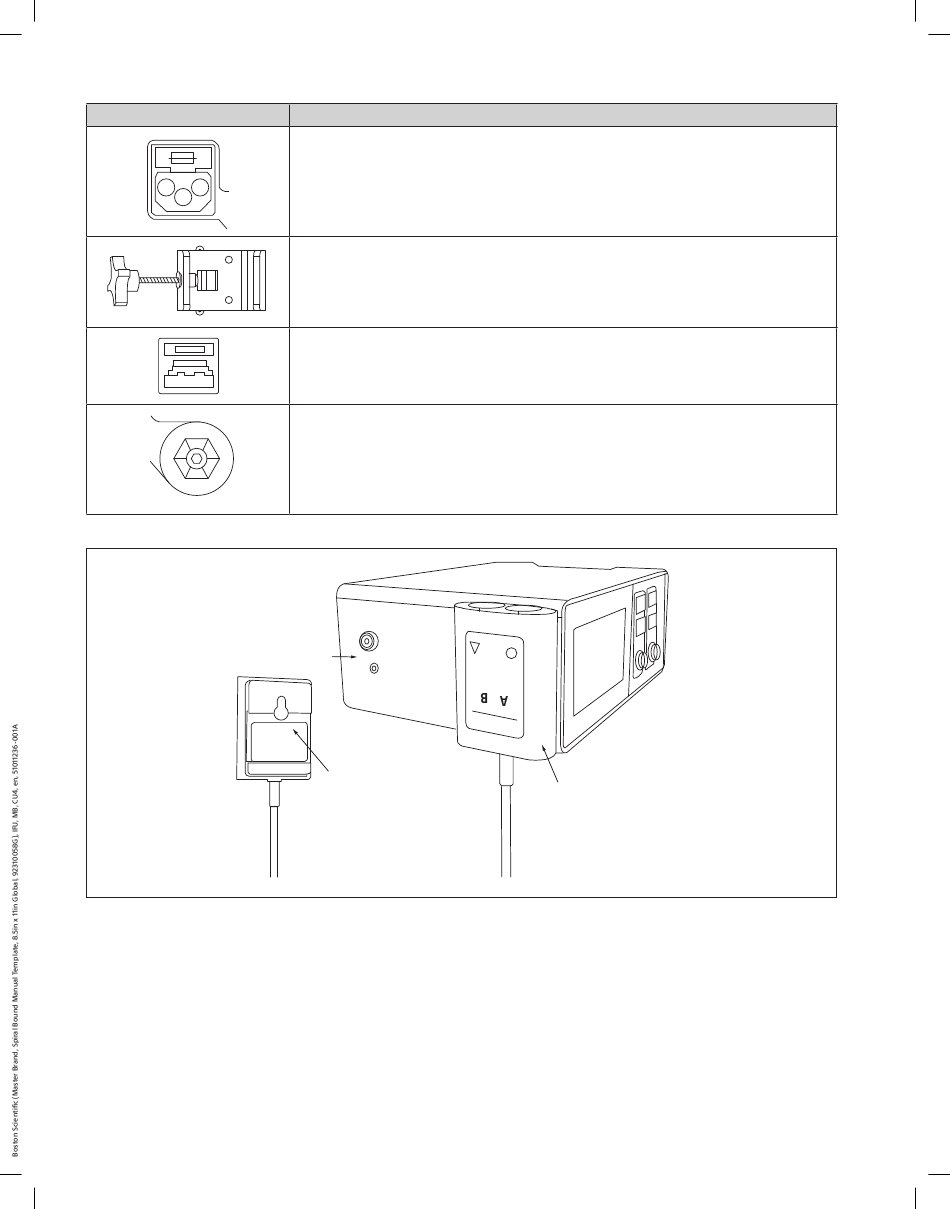

Figure 4. Side View of Control Unit
Screen Layout – Prior to Connection
When the Control Unit is on, the display/touch screen provides helpful messages to guide the operator through proper connection of the
Connector Interface Cables and device cables� The messages are provided for each channel independently and once all cable connections are
made the message will indicate the channel is ready to start the ultrasound therapy� Additionally, the display/touch screen provides menu
tabs to navigate to other screens and indicates the current AC power/battery status (see Figure 5)�
Black (K) ∆E ≤5.0
AC Receptacle:
For connecting the AC power cord to the Control Unit
Mounting Bracket:
Secures Control Unit to infusion stand or EKOS CU 4�0 Cart�
USB Port:
Used by Boston Scientific authorized personnel to download data and event logs using only a USB
memory stick�
Equipotential Terminal:
In the absence of adequate grounding on the A/C mains power line, this terminal can be connected
to a locally available external equipotential line to prevent danger caused by the difference in the
potentials between this device and other devices�
Attachment Bolt
Connector Interface Cable
Attachment Bracket
Description
Connector Interface Cable
Attached for Storage
10
