Screen Layout – During Ultrasound Therapy
During ultrasound therapy, the display/touch screen provides helpful information to monitor the ultrasound therapy� This information is
provided for each channel independently and channels can be interacted with separately� The channels are labeled A and B and can provide
energy for up to two devices at the same time� Additionally, during ultrasound therapy, the display/touch screen continues to provide menu
tabs to navigate to other screens and indicates the current AC power/battery status (see Figure 6�)

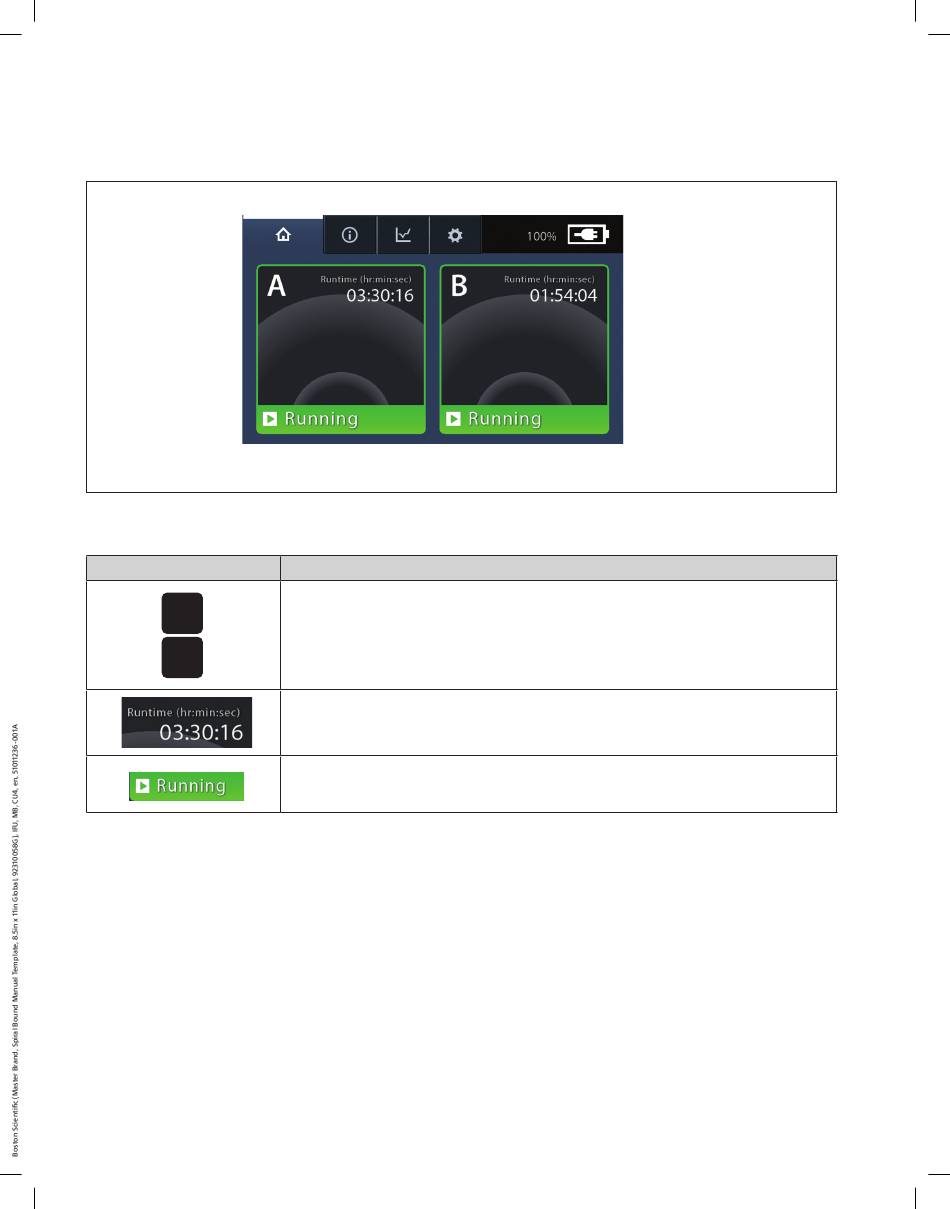

Figure 6. Example Screen-During Ultrasound Therapy
Table 5.
Item
A
B
Black (K) ∆E ≤5.0
Menu Tabs AC Power/Battery Status
Channel A
Message Area
Channel Identifier:
Indicates channel A or channel B�
Note: Messages and information associated with Channel A are provided in the message area on
the left side of the display; messages and information associated with Channel B are provided in the
message area on the right side of the display�
Ultrasound Runtime:
Displays the current runtime for the channel� Runtime is the length of time a device has delivered
ultrasound therapy on a channel� Time is displayed in Hours:Minutes:Seconds�
Running:
A green running indication is displayed when the ultrasound therapy is ON� Additionally, white
bands animate in channel message area�
12
Channel B
Message Area
