Monitoring Ultrasound - Boston Scientific EKOS Control System 4.0 User Manual

Warning: Secure device cables and the Connector Interface Cable using standard practices to preserve the integrity of the device, minimize
device movement at the insertion site, and prevent device dislodgement� If the Connector Interface Cable is dropped, it has sufficient
weight to pull on the device and possibly dislodge it from where it has been inserted into the patient�
7� Press the Start button on the Control Unit for the appropriate channel, when prompted (see Figure 25)�
Start
Warning: Never transmit output power (ultrasound therapy ON) from the Control Unit to the EKOS Device unless it is placed within
the patient anatomy, solution is running through the drug lumen, and coolant is flowing through the coolant lumen� Always turn OFF
the ultrasound before removing the Ultrasonic Core from the Infusion Catheter, otherwise, overheating of the device may occur,
potentially causing damage to the device, burns and/or interruption of therapy� If the device is damaged in this manner and then used to
continue therapy, vascular injury or burns could occur�
Note: If the Start button is not pressed within 5 minutes of successfully connecting the device, the reminder alert tone activates, the alert
icon appears on the display, and the "Ready" title bar flashes alternating between white and yellow�
Pressing the Audio Pause button on the Control Unit silences the reminder for 5 minutes�

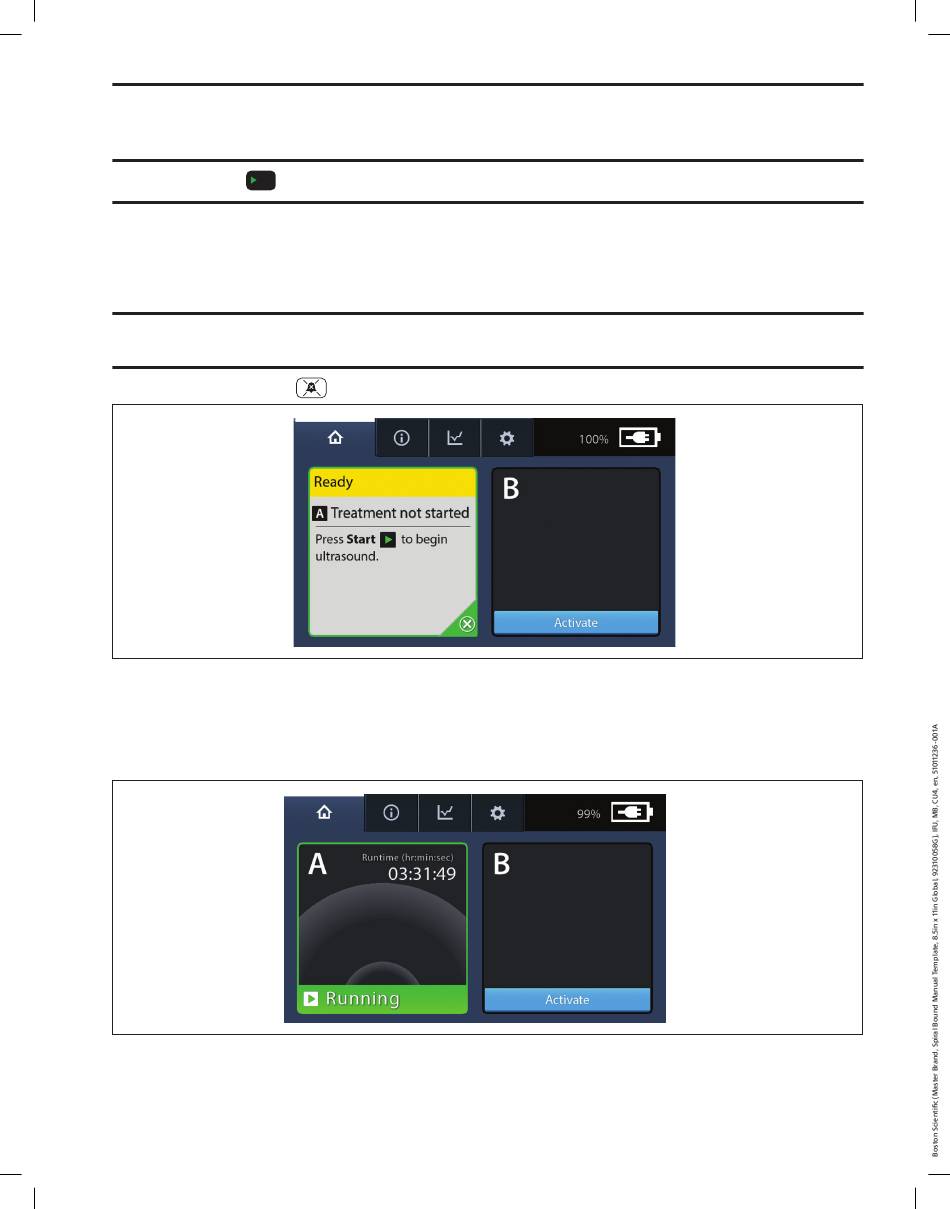

Figure 25. Reminder to Start Treatment Screen

Monitoring Ultrasound

1� Confirm ultrasound therapy is running or ON�
When ultrasound is running, a runtime clock counts up, white bands animate in the channel message area and a green Running indication
displays� The running status is displayed independently for each channel or device (see Figure 26 and Figure 27)�
Figure 26. One Channel with Ultrasound Running Screen
