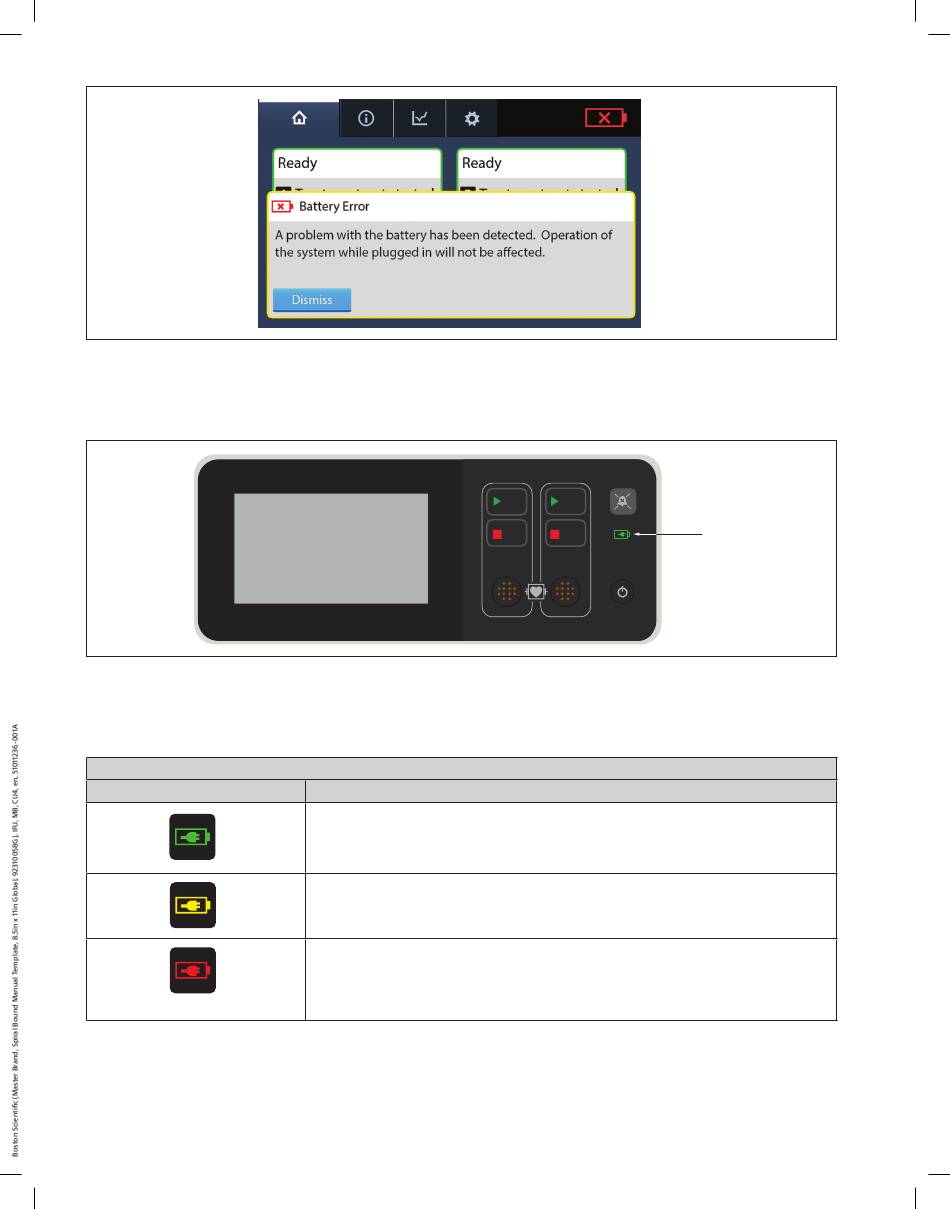

Figure 15. Battery Error Message
Battery Charging Indicator – Control Unit Turned Off
When the Control Unit is turned OFF, a battery icon is illuminated on the front of the Control Unit to indicate the battery charging status (see
Figure 16)�
Figure 16. Charging Indicator on Control Panel
The charging indicator on the front of the Control Unit changes color to indicate the charging status� If the battery reaches a critically low state,
the Control Unit enters battery saving mode and the charging indicator is not illuminated�
Table 13.
Indicator
(Blinking)
Black (K) ∆E ≤5.0
Control Unit Turned Off & AC Connected
Description
Steady green indicates Control Unit is connected to AC power and battery is fully charged�
Steady yellow indicates Control Unit is connected to AC power and battery is charging�
Blinking red (once per second) indicates Control Unit is connected to AC power and has
a battery error�
28
Start Start
Stop Stop
A B
Charging
Indicator
