Back View - Boston Scientific EKOS Control System 4.0 User Manual

Control/Indicator/Connector
Start Start
Stop Stop
A B
Start
Stop

Back View

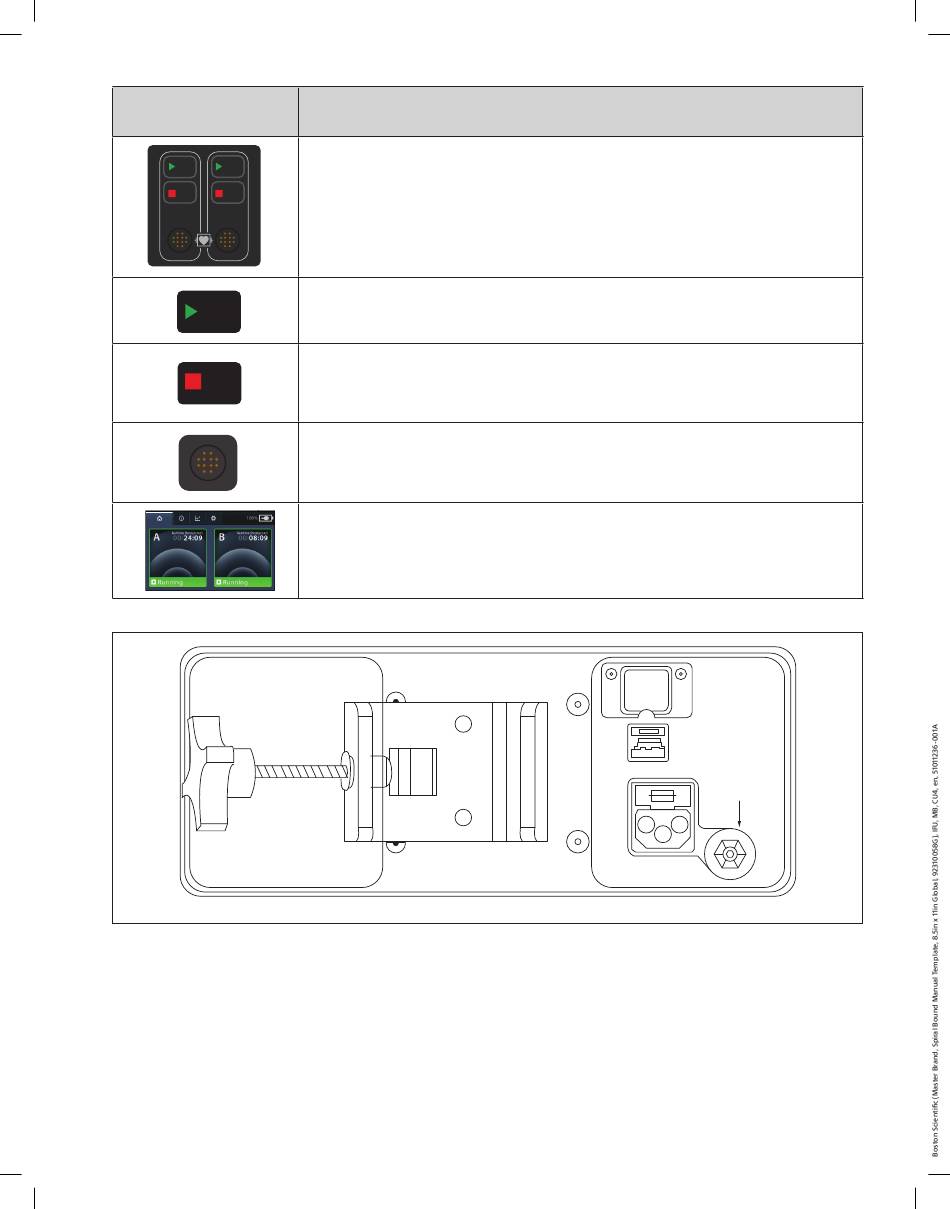

Figure 3. Back View of Control Unit
/CMYK
Ultrasound Channel:
The Control Unit has two ports or channels for Connector Interface Cable connections� The channels are
labeled A and B and can provide energy for up to two devices at the same time�
Ultrasound Start Button:
Starts energy transmission for a specific channel when pressed�
Ultrasound Stop Button:
Stops energy transmission for a specific channel when pressed�
Connector Interface Cable Receptacle:
For connecting the Connector Interface Cable (s) to the Control Unit�
Display/Touch Screen:
Shows ultrasound and battery information; and other messages, settings and soft key buttons�
Mounting Bracket
Description
AC Receptacle
9
Service
Panel/Port
USB Port
Equipotential
Terminal
