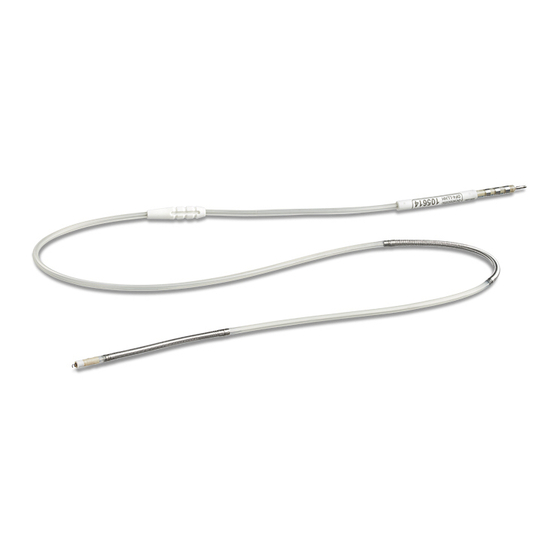

Steroid-eluting extendable/retractable helix endocardial defibrillation leads
Hide thumbs
Table of Contents

Advertisement

Quick Links

358988-001 EN Europe.book Page 1 Monday, November 24, 2014 11:17 AM
PHYSICIAN'S LEAD MANUAL
ENDOTAK RELIANCE
Steroid-Eluting Extendable/Retractable Helix
Endocardial Defibrillation Leads
ENDOTAK RELIANCE
ENDOTAK RELIANCE S
ENDOTAK RELIANCE G
ENDOTAK RELIANCE SG
0157, 0158
0138
0184, 0185, 0186, 0187
0180, 0181, 0182, 0183
™
