Battery Gauge

When the Control Unit is turned ON and is powered by the battery, a battery gauge shows the level of battery charge� As battery
charge decreases, the battery gauge shows the decrease in battery charge� The battery gauge with a red bar indicates a very low or fully
depleted battery�
Table 12.
Item

Low Battery Notification

If the Control Unit is operating on battery power and the battery charge level is 15 % or less, a low battery message with an alert icon displays
and an audible alert sounds� The percentage of remaining charge and the battery gauge with a red bar in the upper right corner of the display
indicates the level of battery charge� Connect to AC power to continue to use the Control Unit� The message remains on the display and the
tone repeats every minute until the Control Unit is connected to AC power or the Dismiss button on the touchscreen is pressed (see Figure 13)�
Note: If the Dismiss button was pressed and the battery charge level drops to 10 %, the low battery message and alert is repeated

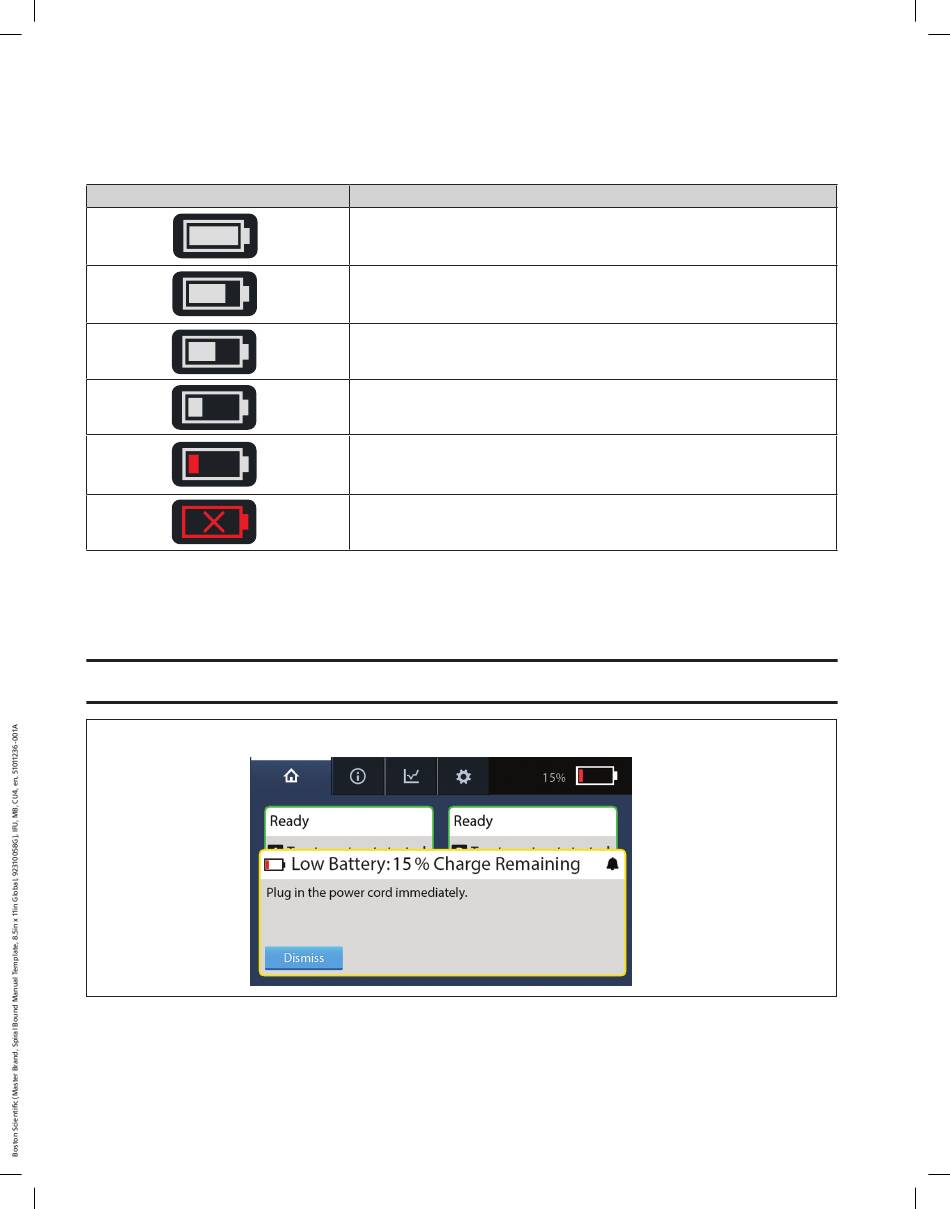

Figure 13. Low Battery Message
Black (K) ∆E ≤5.0
Description
76 % - 100 %
51 % - 75 %
26 % - 50 %
16 %-25 %
0 % - 15 %
If the battery is defective the battery icon is red with an X
Battery Power/Battery Gauge
