Boston Scientific EKOS Control System 4.0 User Manual page 32

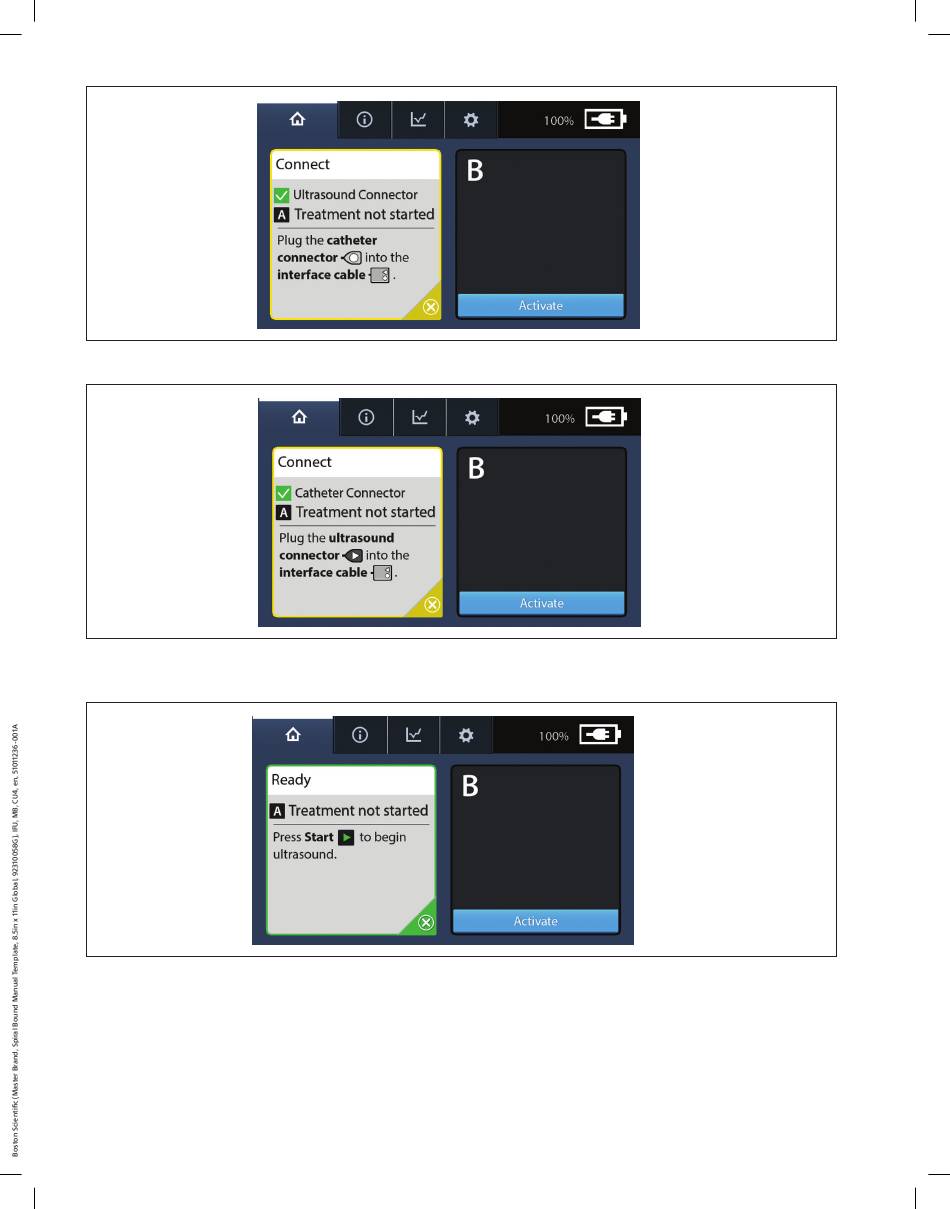

Figure 22. Connect Infusion Catheter Screen
Figure 23. Connect Ultrasonic Core Screen
Once the device is properly connected, a ready message displays indicating the Control Unit is ready (see Figure 24)�
Figure 24. Ready Screen
5� Turn on the drug and coolant pumps, and set the specified flow rate per the physician's orders and within the flow rates specified in
the EKOS Device Instructions for Use�
6� Secure the housing end of the Connector Interface Cable near the patient using standard hospital practices�
