Introduction

User Manual

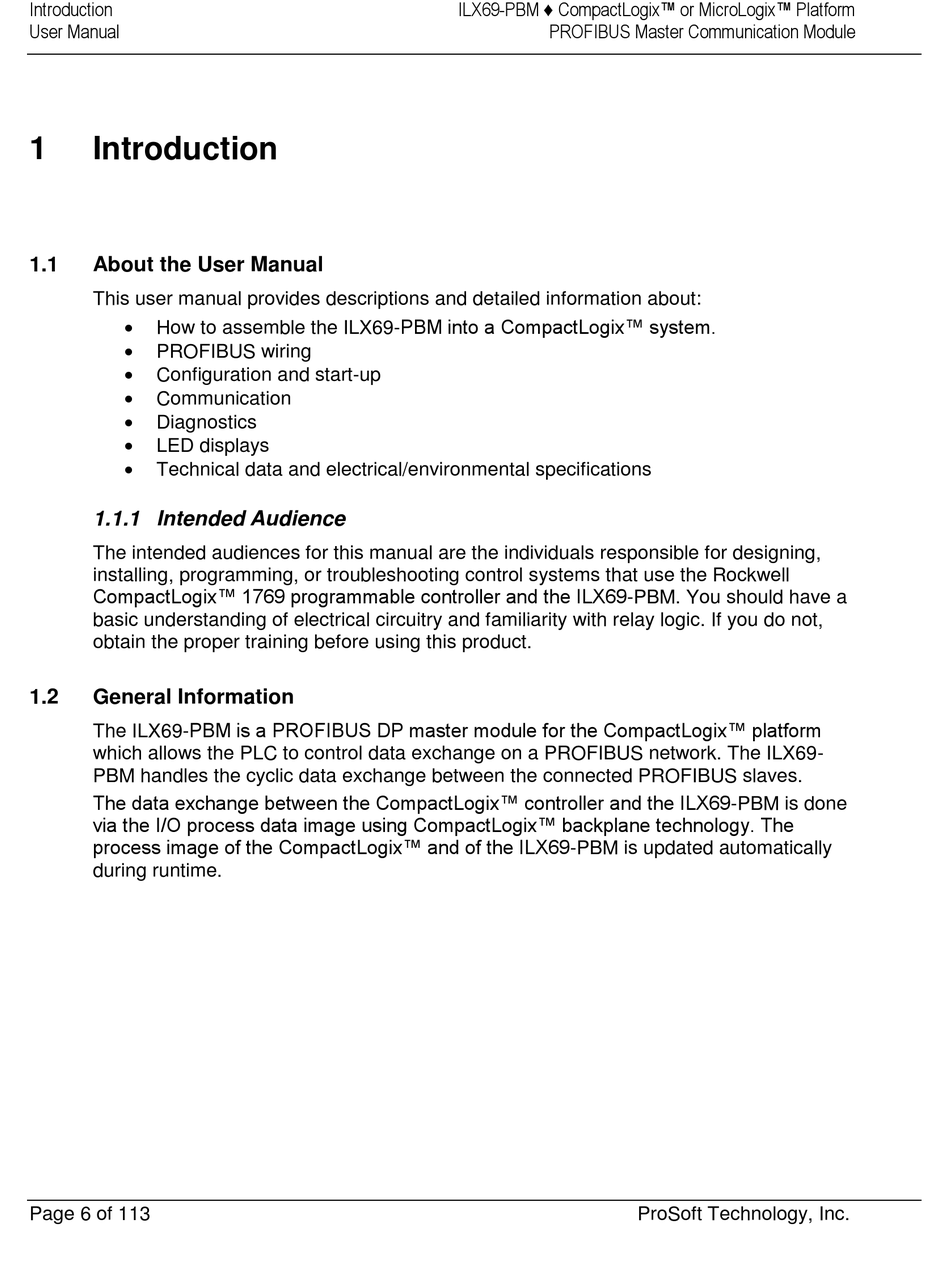

1 Introduction
1.1

About the User Manual

This user manual provides descriptions and detailed information about:

How to assemble the ILX69-PBM into a CompactLogix™ system.

PROFIBUS wiring

Configuration and start-up

Communication

Diagnostics

LED displays

Technical data and electrical/environmental specifications

1.1.1 Intended Audience

The intended audiences for this manual are the individuals responsible for designing,
installing, programming, or troubleshooting control systems that use the Rockwell
CompactLogix™ 1769 programmable controller and the ILX69-PBM. You should have a
basic understanding of electrical circuitry and familiarity with relay logic. If you do not,
obtain the proper training before using this product.
1.2

General Information

The ILX69-PBM is a PROFIBUS DP master module for the CompactLogix™ platform
which allows the PLC to control data exchange on a PROFIBUS network. The ILX69-
PBM handles the cyclic data exchange between the connected PROFIBUS slaves.
The data exchange between the CompactLogix™ controller and the ILX69-PBM is done
via the I/O process data image using CompactLogix™ backplane technology. The
process image of the CompactLogix™ and of the ILX69-PBM is updated automatically
during runtime.
