ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
2

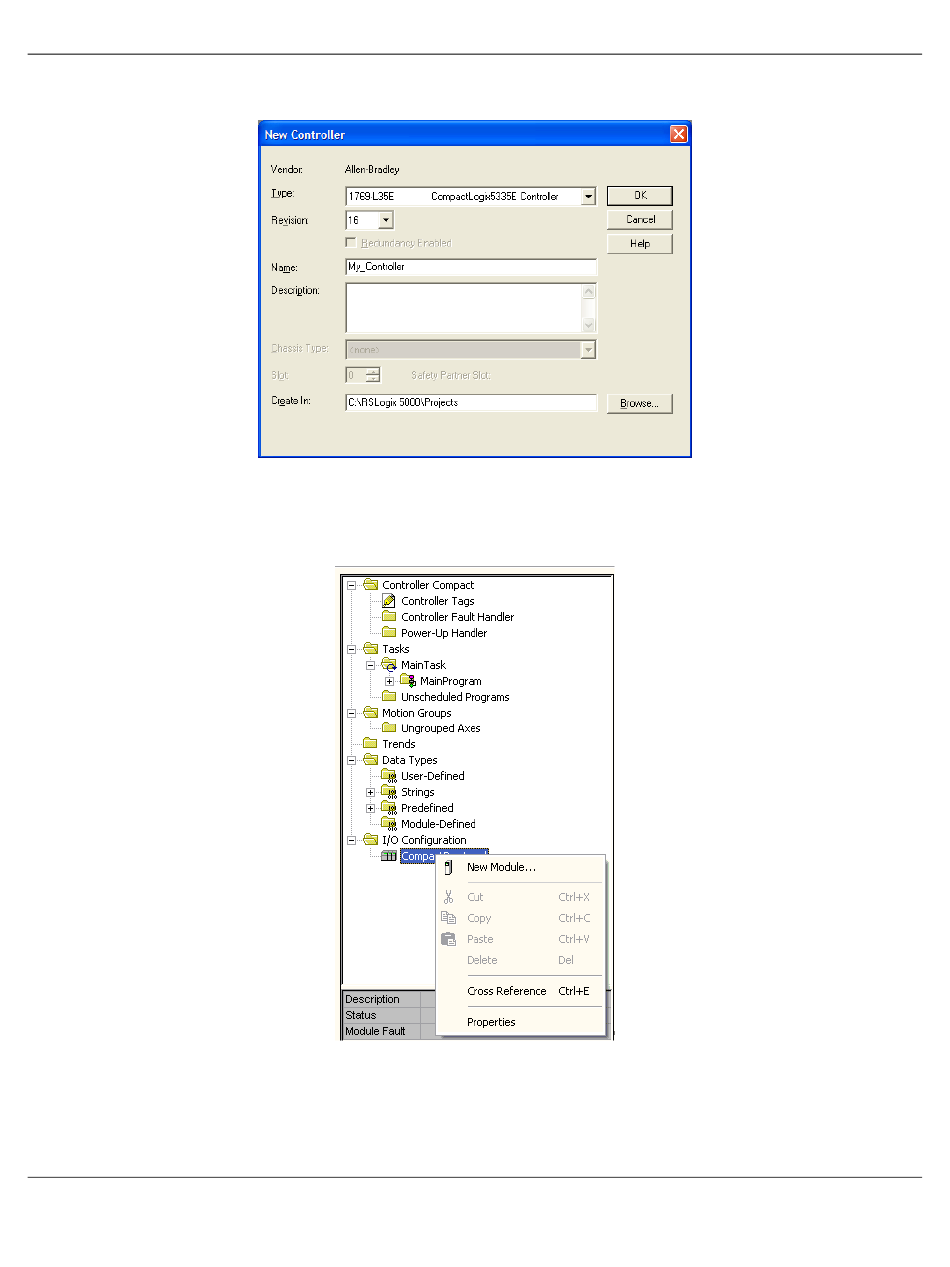

Select your controller T
3
Click OK.
4
Right click on the I/O configuration > CompactBus Local of the controller project.
5
Select New Module from the context menu as shown below.
ProSoft Technology, Inc.
and R
16 or newer.
YPE
EVISION
Configuration and Start-Up
User Manual
Page 27 of 113
