Communication; Studio 5000 Profibus Data Values; Profibus Network Input Data; Profibus Network Output Data - ProSoft Technology ILX69-PBM User Manual

ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
6

Communication

6.1

Studio 5000 PROFIBUS Data Values

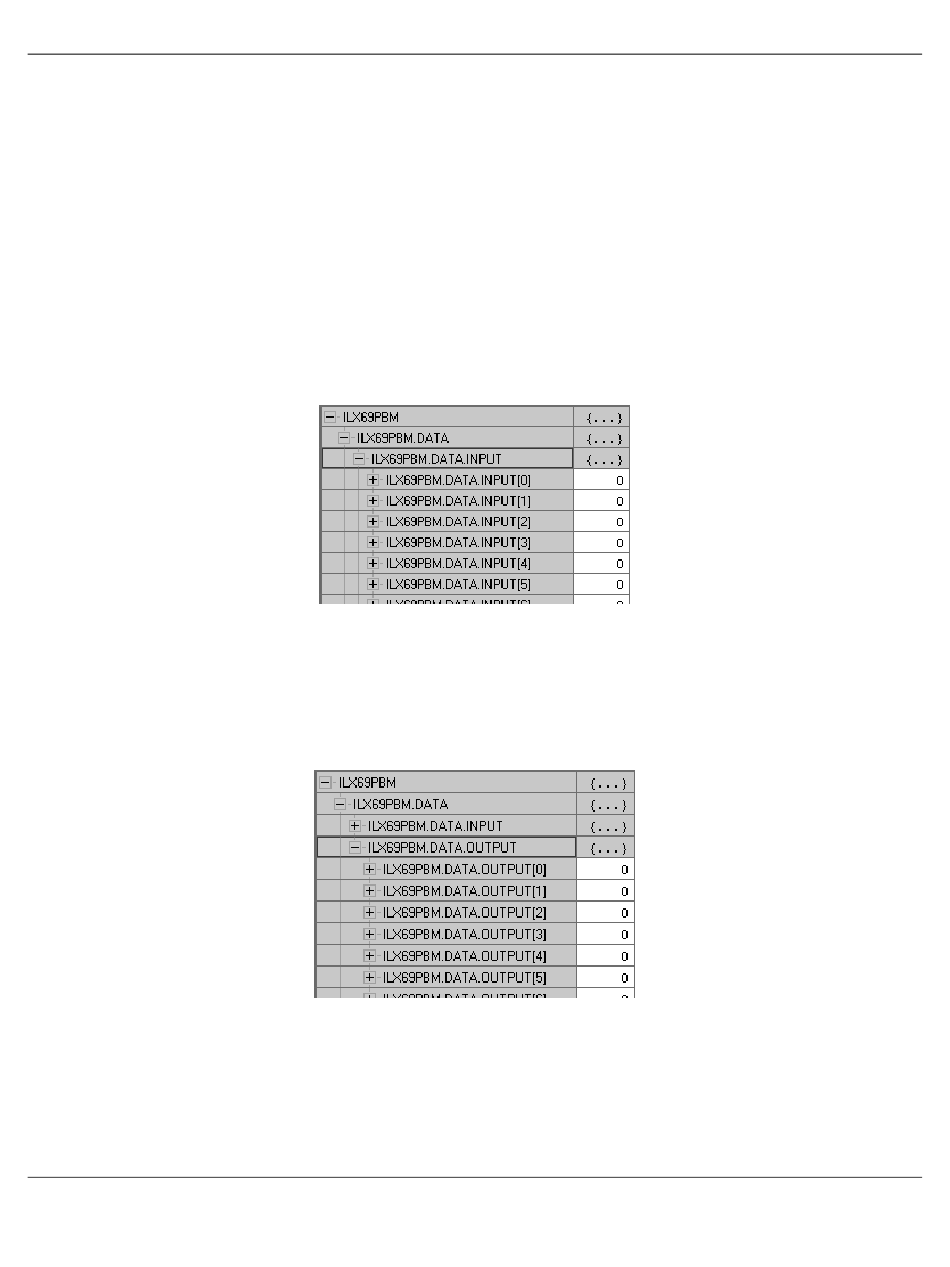

The ILX69-PBM PROFIBUS network data values (input and output) are located in the
Controller Tags of Studio 5000.

6.1.1 PROFIBUS Network Input Data

The PROFIBUS network input data is stored in the ILX69PBM.DATA.INPUT array. All
incoming data received from the PROFIBUS slaves is stored here.

6.1.2 PROFIBUS Network Output Data

The PROFIBUS network output data is stored in the ILX69PBM.DATA.OUTPUT array.
All outgoing data from the ILX69-PBM to be sent to the PROFIBUS slaves is to be
placed here.
