Configuration and Start-Up
User Manual

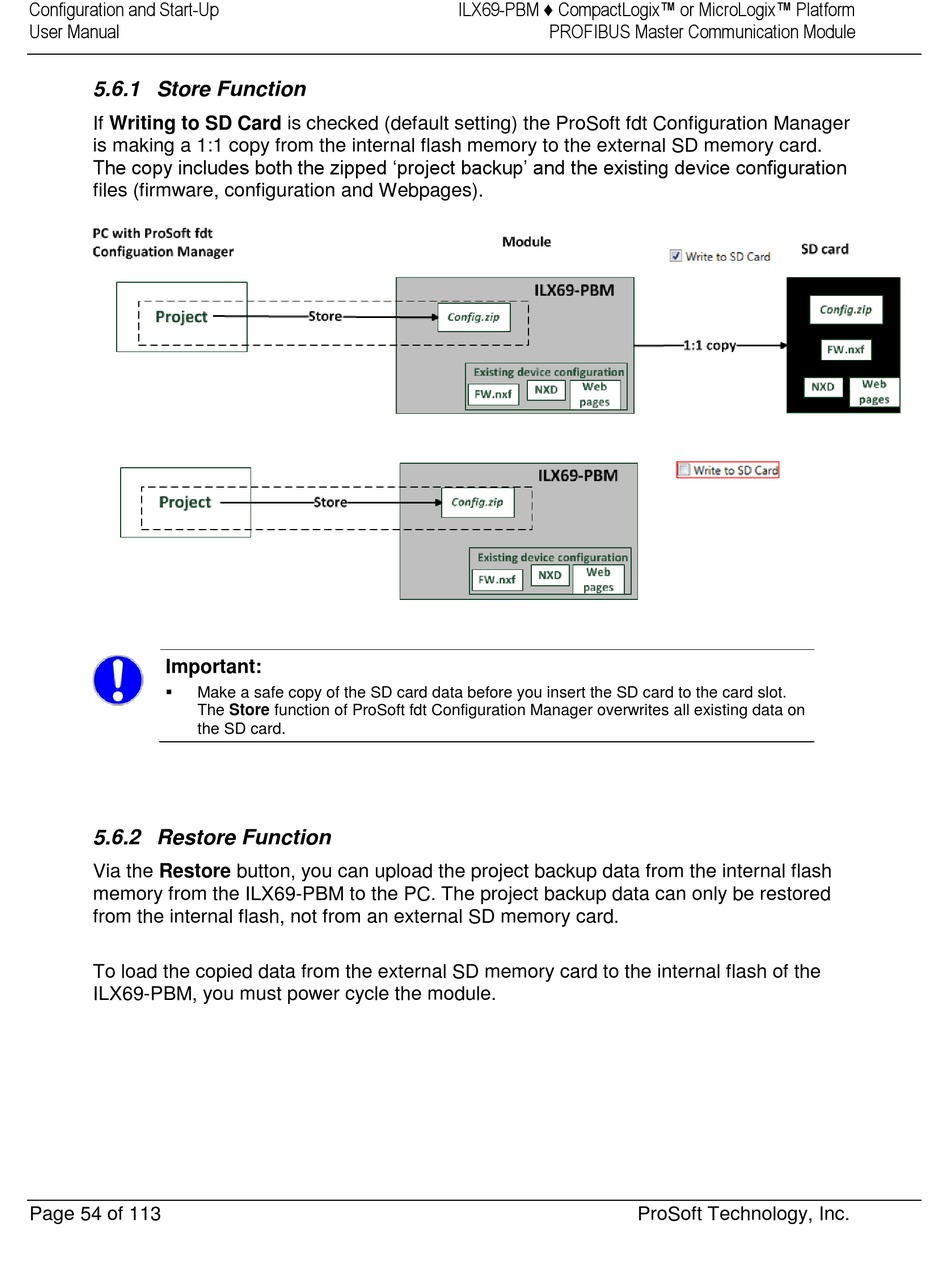

5.6.1 Store Function

If Writing to SD Card is checked (default setting) the ProSoft fdt Configuration Manager
is making a 1:1 copy from the internal flash memory to the external SD memory card.
The copy includes both the zipped 'project backup' and the existing device configuration
files (firmware, configuration and Webpages).
Important:
Make a safe copy of the SD card data before you insert the SD card to the card slot.
The Store function of ProSoft fdt Configuration Manager overwrites all existing data on
the SD card.

5.6.2 Restore Function

Via the Restore button, you can upload the project backup data from the internal flash
memory from the ILX69-PBM to the PC. The project backup data can only be restored
from the internal flash, not from an external SD memory card.
To load the copied data from the external SD memory card to the internal flash of the
ILX69-PBM, you must power cycle the module.
Page 54 of 113
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
ProSoft Technology, Inc.
