Slave Settings

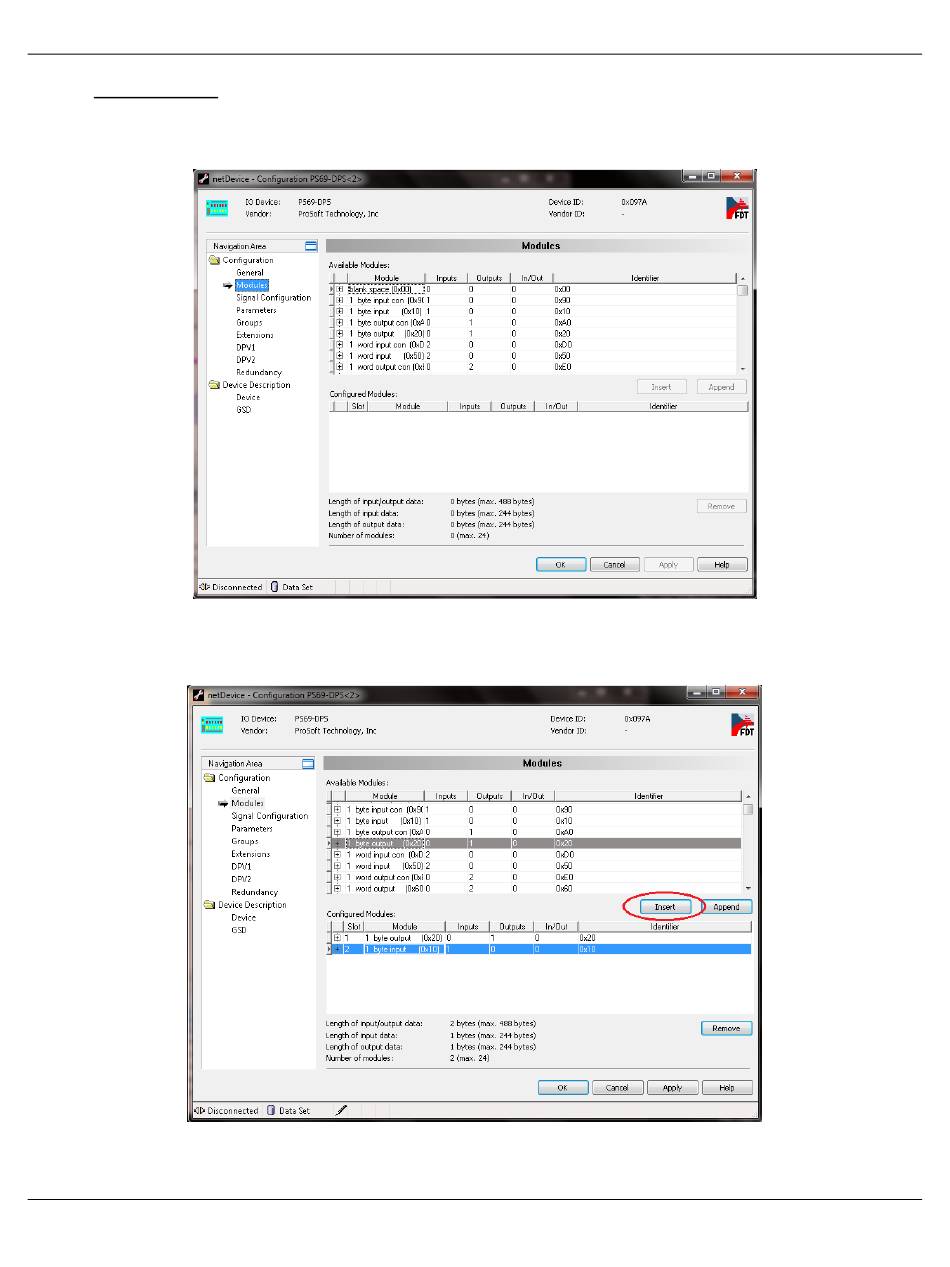

1 Double-click on the slave icon in the Network view. A slave-specific configuration
dialog box similar to the one shown below appears.
2 Under C
ONFIGURATION
inputs and outputs you will use for the slave.
3 Click A
PPLY
Page 40 of 113
> M
ODULES
and then OK.
