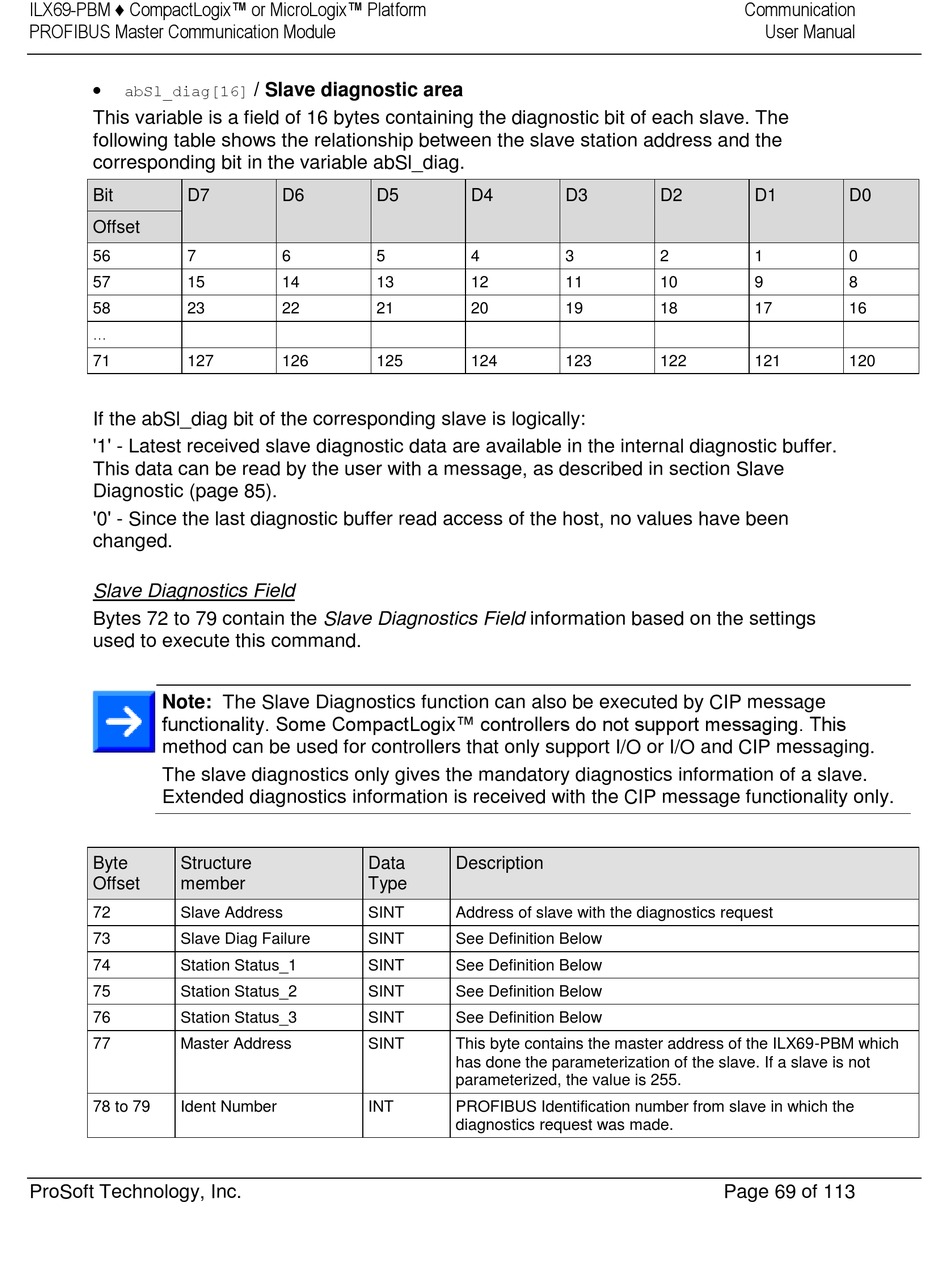

abSl_diag[16]
This variable is a field of 16 bytes containing the diagnostic bit of each slave. The
following table shows the relationship between the slave station address and the
corresponding bit in the variable abSl_diag.
Bit D7
Offset
56 7
57 15
58 23
...
71 127
If the abSl_diag bit of the corresponding slave is logically:
'1' - Latest received slave diagnostic data are available in the internal diagnostic buffer.
This data can be read by the user with a message, as described in section Slave
Diagnostic (page 85).
'0' - Since the last diagnostic buffer read access of the host, no values have been
changed.
Slave Diagnostics Field
Bytes 72 to 79 contain the Slave Diagnostics Field information based on the settings
used to execute this command.
Note: The Slave Diagnostics function can also be executed by CIP message
functionality. Some CompactLogix™ controllers do not support messaging. This
method can be used for controllers that only support I/O or I/O and CIP messaging.
The slave diagnostics only gives the mandatory diagnostics information of a slave.
Extended diagnostics information is received with the CIP message functionality only.
Byte Structure
Offset member
72 Slave Address
73 Slave Diag Failure
74 Station Status_1
75 Station Status_2
76 Station Status_3
77 Master Address
78 to 79 Ident Number
