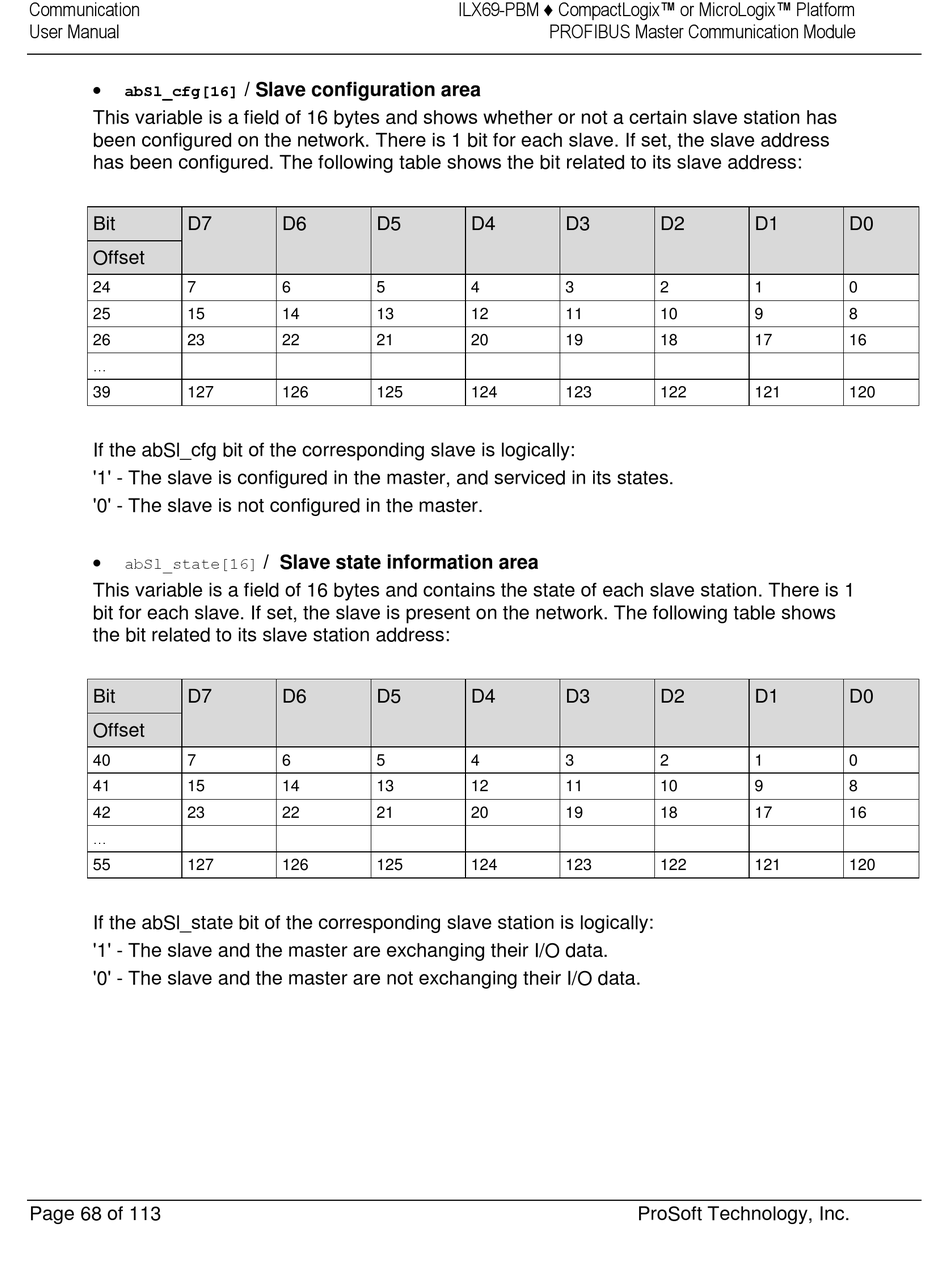

abSl_cfg[16]
This variable is a field of 16 bytes and shows whether or not a certain slave station has
been configured on the network. There is 1 bit for each slave. If set, the slave address
has been configured. The following table shows the bit related to its slave address:
Bit D7
Offset
24 7
25 15
26 23
...
39 127
If the abSl_cfg bit of the corresponding slave is logically:
'1' - The slave is configured in the master, and serviced in its states.
'0' - The slave is not configured in the master.

abSl_state[16]
This variable is a field of 16 bytes and contains the state of each slave station. There is 1
bit for each slave. If set, the slave is present on the network. The following table shows
the bit related to its slave station address:
Bit D7
Offset
40 7
41 15
42 23
...
55 127
If the abSl_state bit of the corresponding slave station is logically:
'1' - The slave and the master are exchanging their I/O data.
'0' - The slave and the master are not exchanging their I/O data.
Page 68 of 113
/ Slave configuration area
D6 D5
6 5
14 13
22 21
126 125
/ Slave state information area
D6 D5
6 5
14 13
22 21
126 125
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
D4 D3
4 3
12 11
20 19
124 123
D4 D3
4 3
12 11
20 19
124 123
D2 D1
2 1
10 9
18 17
122 121
D2 D1
2 1
10 9
18 17
122 121
ProSoft Technology, Inc.
D0
0
8
16
120
D0
0
8
16
120
