Introduction
User Manual
1.4

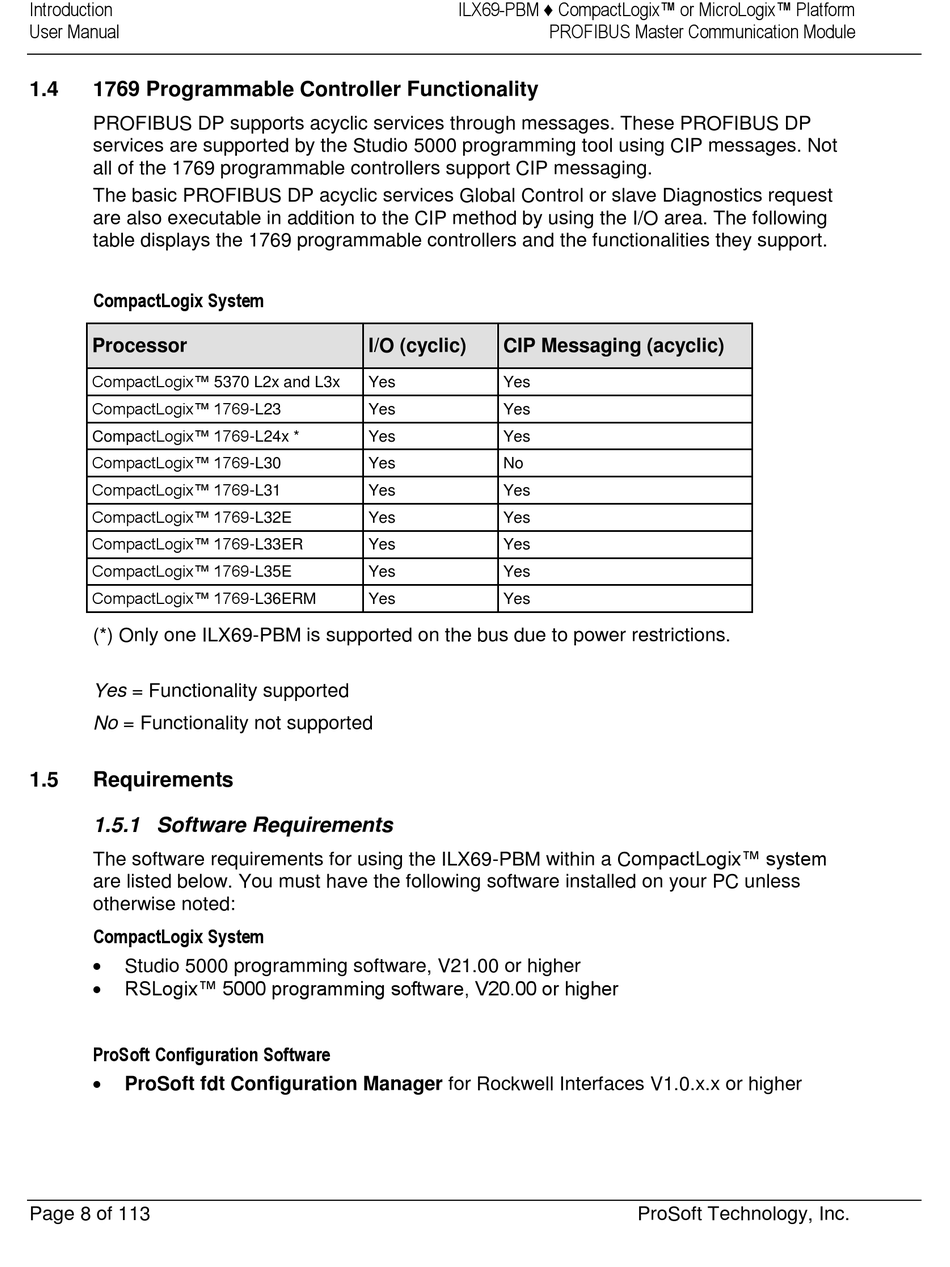

1769 Programmable Controller Functionality

PROFIBUS DP supports acyclic services through messages. These PROFIBUS DP
services are supported by the Studio 5000 programming tool using CIP messages. Not
all of the 1769 programmable controllers support CIP messaging.
The basic PROFIBUS DP acyclic services Global Control or slave Diagnostics request
are also executable in addition to the CIP method by using the I/O area. The following
table displays the 1769 programmable controllers and the functionalities they support.
CompactLogix System
Processor
CompactLogix™ 5370 L2x and L3x
CompactLogix™ 1769-L23
CompactLogix™ 1769-L24x *
CompactLogix™ 1769-L30
CompactLogix™ 1769-L31
CompactLogix™ 1769-L32E
CompactLogix™ 1769-L33ER
CompactLogix™ 1769-L35E
CompactLogix™ 1769-L36ERM
(*) Only one ILX69-PBM is supported on the bus due to power restrictions.
Yes = Functionality supported
No = Functionality not supported
1.5

Requirements

1.5.1 Software Requirements

The software requirements for using the ILX69-PBM within a CompactLogix™ system
are listed below. You must have the following software installed on your PC unless
otherwise noted:
CompactLogix System

Studio 5000 programming software, V21.00 or higher

RSLogix™ 5000 programming software, V20.00 or higher
ProSoft Configuration Software

ProSoft fdt Configuration Manager for Rockwell Interfaces V1.0.x.x or higher
Page 8 of 113
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
I/O (cyclic) CIP Messaging (acyclic)
Yes Yes
Yes Yes
Yes Yes
Yes No
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
