5.6

Project Storage

The ProSoft fdt Configuration Manager provides procedures to store or restore project
backup data directly to and from the ILX69-PBM internal flash memory. A 1:1 copy from
the internal flash memory data can be made to an external SD memory card inserted
into the module. The project backup data comprises of the ProSoft fdt Configuration
Manager solution files, including the GSD files used in this solution. It is zipped as a
single config.zip file.

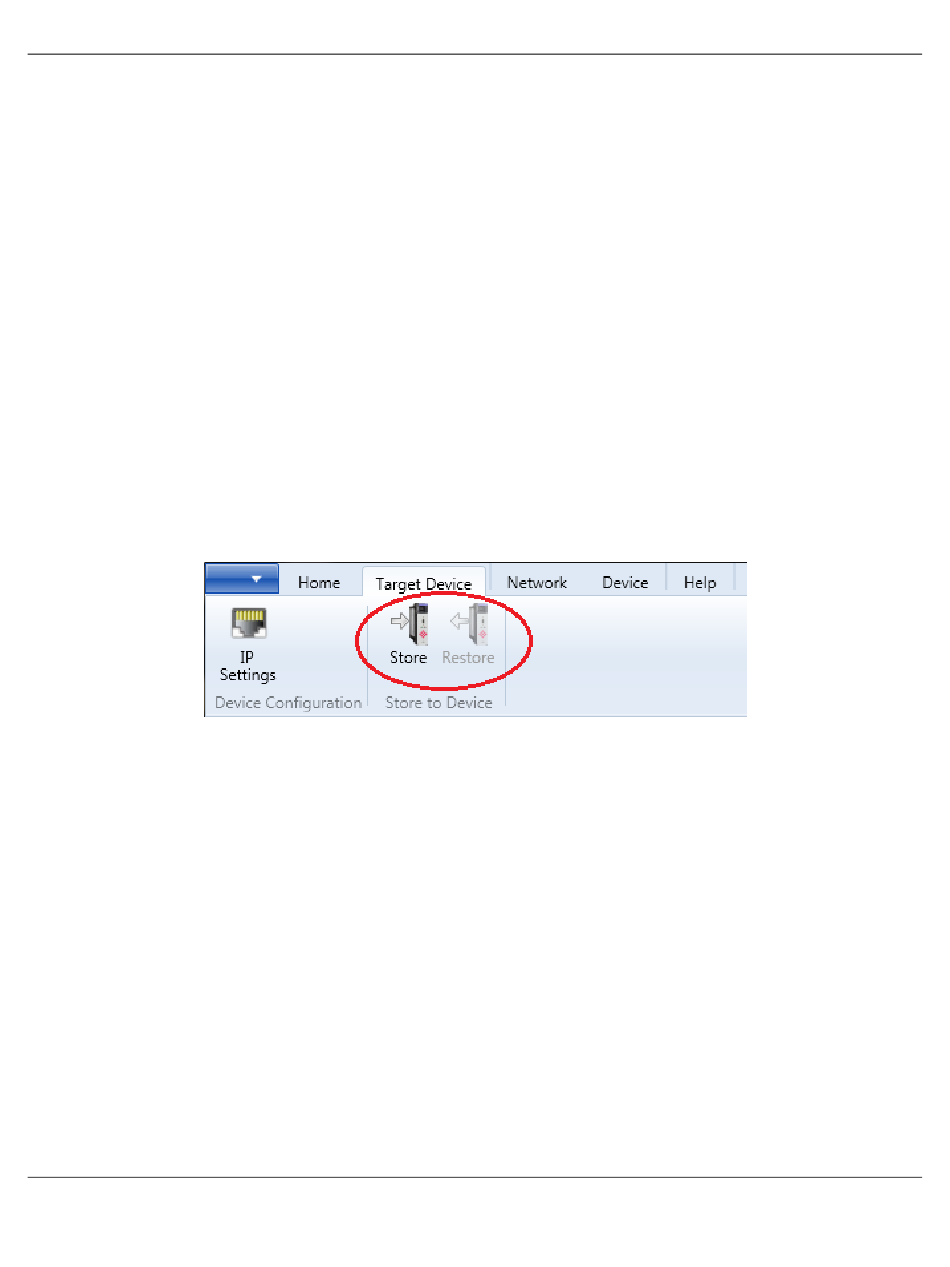

The S function allows you to download the current project file with all related
TORE
information, including GSD files. These are zipped together from the PC to the internal
flash memory of the ILX69-PBM. This is allowed only if the user is logged in as
Administrator (ProSoft fdt Configuration Manager User Access Control).
The R
ESTORE
when the PC with the original configuration is not at your disposal. As the project backup
is saved in the device via the Restore function, you can use the diagnostics functions in
the ProSoft Configuration Manager. The functions Store, Restore and Write to an SD
card are not available for legacy projects.
ProSoft Technology, Inc.
function allows you to upload the project data to the PC. This is helpful
