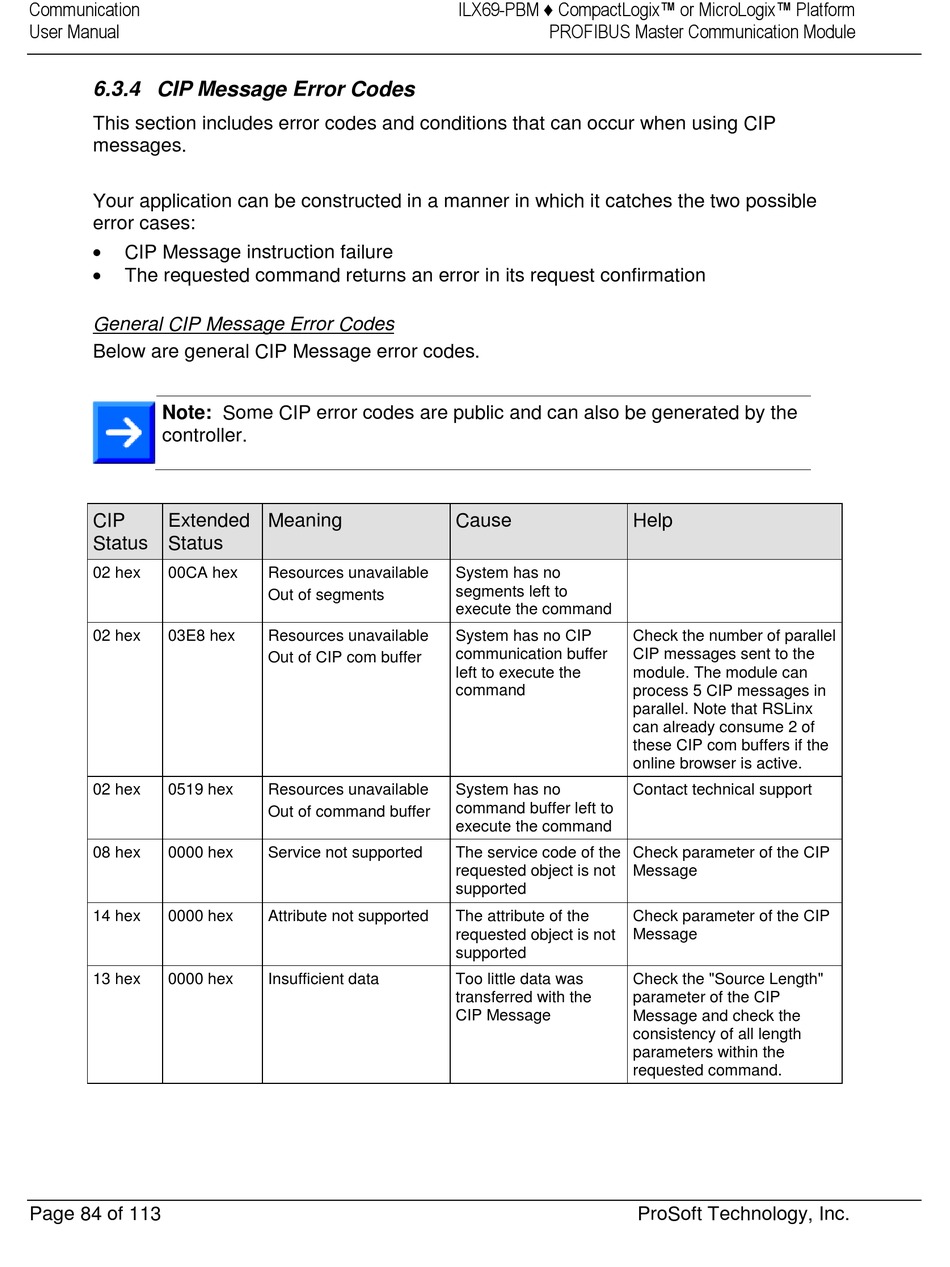

6.3.4 CIP Message Error Codes

This section includes error codes and conditions that can occur when using CIP
messages.
Your application can be constructed in a manner in which it catches the two possible
error cases:

CIP Message instruction failure

The requested command returns an error in its request confirmation
General CIP Message Error Codes
Below are general CIP Message error codes.
Note: Some CIP error codes are public and can also be generated by the
controller.
CIP Extended
Status Status
02 hex 00CA hex
02 hex 03E8 hex
02 hex 0519 hex
08 hex 0000 hex
14 hex 0000 hex
13 hex 0000 hex
Page 84 of 113
Meaning
Resources unavailable
Out of segments
Resources unavailable
Out of CIP com buffer
Resources unavailable
Out of command buffer
Service not supported
Attribute not supported
Insufficient data
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
Cause Help
System has no
segments left to
execute the command
System has no CIP Check the number of parallel
communication buffer CIP messages sent to the
left to execute the module. The module can
command
process 5 CIP messages in
parallel. Note that RSLinx
can already consume 2 of
these CIP com buffers if the
online browser is active.
System has no Contact technical support
command buffer left to
execute the command
The service code of the Check parameter of the CIP
Message
requested object is not
supported
The attribute of the Check parameter of the CIP
requested object is not Message
supported
Too little data was Check the "Source Length"
transferred with the parameter of the CIP
CIP Message Message and check the
consistency of all length
parameters within the
requested command.
