ProSoft Technology ILX69-PBM User Manual page 33

ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module

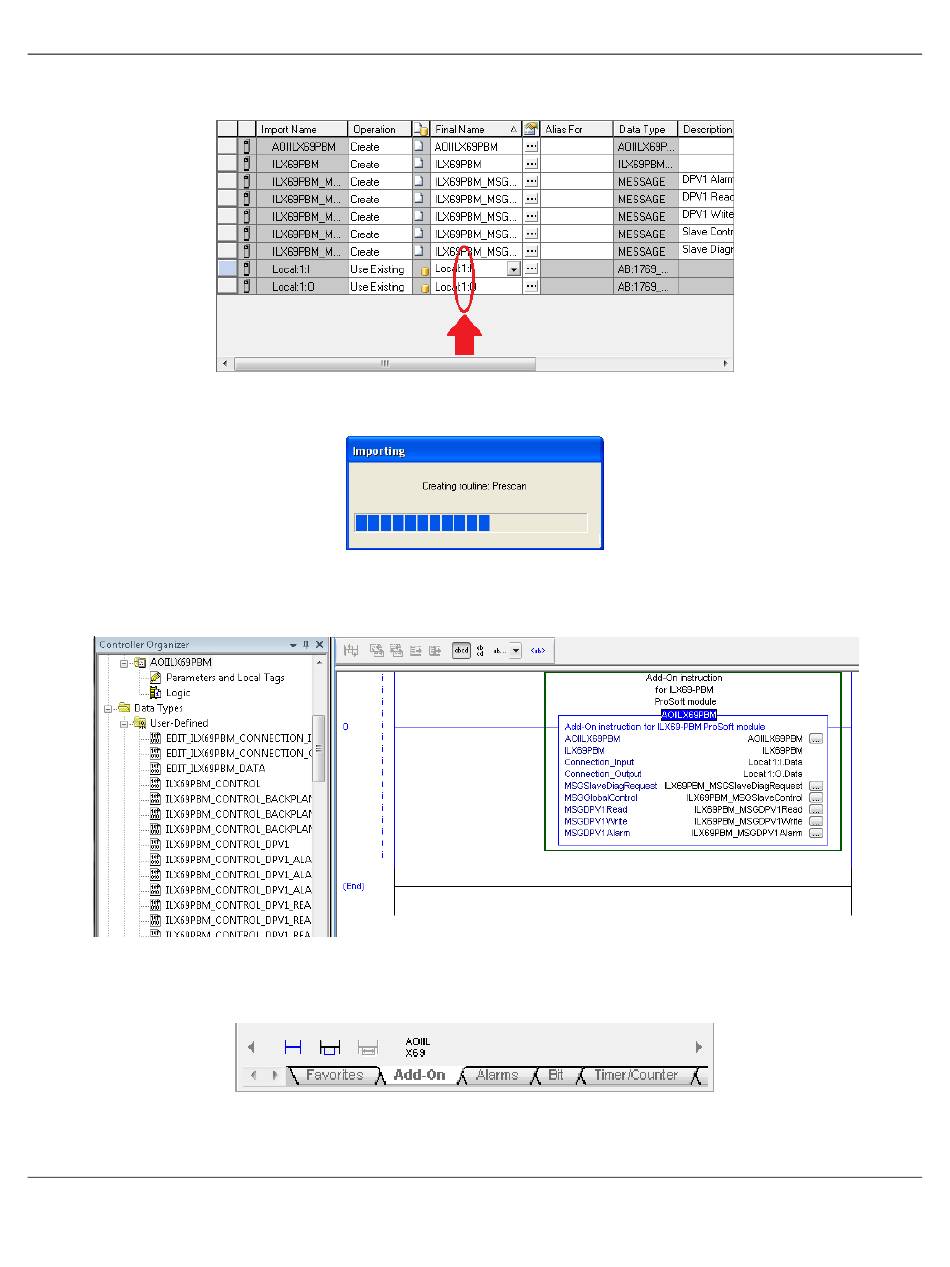

5 Verify that the slot number is correct for the module in the Local:x tags.
6 Click OK to confirm the import.
When the import is completed, the new Add-On Instruction rung will appear in the
ladder.
The procedure has also imported new user-defined data types, controller tags and
the Add-On instruction for your project.
7 Save the project.
ProSoft Technology, Inc.
Configuration and Start-Up
User Manual
Page 33 of 113
