ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module

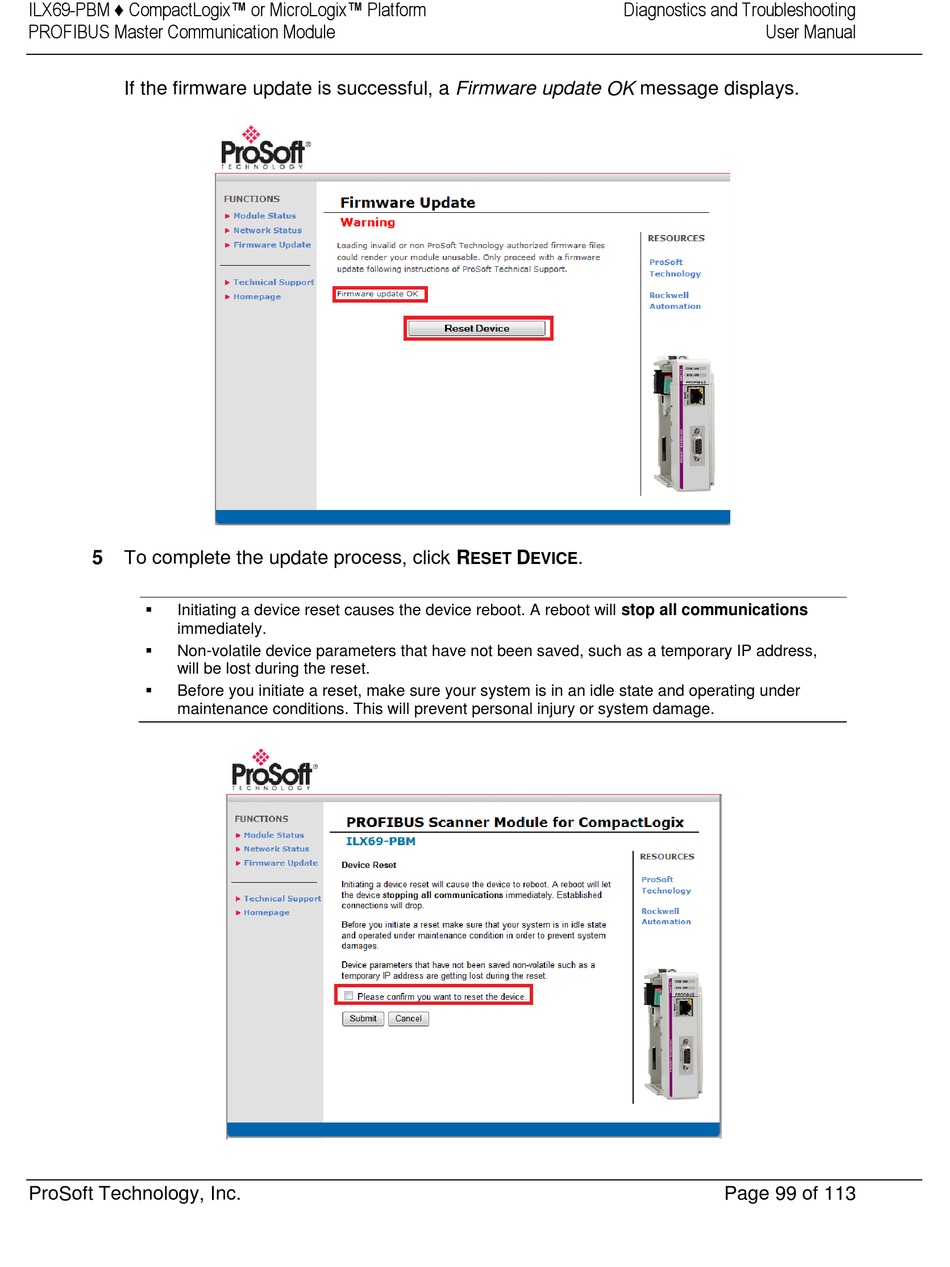

If the firmware update is successful, a Firmware update OK message displays.
5 To complete the update process, click R

Initiating a device reset causes the device reboot. A reboot will stop all communications
immediately.

Non-volatile device parameters that have not been saved, such as a temporary IP address,
will be lost during the reset.

Before you initiate a reset, make sure your system is in an idle state and operating under
maintenance conditions. This will prevent personal injury or system damage.
ProSoft Technology, Inc.
Diagnostics and Troubleshooting
D .
ESET EVICE
User Manual
Page 99 of 113
