Configuration and Start-Up
User Manual
Add-On Instruction Definition
1

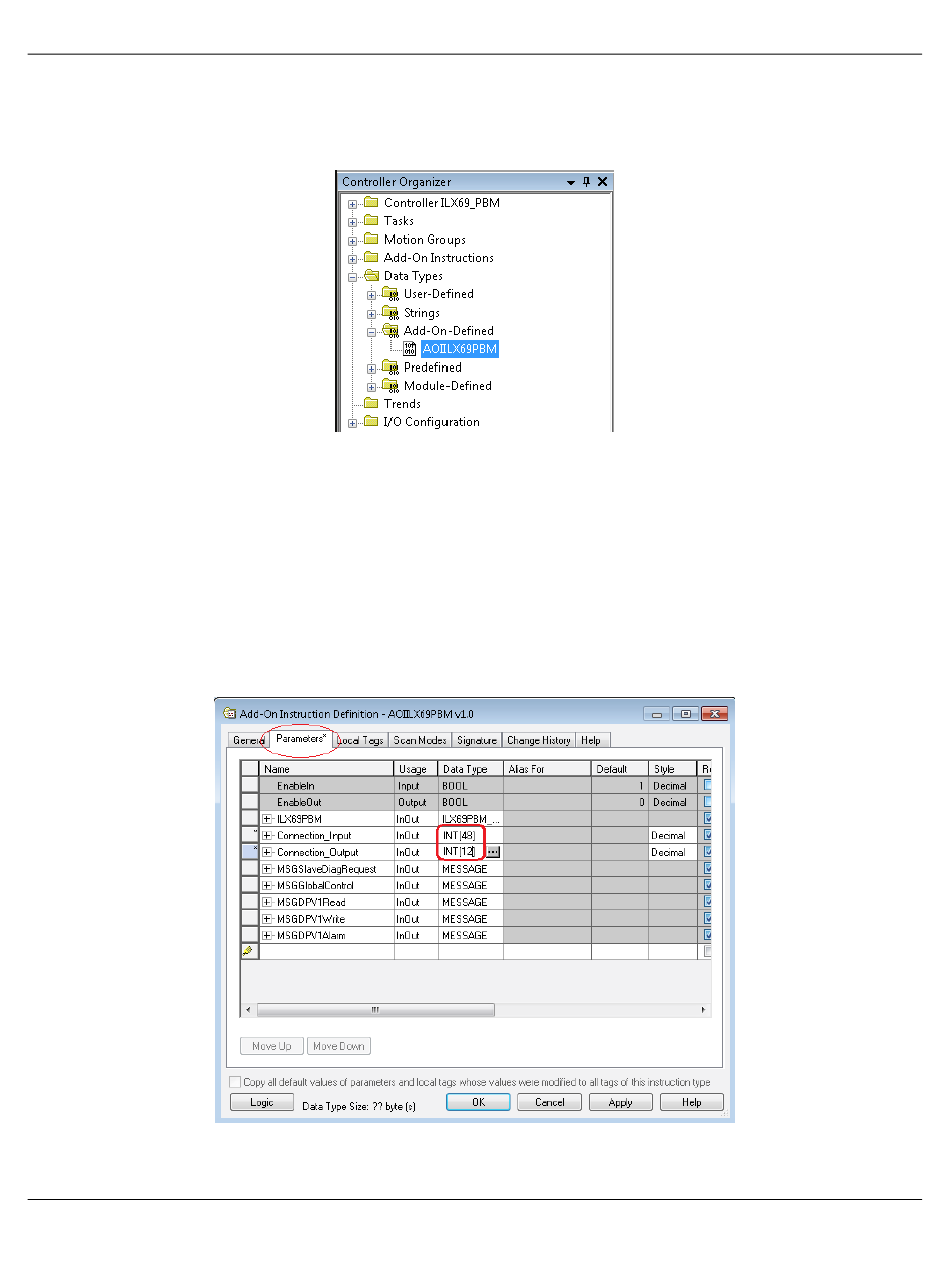

Double-click on the AOIILX69PBM Add-On-Defined Data Type to open the Add-On
Instruction Definition dialog.
2
Under the Parameters tab, edit the Connection_Input Data Type size to the sum of
PROFIBUS Input words + 44.
In the example, there are 8 PROFIBUS input bytes, or (4) 16-bit words: 4 + 44 = 48.
For outputs, edit the Connection_Output Data Type size to the sum of PROFIBUS
Output words + 8.
In the example, there are 8 PROFIBUS output bytes, or (4) 16-bit words: 4 + 8 = 12.
3
Click A
PPLY
Page 50 of 113
, then OK.
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
PROFIBUS Master Communication Module
ProSoft Technology, Inc.
