Removable Memory Card

Memory Card
Type
Maximum storage capacity 4 GByte
Required formatting

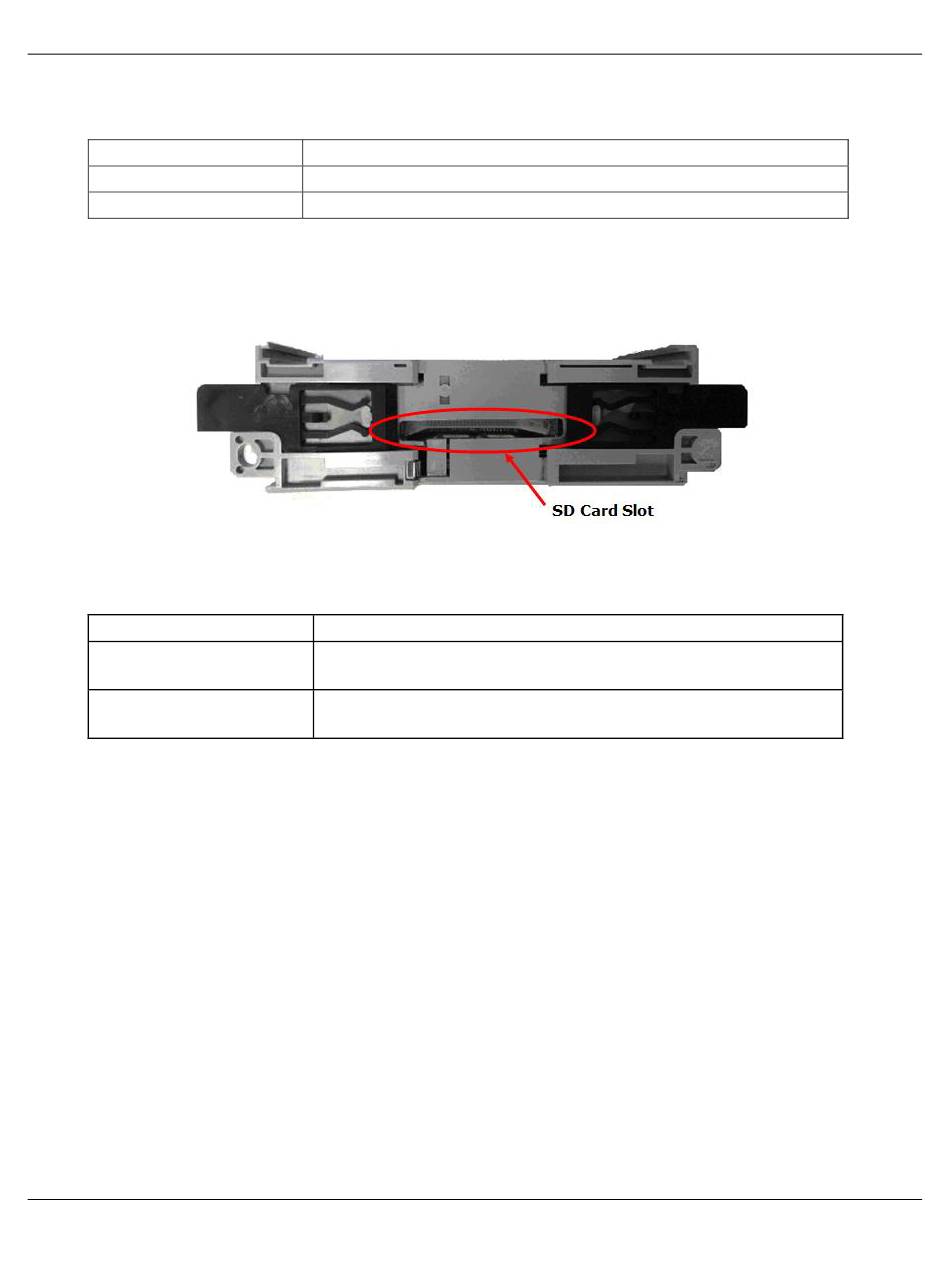

SD Card Connector
SD Card Connector, e.g. FPS009-2405-0 push/push
3.5

Power Supply

Power supply
Current Load
CompactLogix
Backplane power
Page 20 of 113
ILX69-PBM ♦ CompactLogix™ or MicroLogix™ Platform
SD card (HDSC format is not supported)
FAT16 format (no FAT32)
5V from backplane
570 mA Max. @ 5 VDC
Power rating of 2
5 VDC: Min: 4.75 V at Module; Max: 5.40 V at Module
24 VDC: Min: 19.9 V at Module; Max: 26.4 V at Module
