Preface

1

Introduction to the ILX56-PBS

1.1
This manual describes the installation, operation, and diagnostics of the ProSoft
ILX56-PBS PROFIBUS DPV0/DPV1 Slave module.
The ILX56-PBS slots into a 1756 ControlLogix backplane and allows the user to
interface PROFIBUS DP to a ControlLogix controller via the ControlLogix backplane.
The ILX56-PBS can operate as one or more PROFIBUS DPV0/DPV1 Slaves. This
will allow a ControlLogix controller to exchange process, alarming, and diagnostic
data with a PROFIBUS DP Master.
ProSoft Technology, Inc.

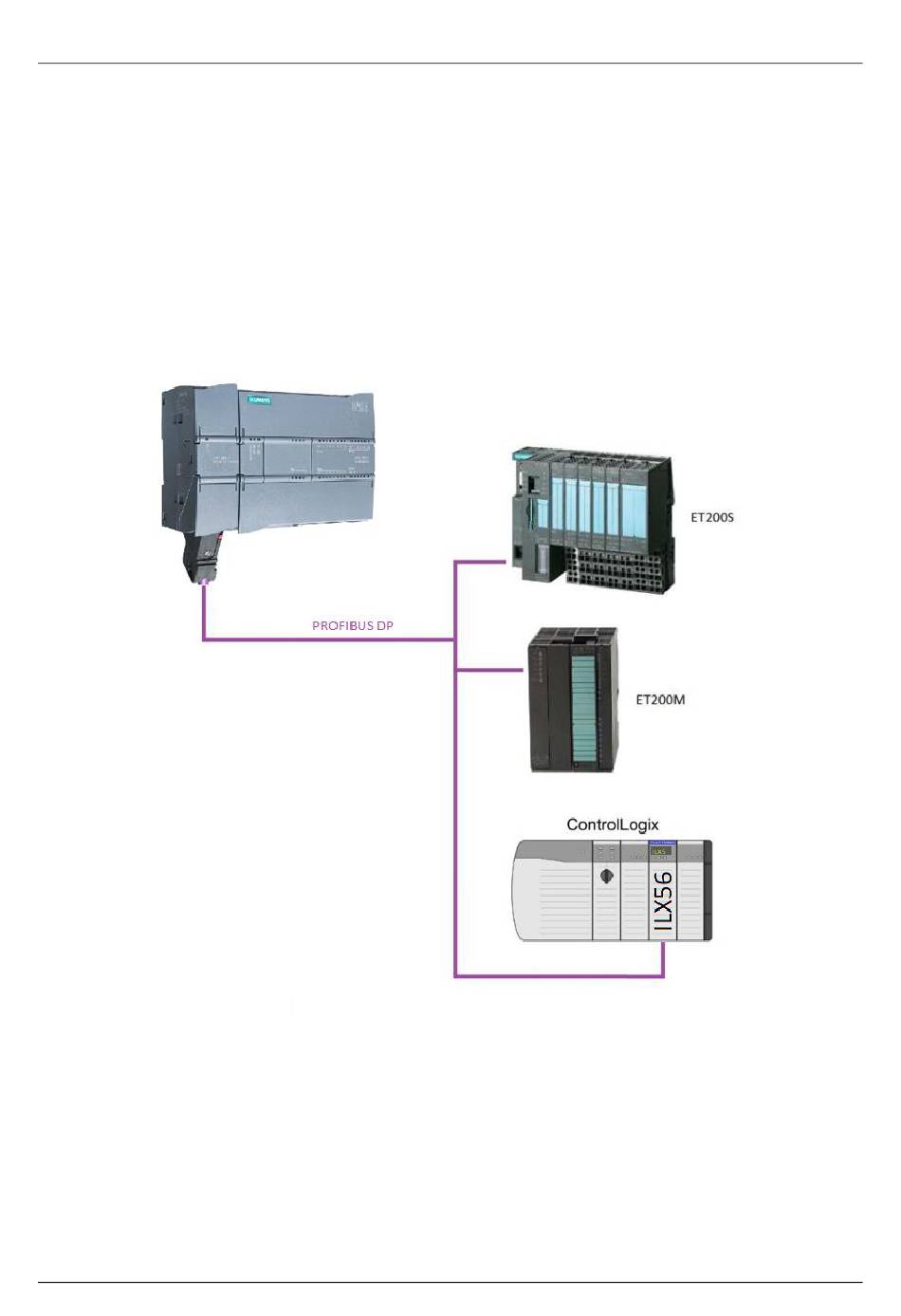

Figure 1.1 – Typical ILX56-PBS PROFIBUS Slave architecture
