Installation and Assembly

5. Installation and Assembly
5.1

Sensor

All components of the sensor are preassembled at the factory.
Refer to the dimensional drawings for the mounting dimensions.
Ensure careful handling during installation and operation.
Damage to or destruction of the sensor
Before connecting the sensor to the power supply and the system computer, mount it on a tripod or robot with the
appropriate mounting adapters.
300 (11.81)
260 (10.24)
340 (13.39)

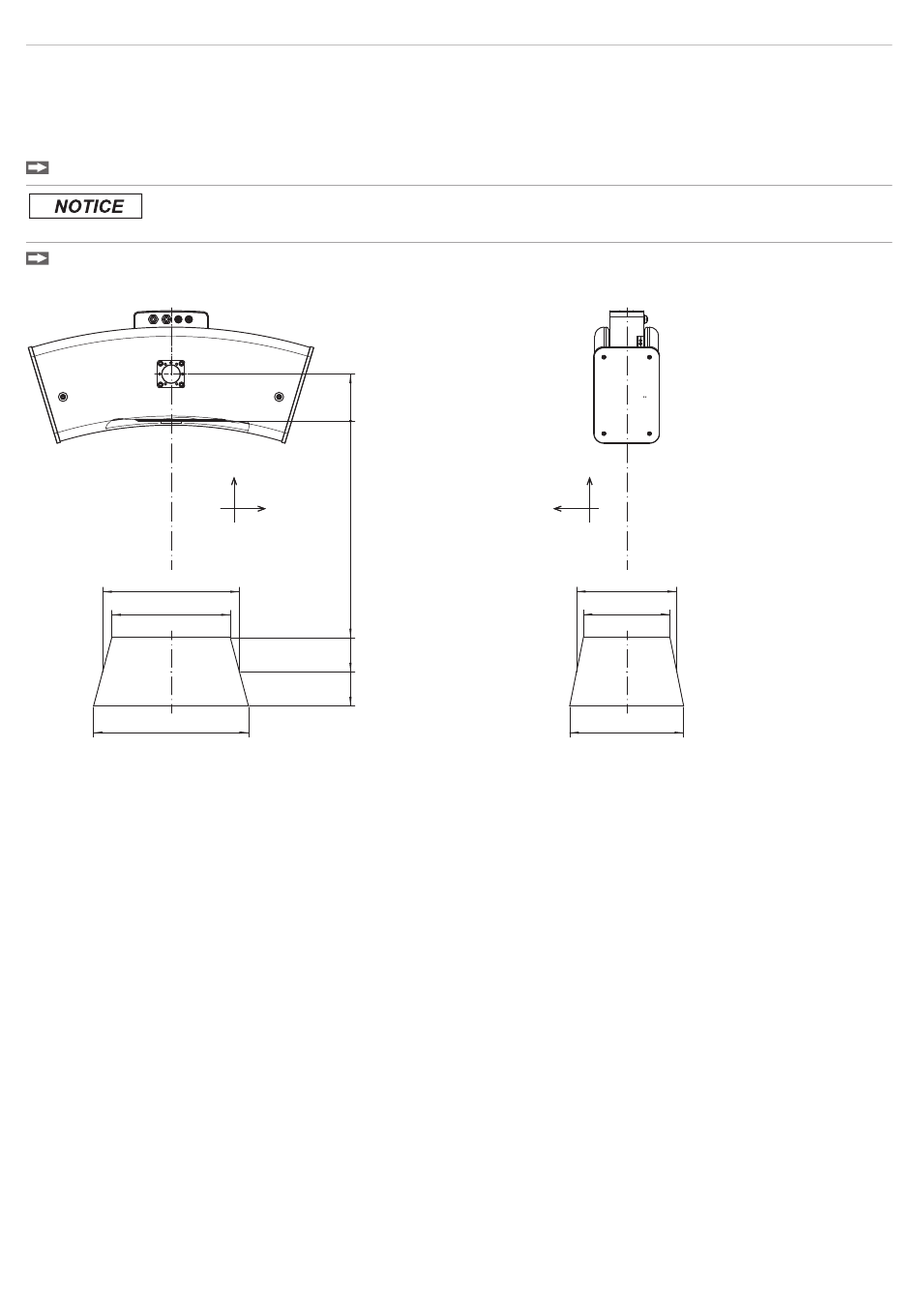

Fig. 5 Dimensional drawing of surfaceCONTROL 3D SC25x0-300 sensor, dimensions in mm (inches)
SMR = Start of measuring range
MMR = Midrange
EMR = End of measuring range
surfaceCONTROL 3D SC2500 / SC2510
103 (4.06)
0
Z
X
475 (18.70)
550 (21.65)
625 (24.61)
Z
Y
220 (8.66)
190 (7.48)
SMR
MMR
EMR
250 (9.84)
Page 13
