Installation and Assembly
5.4.3

surfaceCONTROL 3D 2500 Controller

5.4.3.1

General

All connections for the controller are located on the front.
1
2

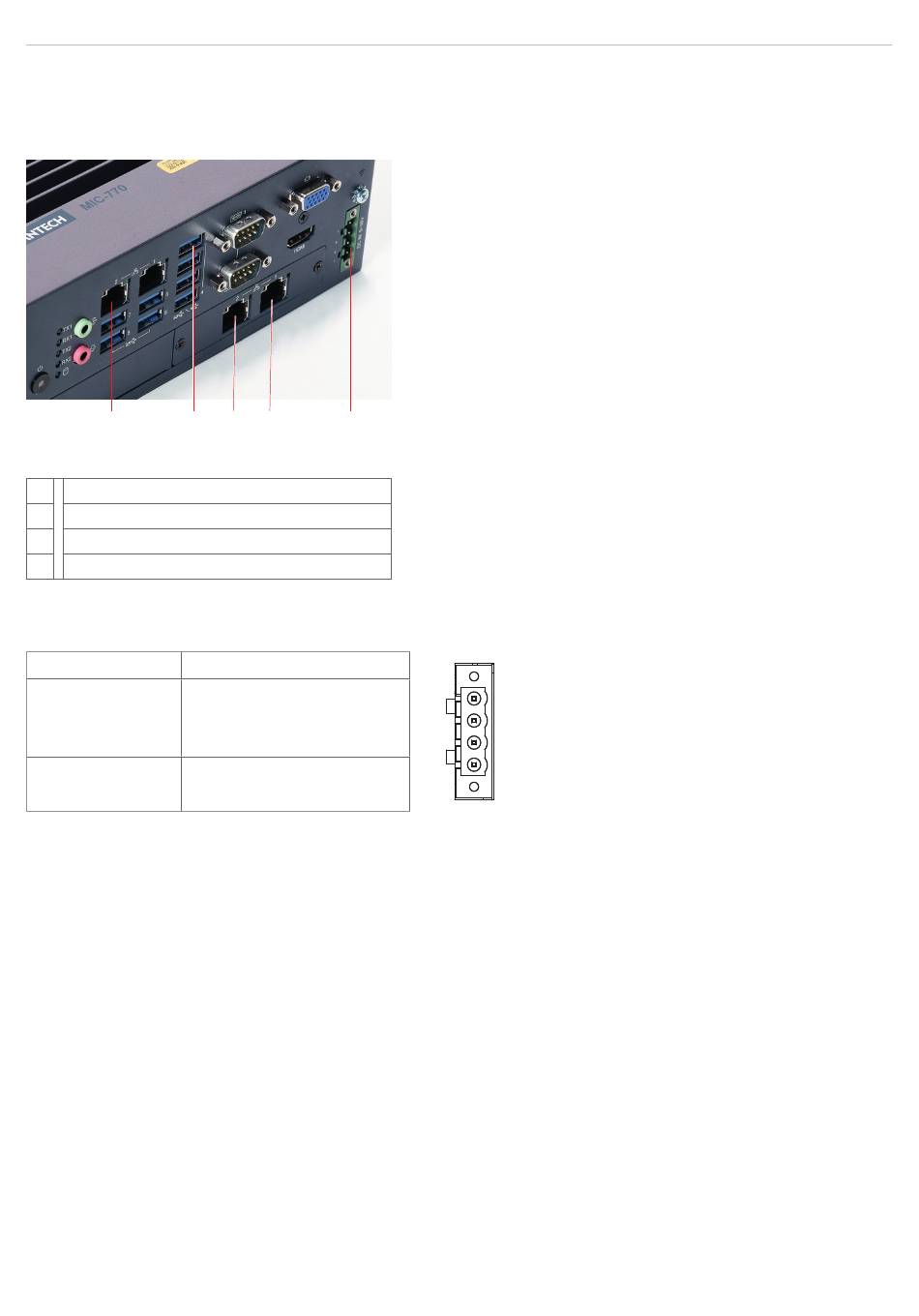

Fig. 16 Rear view of sensor with connectors
1
Ethernet port, PC connection
2
Sensor control
3
Ethernet port Camera 1 and 2
4
Power supply
5.4.3.2

Supply Voltage (Power)

The power supply connection is a 4-pin plug connector.
Pin/Designation
Comment
9 V ... 36 V DC
+
(nominal value 24 V, max.
power consumption 112 W)
-
0 V
Fig. 17 Pin assignment of the power supply connection, view: plug on housing side
The operating voltage is protected against polarity reversal. Use only shielded lines or original cables from the accesso-
ries program for the power supply connection or the outputs.
surfaceCONTROL 3D SC2500 / SC2510
3
3
4
-
+
+
-
Page 20
