Functional Principle, Technical Data
TX1
RX1
TX2
RX2
Power
HDD
LED power
Red
Green
LED HDD
OFF
ON
LED LAN 1 / 2
Link LED (left):
Constant orange
Constant green
OFF
Act LED (right):
Green
OFF
Power button

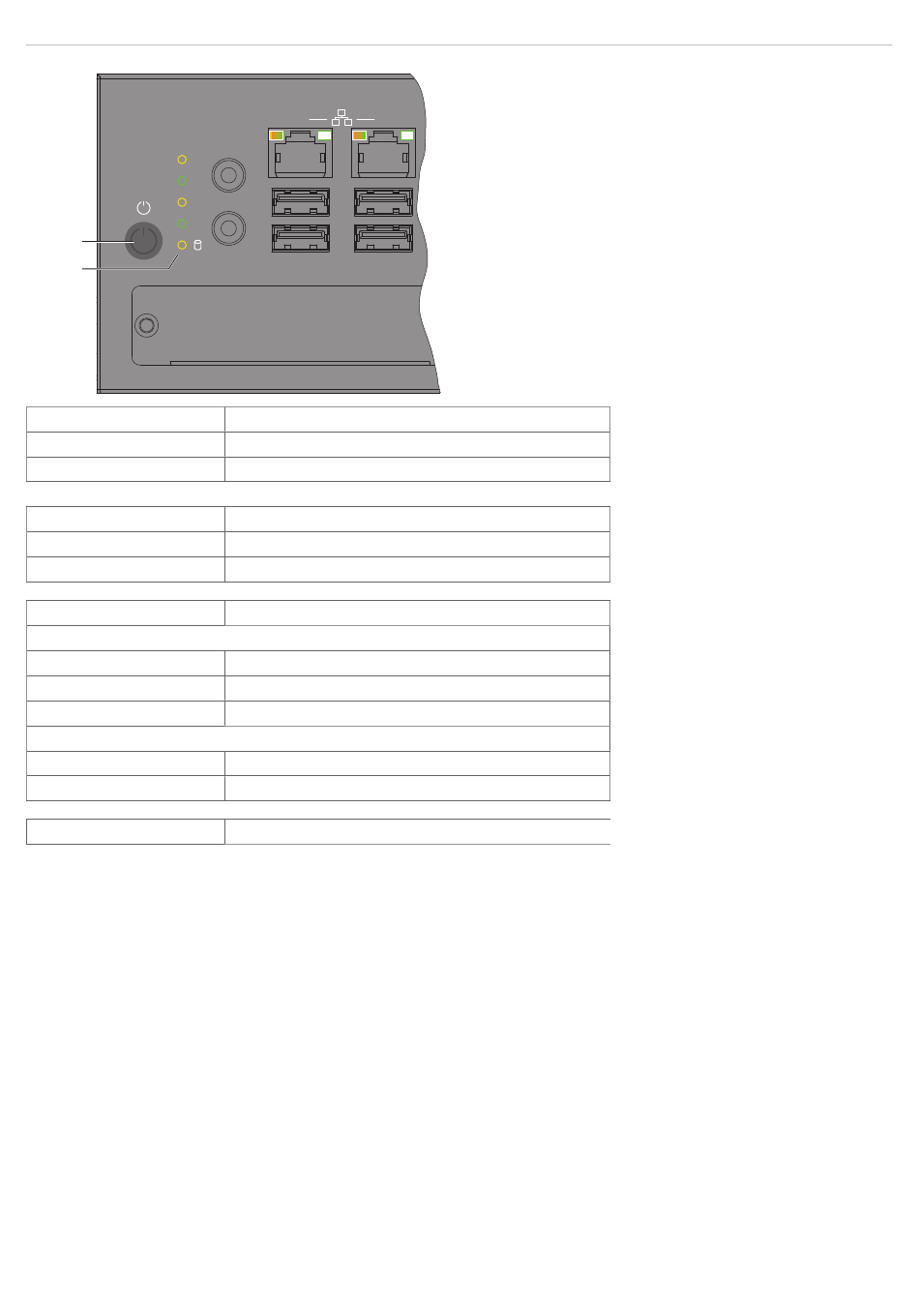

Fig. 4 Controller LEDs, on/off switch
surfaceCONTROL 3D SC2500 / SC2510
2
1
Off, supply voltage available
Ready to use
Meaning
No access to hard drive
Read and write access to hard drive
Meaning
Gigabit Ethernet connection established
100 Mbit Ethernet connection established
10 Mbit Ethernet connection established
Active data transmission
No data transmission
Turns on/off the controller
Page 11
