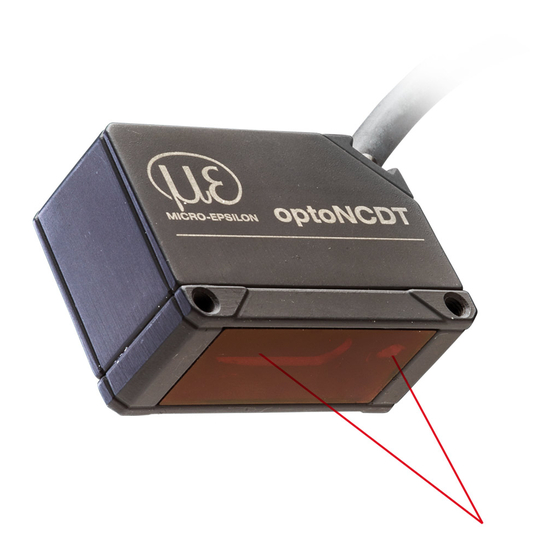

  • Page 1 Operating Instructions optoNCDT 1220 ILD 1220-10 ILD 1220-500 ILD 1220-25 ILD 1220-50 ILD 1220-100 ILD 1220-200...
  • Page 2 Intelligent laser optical displacement measurement MICRO-EPSILON MESSTECHNIK GmbH & Co. KG Königbacher Straße 15 94496 Ortenburg / Germany Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 e-mail info@micro-epsilon.de www.micro-epsilon.com...

  • Page 3: Table Of Contents

    5.1.3 Optimizing the Measuring Accuracy ................... 21 Mounting, Dimensions ..........................22 Indicator Elements at Sensor ........................24 Electrical Connections ........................... 25 5.4.1 Connection Possibilities for Parametrization ................25 5.4.2 Pin Assignment ..........................27 5.4.3 Supply Voltage ..........................28 optoNCDT 1220...
  • Page 4 Output Scaling via Hardware Input ................48 7.5.2.4 Calculation of Measuring Value using Analog Current ..........49 7.5.2.5 Characteristics Distance Value and Analog Output............ 51 7.5.2.6 Zeroing and Teaching Analog Output ................. 53 7.5.3 Switching Output .......................... 54 optoNCDT 1220...
  • Page 5 Import, Export ..........................58 7.6.6 Access Authorization ........................59 Digital Interface RS422 ......................61 Cleaning ..........................61 Liability for Material Defects ....................62 Decommissioning, Disposal ....................62 Service, Repair ........................62 Appendix Optional Accessories ............................. 63 Factory Setting ............................... 64 optoNCDT 1220...
  • Page 6 1220...

  • Page 7: Safety

    Connect the power supply and the display/output device according to the safety regulations for electrical equipment. > Risk of injury > Damage to or destruction of the sensor Avoid shocks and impacts to the sensor. > Damage to or destruction of the sensor optoNCDT 1220 Page 7...

  • Page 8: Notes On Ce Marking

    Avoid exposure of sensor to aggressive media (detergents, cooling emulsions). > Damage to or destruction of the sensor Notes on CE Marking The following apply to the optoNCDT 1220: - EU Directive 2014/30/EU - EU Directive 2011/65/EU, “RoHS“ category 9 Products which carry the CE mark satisfy the requirements of the EU directives cited and the European harmonized standards (EN) listed therein.

  • Page 9: Intended Use

    Safety Intended Use - The optoNCDT 1220 system is designed for use in industrial and laboratory applications. - It is used ƒ for measuring displacement, distance, position and thickness ƒ for in-process quality control and dimensional testing - The sensor must only be operated within the limits specified in the technical data, see Chap.

  • Page 10: Laser Class

    Laser Class Laser Class The optoNCDT 1220 sensors operate with a semiconductor laser with a wavelength of 670 nm (visible/red). The sensors fall within Laser Class 2 (II). The laser is operated on a pulsed mode, the average power is ≤ 1 mW. The pulse frequency depends on the adjusted measuring rate (0.25 ... 1 kHz). The pulse duration ...
  • Page 11 Fig. 3 True reproduction of the sensor with its actual location of the warning labels, ILD 1220 If both warning labels are covered over when the unit is installed the user must ensure that supplemen- tary labels are applied. optoNCDT 1220 Page 11...

  • Page 12: Functional Principle, Technical Data

    Functional Principle, Technical Data Short Description The optoNCDT 1220 uses the principle of optical triangulation, that is, a visible, modulated point of light is projected onto the target surface. The diffuse part of the reflection of this point of light is displayed depending on distance on a position-resolv- ing element (CMOS) by an receiver optic which is arranged to the optical axis of the laser beam in a defined angle.

  • Page 13: Auto Target Compensation (Atc)

    Functional Principle, Technical Data Auto Target Compensation (ATC) The Auto Target Compensation (ATC) enables stable compensation independent of color and brightness of the measuring object. Also small objects can be detected reliably thanks to the small measuring spot. optoNCDT 1220 Page 13...

  • Page 14: Technical Data

    2 in accordance with IEC 60825-1: 2014 20,000 lx 7,500 lx Permissible ambient light Supply voltage 11…30 VDC Power consumption < 2 W (24 V) Analog output 4 ... 20 mA (freely scalable within the measuring range) optoNCDT 1220 Page 14...
  • Page 15 FSO = full scale output, SMR = start of measuring range, MMR = mid of measuring range, EMR = end of measuring range 1) Factory setting 1 kHz; modifying the factory settings requires the IF2001/USB converter (optionally available) 2) Measuring rate 1 kHz, median 9 3) Illuminant: light bulb 4) Connection to PC via IF2001/USB (optionally available) optoNCDT 1220 Page 15...

  • Page 16: Delivery

    If there is damage or parts are missing, immediately contact the manufacturer or supplier. See Appendix for further accessories, see Chap. Storage Storage temperature: -20 up to +70 °C (-4 °F up to +158 °F) Humidity: 5 - 95 % (non-condensing) optoNCDT 1220 Page 16...

  • Page 17: Installation

    5.1.2.1 Light from other Sources Thanks to their integrated optical interference filters the optoNCDT 1220 sensors offer outstanding perfor- mance in suppressing light from other sources. However, this does not preclude the possibility of interference from other light sources if the objects being measured are shiny and if lower measuring rates are selected.

  • Page 18: Color Differences

    If the objects being measured are fast moving and the measuring rate is low, it is possible that movement blurs may result. Always select a high measuring rate for high-speed operations, therefore, in order to prevent errors. optoNCDT 1220 Page 18...

  • Page 19: Surface Roughness

    Ceramic reference surface Structured surface Recommendation for parameter choice: - The averaging number should be selected in such a way that a surface area the size of which is compa- rable to those with mechanical measurements is averaged. optoNCDT 1220 Page 19...

  • Page 20: Angle Influences

    These influences have to be explicitly considered when scanning profiled surfaces. Basically the angle be- havior of triangulation is liable to the reflectivity of the measuring object surface. X-axise Y-axis Angle Fig. 6 Measurement errors through tilting with diffuse reflection optoNCDT 1220 Page 20...

  • Page 21: Optimizing The Measuring Accuracy

    In case of bore holes, blind holes and edges in the surface of moving targets the sensor must be arranged in such a way that the edges do not obscure the laser spot. incorrect correct (shadow) Fig. 8 Sensor arrangement for holes and ridges optoNCDT 1220 Page 21...

  • Page 22: Mounting, Dimensions

    Installation Mounting, Dimensions The optoNCDT 1220 sensor is an optical system for measurements with micrometer accuracy. The laser beam must be directed perpendicularly onto the surface of the target. In case of misalignment it is possible that the measurement results will not always be accurate.
  • Page 23 EMR = End of measuring range their reflections FSO = Full scale output (.08) (.31) Fig. 10 Dimensional drawing and free space for optics and optical free space A: 2x M3 for direct fastening or 2x M2 for bolt connection optoNCDT 1220 Page 23...

  • Page 24: Indicator Elements At Sensor

    The programmable touch key select calls up the functions Reset, Teaching or zeroing. By factory default this key is only active for the first 5 minutes after power up. After that it will be automatically locked. optoNCDT 1220 Page 24...

  • Page 25: Electrical Connections

    The different periphery devices can be connected to the sensor by the illustrated connections, see Fig. 11. The converters IF2001/ USB and IF2004/USB also supply the operating voltage (24 V DC) of the sensor. Power to the converters is supplied e. g. by the op- tional power supply PS 2020. optoNCDT 1220 Page 25...
  • Page 26 SPS, ILD 1220 or the like Functional input: trigger Switch, key, PLC or the like Switching input laser On/Off Fig. 12 Max. sensor channels on the peripheral devices 1) The digital interface is used for sensor parametrization only. optoNCDT 1220 Page 26...

  • Page 27: Pin Assignment

    4 ... 20 mA Load = 500 Ohm: U 2 ... 10 V with U > 17 V Load blue Ground potential Supply and signal ground Shield Connector housing Sensor housing Connect with potential equalization optoNCDT 1220 Page 27...

  • Page 28: Supply Voltage

    11 ... same time. 30 VDC ILD1220 MICRO-EPSILON recommends using an optional available power supply unit PS2020 for the sensor. blue Ground Fig. 13 Connection of supply voltage 5.4.4...

  • Page 29: Rs422 Connection With Usb Converter If2001/Usb

    1 ... 5 V at U > 11 V 11... white 100 nF R = 500 Ohm: 30 VDC blue 2 ... 10 V at U > 17 V blue Fig. 16 Wiring for voltage output optoNCDT 1220 Page 29...

  • Page 30: Multifunctional Input

    Wire color ILD1220 24V logics (HTL): Low level≤ 2 V High level≥ 8 V (max 30 V), Internal pull up resistance, an open violet input is noticed as High. Connect the input with GND to trigger the function. blue Fig. 17 Electrical wiring for multifunctional input optoNCDT 1220 Page 30...

  • Page 31: Digital Output

    PNP (High side) appr. GND Push-Pull Push-Pull, negated Fig. 19 Switching characteristic digital output The digital output is activated when measuring object is missing, measuring object too close/too far or when no valid measurement value can be determined. optoNCDT 1220 Page 31...

  • Page 32: Sensor Cable

    (control cabinet, PC housing) and avoid ground loops. Never lay signal leads next to or together with power cables or pulse-loaded cables (e.g. for drive units and solenoid valves) in a bundle or in cable ducts. Always use separate ducts. Recommended strand cross-section for self-made connection cables: ≥ 0.14 mm² (AWG 25). optoNCDT 1220 Page 32...

  • Page 33: Operation

    Operation Getting Ready for Operation Install and assemble the optoNCDT 1220 in accordance with the instructions set out, see Chap. Connect the sensor with the indicator or monitoring unit and the power supply. The laser diode in the sensor can only be activated if at the input Laser on/off Pin 8 is connected with Pin 12, see Chap.

  • Page 34: Parameterizing Via Web Interface

    The sensor is connected to a PC/notebook via a RS422 converter, supply voltage persists. Start the program SensorFinder V2.1x.x. Fig. 20 Auxiliary program for sensor search and to start web interface The tool searches for connected ILD 1220 sensors on available interfaces. optoNCDT 1220 Page 34...

  • Page 35: Access Via Web Interface

    The sensor is active and sup- ply measurements with a low output rate. Fig. 21 First interactive web- site after selection of the web interface optoNCDT 1220 Page 35...
  • Page 36 The area System configuration displays the current settings e. g. for unit and access authorization in blue lettering. After programming all the settings are to be stored permanently in a set of parameters. The next time you turn on the sensor they are available again. Therefore use the button Save settings. optoNCDT 1220 Page 36...

  • Page 37: Timing, Measurement Value Flux

    Operation Timing, Measurement Value Flux The sensor requires three cycles for measurement and calculation without triggering: Each cycle takes 1000 μs at a measuring rate of 1 kHz. The measured value N is available at the output after  three cycles. The delay between acquisition and output is therefore 3000 μs. As the processing in the cycles  occurs parallel, after another 1000 μs, the next measured value (N+1) is output. optoNCDT 1220 Page 37...

  • Page 38: Set Sensor Parameter

    If you do not save the programming permanently in the sensor, you lost the settings after turning off the sensor. Overview Parameter The following parameters can be set or changed in the optoNCDT 1220, see tab Settings. Inputs Multifunction input, Key function...

  • Page 39: Inputs

    After zero setting, the sensor will provide new readings relative to the measurement value during zero setting. Zeroing requires that a target is within the measurement range. Zeroing has an influence on the analog and digital output. optoNCDT 1220 Page 39...

  • Page 40: Zeroing With Select Key

    Fig. 23 Flow chart for the return of zero setting 1) The key Select remains without effect since key lock is active. 2) The zeroing is not applied when LED State is red, flash frequency 8 Hz for 2 s. optoNCDT 1220 Page 40...

  • Page 41: Zeroing With Hardware Input

    The function zeroing can be applied successive in several times. Between repeating the zeroing function a pause of 1 s is required. The zeroing function can also be combined with the select key. 1) The zeroing is not applied when LED State is red, flash frequency 8 Hz for 2 s. optoNCDT 1220 Page 41...

  • Page 42: Signal Processing

    If no valid measurement value can be detected, an error is output. If this disrupts further processing, you can alternatively hold the last valid value over a specific period of time i.e. it can be output again. After expiry of the chosen number an error value is output. optoNCDT 1220 Page 42...

  • Page 43: Triggering

    Triggering 7.4.4.1 General The optoNCDT 1220 measurement output is controllable through an external trigger signal or a command. Triggering affects the analog and digital output. The measurement value at the time of triggering is output delayed, see Chap. 6.3. - Triggering does not influence the measuring rate resp. the timing so that between the trigger event (level change) and the start of output always lie 3 cycles + 1 cycle (Jitter).

  • Page 44: Value Output Trigger

    Measurement values are calculated continuously and independently of the trigger event. A trigger event simply triggers the value output via a digital interface. Therefore, any values measured immediately before the trigger event are included in calculating mean values (averages). optoNCDT 1220 Page 44...

  • Page 45: Outputs

    1) The digital interface is used for sensor parametrization only. The measurement values are output in parallel both via the analog output and with low output rate via the web interface. optoNCDT 1220 Page 45...

  • Page 46: Analog Output Scaling

    - to close to the sensor - beyond SMR or Teach 2 Teach 1 - to far from the sensor - beyond EMR. LED State Error Error Measuring object Fig. 28 Default characteristic (black), reverse, within range Switching user defined characteristic (red) output optoNCDT 1220 Page 46...

  • Page 47: Output Scaling With Key Select

    If the key Select is pressed longer than 10 s or not within the timeframe while doing the return of the output scaling, an error is shown via State LED. In this case the State LED is blinking red with 8 Hz for 2 s. optoNCDT 1220 Page 47...

  • Page 48: Output Scaling Via Hardware Input

    200 ms t 5 - t 3 = 2 s Error  5 min 5 ... <10 s t 3 t 4 Fig. 32 Flow chart for the return of output scaling optoNCDT 1220 Page 48...

  • Page 49: Calculation Of Measuring Value Using Analog Current

    = current [mA] [4; 20] measuring range [>20; 20,2] EMR reserve [mA] - 4) [mm] [mm] - m [mm]| MR = measuring range [mm] {10/25/50/100/200/500} m, n = teachig area [mm] [0; MR] = distance [mm] [m; n] optoNCDT 1220 Page 49...
  • Page 50 [>20; 20,2] EMR reserve [mm] * |n [mm] - m [mm]| MR = measuring range [mm] {10/25/50/100/200/500} = zero position [mm] [0; MR] m, n = teaching area [mm] [0; MR] = distance [mm] [m; n] optoNCDT 1220 Page 50...

  • Page 51: Characteristics Distance Value And Analog Output

    3.00 mA 4.00 mA 18.40 mA Analog maximum reached at 66 % MR Analog minimum reached at 10 % MR MR = measuring range, SMR = start of measuring range, EMR = end of measuring range optoNCDT 1220 Page 51...
  • Page 52 18.40 mA Out max (30 mm) (-15 mm) (30 mm) 12 mA Out min 4 mA 3.8 mA 16 % 50 % 60 % 100 % Reserve measuring range Fig. 33 Analog output with zero setting optoNCDT 1220 Page 52...

  • Page 53: Zeroing And Teaching Analog Output

    50 mm -10 mm 0 mm 10 mm SMR’ 60 % EMR’ 100 % MR Fig. 34 Analog output characteristic after zero setting and scaling with an ILD1220-50 -10.0 mm 10.00 mm 4.00 mA 20.00 mA optoNCDT 1220 Page 53...

  • Page 54: Switching Output

    EMR = End of measuring range = Limit value = Hysteresis value SMR = Start of measuring range Switching output Fig. 35 Switching output with function limit value, switching behavior (NPN) optoNCDT 1220 Page 54...

  • Page 55: System Settings

    Active The key Select is deactivated indepen- Dark-bordered dent of the user level. fields require you Inactive The key Select is active independent of Value to specify a value. the user level. optoNCDT 1220 Page 55...

  • Page 56: Load, Save

    , e.g. The dialog Setup management The dialog Setup management rubber 1.05 and click opens. opens. the button Save. Click on the button Load. Click on the button Favorite. optoNCDT 1220 Page 56...
  • Page 57 The dialog Setup management opens. Click on the button Search. Click on the button Export. A Windows dialog for file selections opens. Choose the desired file and click on the button Open. Click the button Import in the setup management. optoNCDT 1220 Page 57...

  • Page 58: Import, Export

    Download. file. File name for the following example is <...\ Downloads\ILD1220_50BASICSETTINGS_ MEASSETTINGS_SCHALE_T1...SETTING_ Rubber 1.05.JSON> A security query, see adjacent figure, helps to avoid that an existing setup is inadvertently overwritten during import. optoNCDT 1220 Page 58...

  • Page 59: Access Authorization

    Type in the default password 000 or a user-defined password in the Password field and confirm with Login. Change with a click on the Logout button in the mode user. Fig. 39 Change in the professional user level optoNCDT 1220 Page 59...
  • Page 60 Specifies the user level, with which the sensor starts after the re- restarting Professional starting. For this purpose, MICRO-EPSILON recommends the selection user. After configuration of the sensor the password protection is to be activated. Please note the password for later reference.

  • Page 61: Digital Interface Rs422

    Therefore an optics anti-static brush is suitable or bleeding the screen with dehumidified, clean and oil-free compressed air. Wet Cleaning For cleaning the protective screen use a clean, soft, lint-free cloth or lens cleaning paper with pure alcohol (isopropyl). Never use standard glass cleaner or other cleaning agents. optoNCDT 1220 Page 61...

  • Page 62: Liability For Material Defects

    The liability for material defects is 12 months from delivery. Within this period, defective parts, except for wearing parts, will be repaired or replaced free of charge, if the device is returned to MICRO-EPSILON with shipping costs prepaid. Any damage that is caused by improper handling, the use of force or by repairs or modifications by third parties is not covered by the liability for material defects.

  • Page 63: Appendix

    IF2004/USB 1 channel converter RS422 to USB inclusive driver, connections: 1× terminal block PS2020 Power supply for mounting on DIN rail, input 230 VAC, output 24 VDC/2.5 A 1) One channel with ILD 1220 possible only. optoNCDT 1220 Page 63...

  • Page 64: Factory Setting

    (t ... t key is released while the LED State is flashing yellow Dt = t ; Dt (key press period) must be at least 10 sec., max. 15 sec. optoNCDT 1220 Page 64...
  • Page 66 MICRO-EPSILON MESSTECHNIK GmbH & Co. KG X9751406-A011069MSC Königbacher Str. 15 · 94496 Ortenburg / Germany MICRO-EPSILON MESSTECHNIK Tel. +49 (0) 8542 / 168-0 · Fax +49 (0) 8542 / 168-90 *X9751406-A01* info@micro-epsilon.de · www.micro-epsilon.com...
