A 2.1 Drawings of Mounting Adapter
A 2.1.1 X95/Dovetail Mounting Adapter
The X95/dovetail mounting adapter is used to mount the sensor on a quick release plate with a dovetail profile of size
050/87 or to the profile system X95 of the manufacturer Linos (Qioptiq).

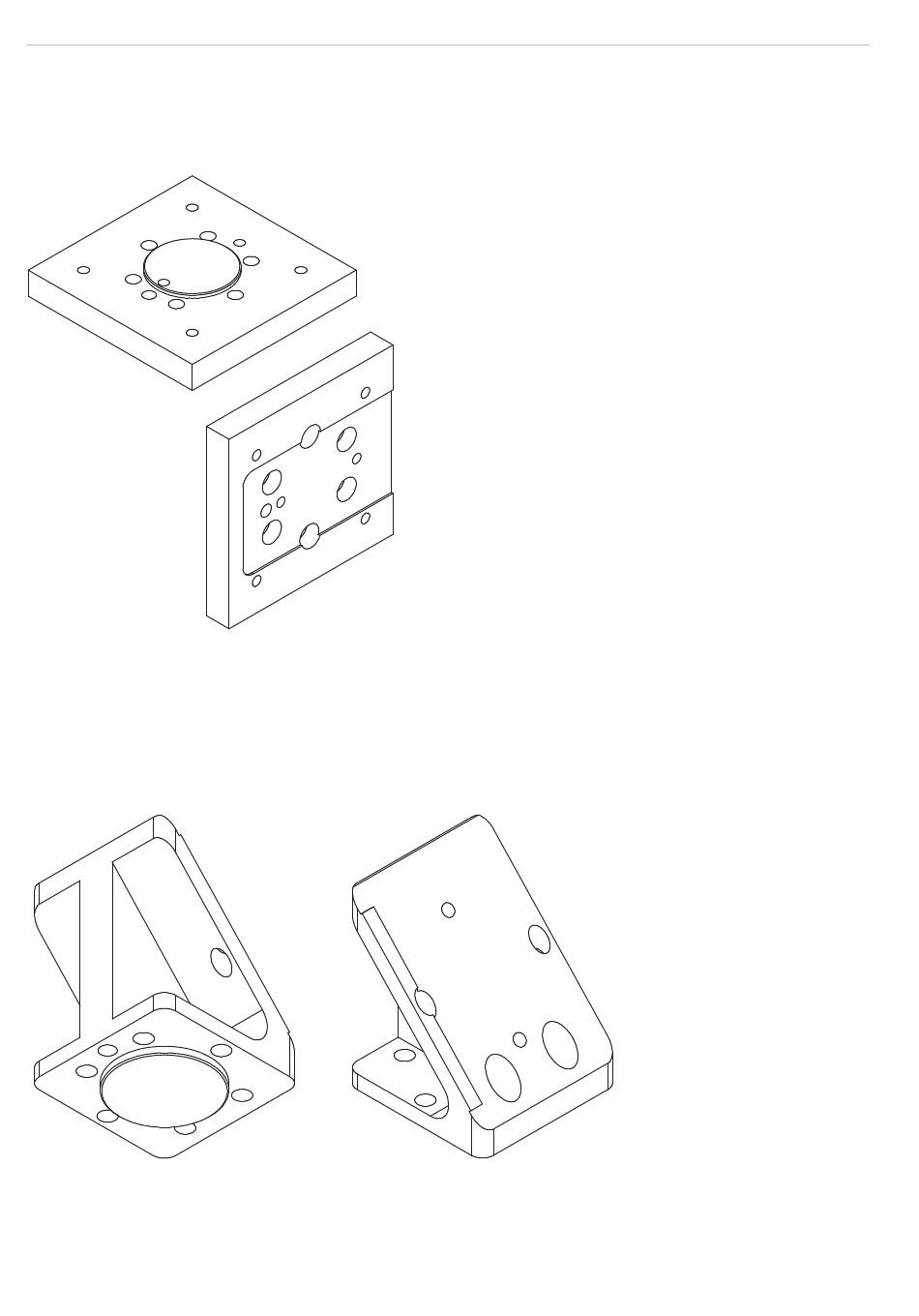

Fig. 29 View of X95/dovetail mounting adapter
The outer dimensions of the adapter are 95 mm x 95 mm x 15 mm.
A 2.1.2 47° Dovetail Mounting Adapter
The 47° dovetail mounting adapter is used to mount the sensor on a quick release plate with a dovetail profile of size
050/87. The adapter is an adjustment for the operation of the sensor with a 43° 2-way ball tilt head. The adapter angle of
47° allows to directly align the sensor perpendicular to the ground.
Fig. 30 View of 47° dovetail mounting
adapter from below (sensor side)
The outer dimensions of the adapter are 60 mm x 60 mm x 76.6 mm.
surfaceCONTROL 3D SC2500 / SC2510
Fig. 31 View of 47° dovetail mounting
adapter from above (tripod side)
