Installation and Assembly
4.
Installation and Assembly
4.1
Precautions
No sharp or heavy objects should be allowed to affect the cable sheath.
Protect the cable from compressive stress in regions exposed to higher pressure
Avoid folding the cables.
Check the plug connections for a tight fit.
4.2
Sensor
During installation, take care that the polished sensor front face is not scratched.
Screwed connection from top
Sensor active measuring area
capaNCDT 61x4
The flat sensors are mounted using a threaded bore for M2 (for 0.2
and 0.5 mm sensors) or using a through-hole for M2 screws. The
sensors can be screwed on from above or below.

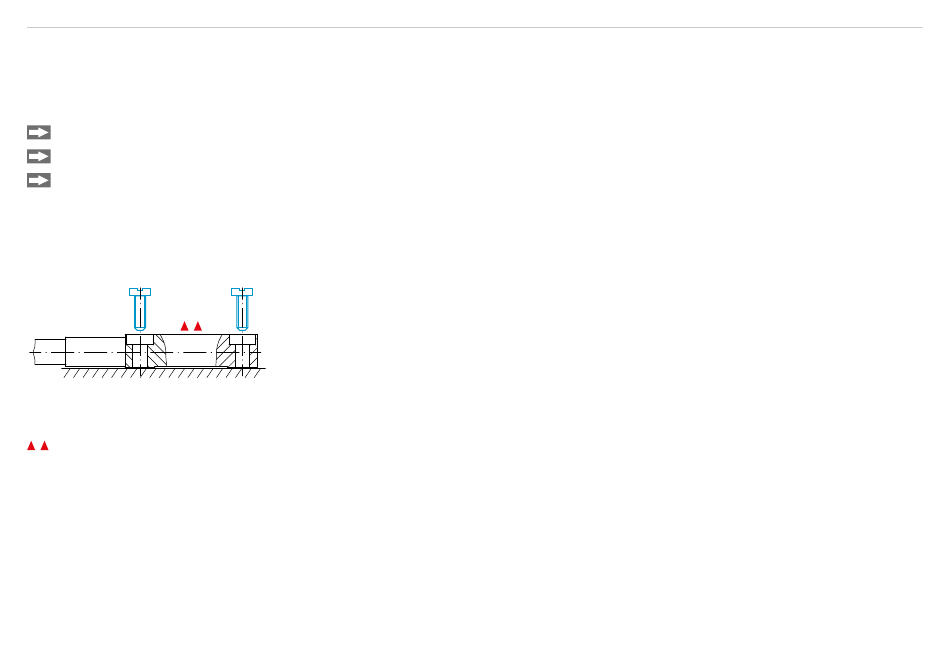

Fig. 7 Installing the flat sensors
Page 16
